Power Transformer
POWER:1W-50W
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. Capacity up to 12.0VA
2. Non short-circuit-proof at temperature class ta 70 /B
3. Excellent temperature fluctuation resistance properties
4. High electrical safety and long service-life features
5. High voltage resistance
6. Certified item quality tested

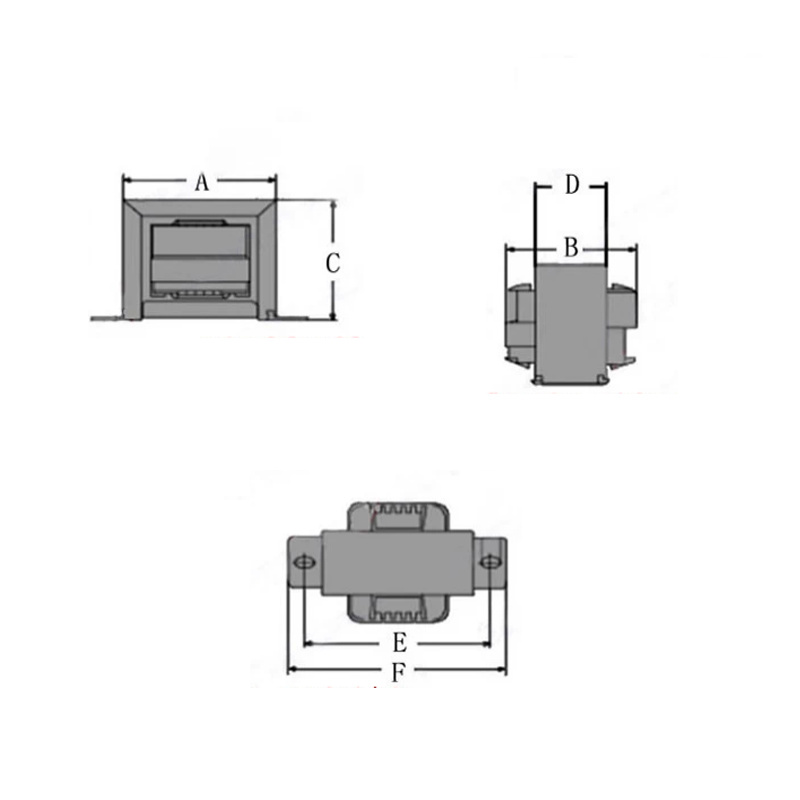

| EI POWER TRANSFORMER DATA DETAILS |
| |
| POWER | FERRITE CORE | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | WEIGHT(kg) |
| 1W | EI 28*14 | 30 | 25 | 27 | 15 | 42 | 52 | 0.06 |
| 2W | EI 35*15 | 37 | 33 | 32 | 17 | 47 | 58 | 0.12 |
| 3W | EI 41*15 | 43 | 36 | 36 | 17 | 54 | 64 | 0.18 |
| 5W | EI 41*20 | 43 | 41 | 36 | 22 | 56 | 67 | 0.22 |
| 8W | EI 48*20 | 50 | 40 | 44 | 22 | 61 | 75 | 0.3 |
| 10W | EI 48*24 | 50 | 45 | 44 | 26 | 61 | 74 | 0.36 |
| 13W | EI 48*28 | 50 | 50 | 44 | 30 | 61 | 74 | 0.4 |
| 15W | EI 57*25 | 60 | 51 | 51 | 27 | 72 | 85 | 0.52 |
| 20W | EI 57*30 | 60 | 56 | 51 | 32 | 72 | 88 | 0.62 |
| 25W | EI 57*35 | 60 | 61 | 51 | 37 | 72 | 90 | 0.82 |
| 30W | EI 66*28 | 69 | 54 | 57 | 30 | 80 | 94 | 0.81 |
| 40W | EI 22*38 | 70 | 63 | 57 | 40 | 82 | 95 | 1 |
| 50W | EI 66*44 | 70 | 74 | 57 | 46 | 83 | 98 | 1.16 |
