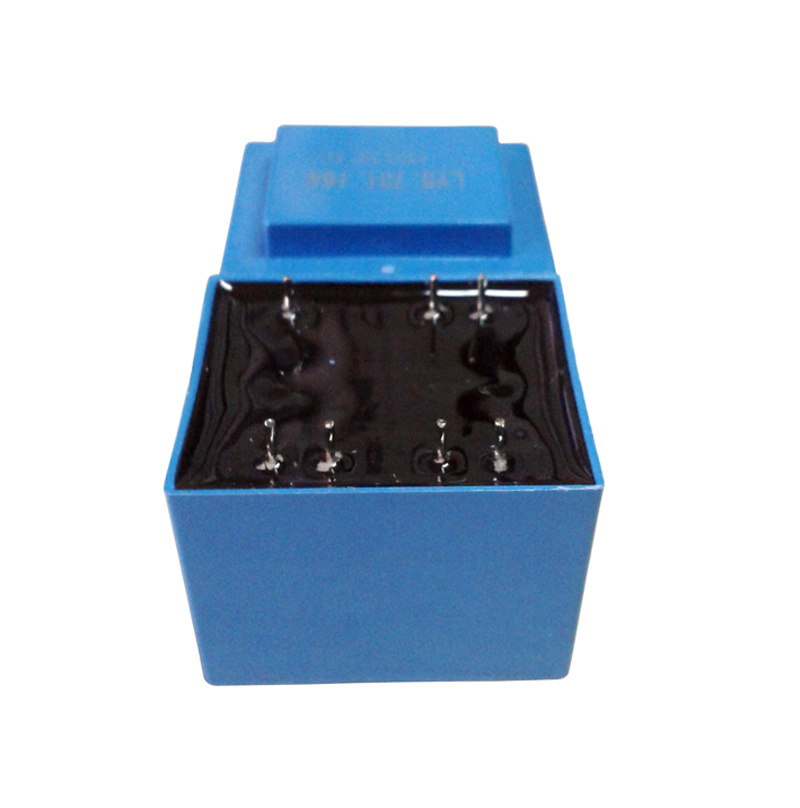

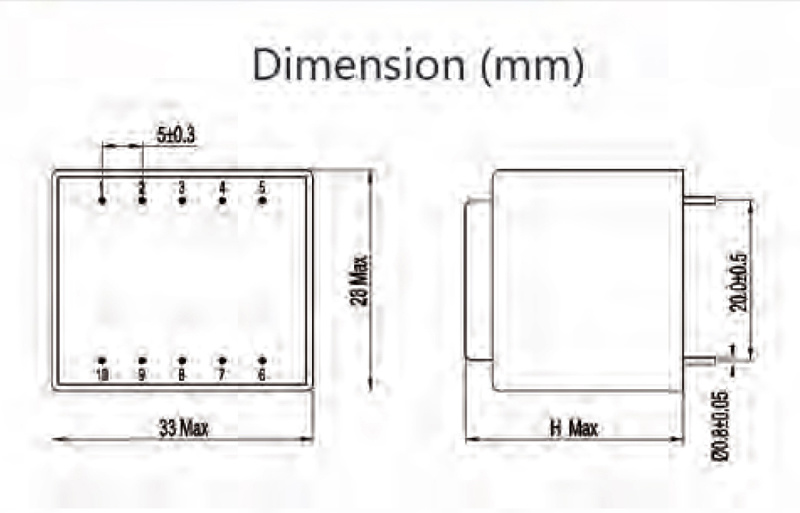

Low Frequency Transformer for Power Supply (EI30-23 3.2VA)

Quantity:



Inquire Add to Basket

Model NO.:
EI3023 3.2VA
Frequency Characteristics:
Low Frequency
Shape of Core:
EI
Trademark:
RD
Transport Package:
Cartons
Specification:
0.135KG/PC

Product Description

EI30-23 SERIES-3.2VA
PART NUMBER		OUTPUT VOLTAGE(V)	OUTPUT CURRENT(mA)	CIRCUIT DIAGRAM
INPUT:230V	INPUT:115V	OUTPUT VOLTAGE(V)	OUTPUT CURRENT(mA)	CIRCUIT DIAGRAM
RD3023500	RD3023600	4.5	711	FIG.1
RD3023501	RD3023601	6	533	FIG.1
RD3023502	RD3023602	7.5	427	FIG.1
RD3023503	RD3023603	9	356	FIG.1
RD3023504	RD3023604	12	267	FIG.1
RD3023505	RD3023605	15	213	FIG.1
RD3023506	RD3023606	18	178	FIG.1
RD3023507	RD3023607	24	133	FIG.1
RD3023550	RD3023650	2 X 4.5	2 X 356	FIG.2
RD3023551	RD3023651	2 X 6	2 X 267	FIG.2
RD3023552	RD3023652	2 X 7.5	2 X 213	FIG.2
RD3023553	RD3023653	2 X 9	2 X 178	FIG.2
RD3023554	RD3023654	2 X 12	2 X 133	FIG.2
RD3023555	RD3023655	2 X 15	2 X 107	FIG.2
RD3023556	RD3023656	2 X 18	2 X 89	FIG.2
RD3023557	RD3023657	2 X 24	2 X 67	FIG.2

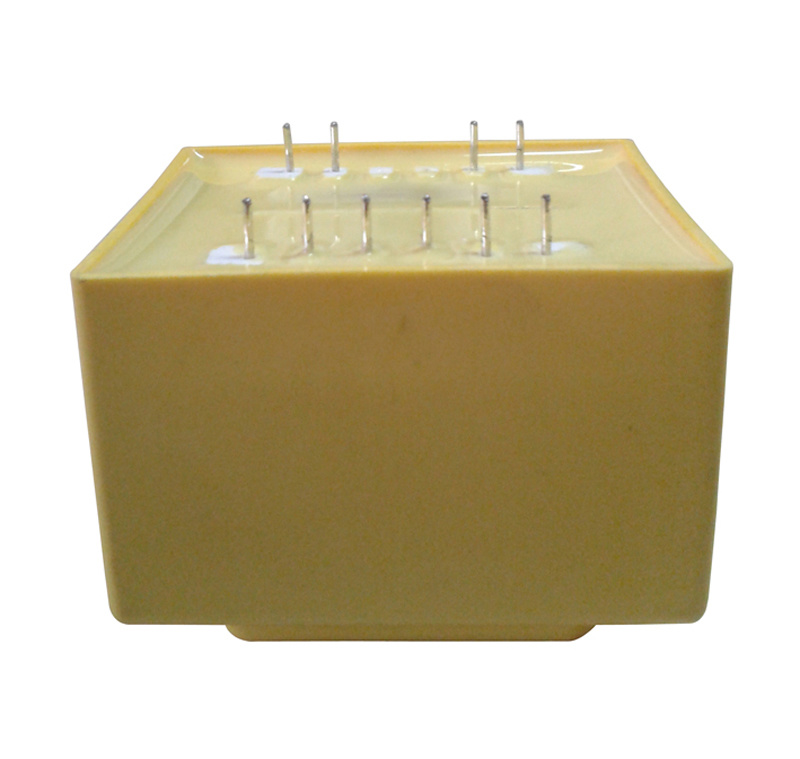

Encapsulated Transformer EI30 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70ºC max)
Insulation class-class B(130ºC )
Custom design available

TECHNICAL INFORMATION:
1. High capacity up to 3.2VA
2. Primary voltage from 24V to 440V
3. Secondary voltage 6V to 24V or 2x6V to 2x24V respectively
4. Minimum size available
5. Absolutely short-circuit-proof
6. Temperature class ta 40ºC /B and ta 70ºC /B
7. High electrical safety and long service-life properties
8. Quality test certified per item
