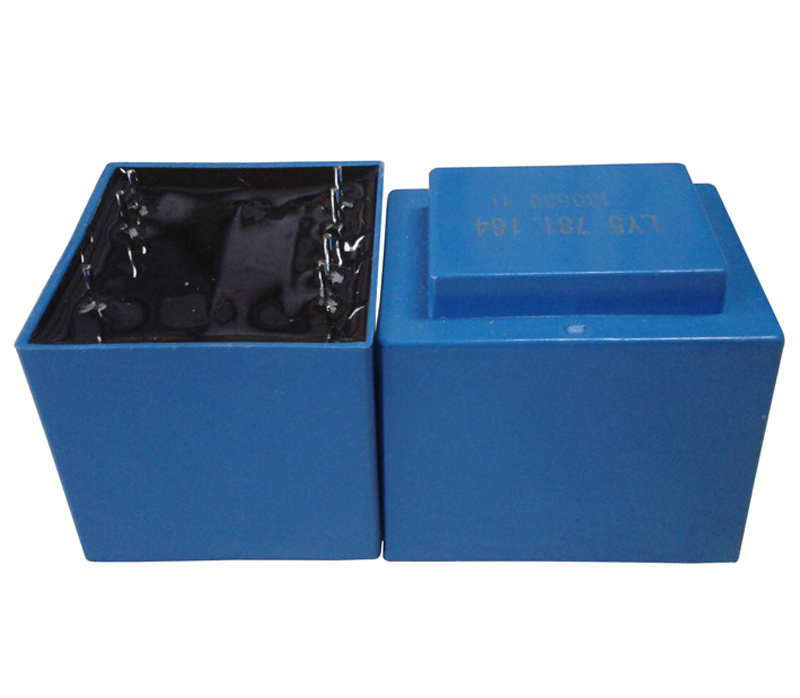

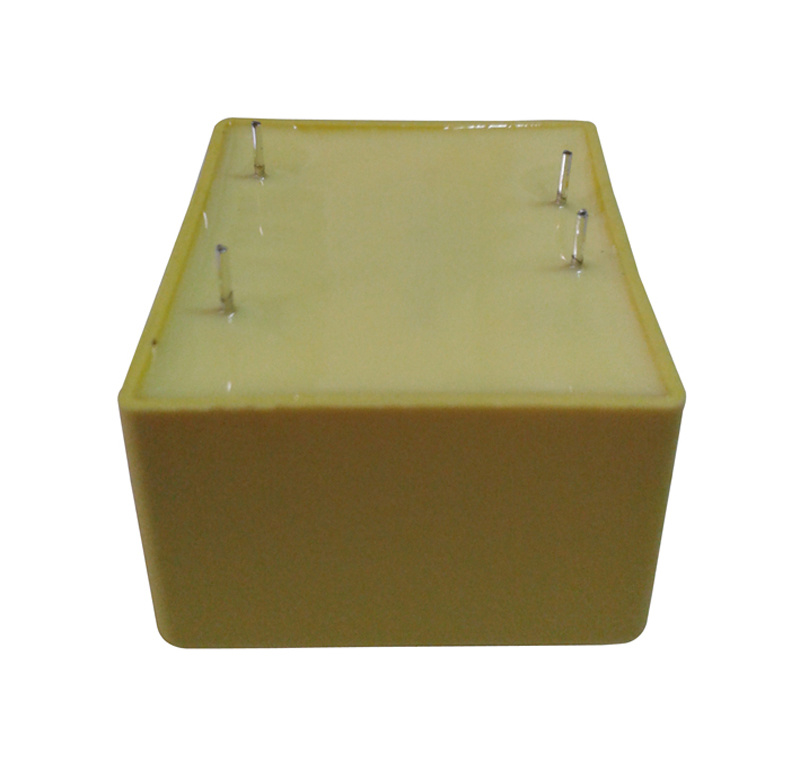

Encapsulated Transformer for Power Supply (EI42-14 6.0VA)

Quantity:



Inquire Add to Basket

Model NO.:
EI4214 6.0VA
Frequency Characteristics:
Low Frequency
Shape of Core:
EI
Trademark:
RD
Transport Package:
Cartons
Specification:
0.2KG/PC
Origin:
China

Product Description

EI42-14 SERIES-6.0VA

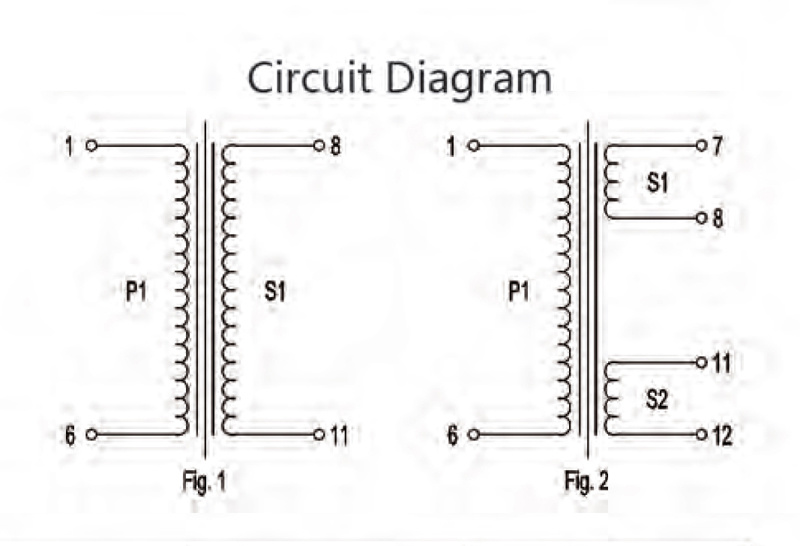

PART NUMBER		OUTPUT VOLTAGE(V)	OUTPUT CURRENT(mA)	CIRCUIT DIAGRAM
INPUT:230V	INPUT:115V	OUTPUT VOLTAGE(V)	OUTPUT CURRENT(mA)	CIRCUIT DIAGRAM
RD4214500	RD4214600	4.5	1333	FIG.1
RD4214501	RD4214601	6	1000	FIG.1
RD4214502	RD4214602	7.5	800	FIG.1
RD4214503	RD4214603	9	667	FIG.1
RD4214504	RD4214604	12	500	FIG.1
RD4214505	RD4214605	15	400	FIG.1
RD4214506	RD4214606	18	333	FIG.1
RD4214507	RD4214607	24	250	FIG.1
RD4214550	RD4214650	2 X 4.5	2 X 667	FIG.2
RD4214551	RD4214651	2 X 6	2 X 500	FIG.2
RD4214552	RD4214652	2 X 7.5	2 X 400	FIG.2
RD4214553	RD4214653	2 X 9	2 X 333	FIG.2
RD4214554	RD4214654	2 X 12	2 X 250	FIG.2
RD4214555	RD4214655	2 X 15	2 X 200	FIG.2
RD4214556	RD4214656	2 X 18	2 X 167	FIG.2
RD4214557	RD4214657	2 X 24	2 X 125	FIG.2

Encapsulated Transformer EI42 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. High capacity up to 6.0VA
2. Non short-circuit-proof at temperature class ta 40 /B and ta 70 /B
3. Excellent temperature fluctuation resistance properties
4. High electrical safety and long service-life features
5. High voltage resistance
6. Self-extinguishing cast housing and sealing material
7. Certified item quality tested
