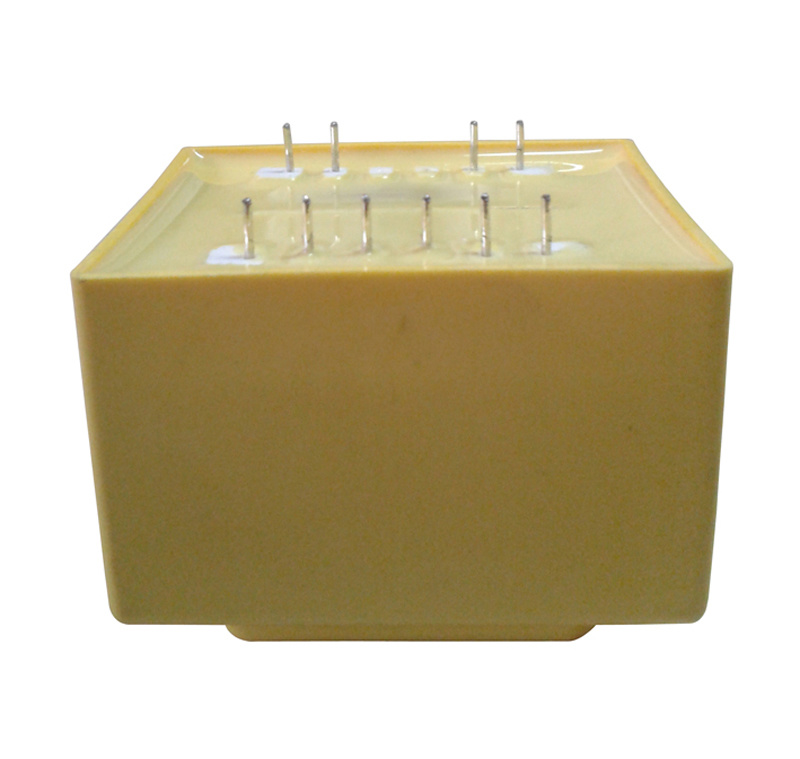

Low Frequency Transformer for Power Supply (EI30-18 2.8VA)

Quantity:
  • EI3018 2.8VA
  • Low Frequency
  • EI
  • RD
  • Cartons
  • 0.115KG/PC
Low Frequency Transformer for Power Supply (EI30-18 2.8VA)
Low Frequency Transformer for Power Supply (EI30-18 2.8VA) Low Frequency Transformer for Power Supply (EI30-18 2.8VA) Low Frequency Transformer for Power Supply (EI30-18 2.8VA)
EI30-18 SERIES-2.8VA

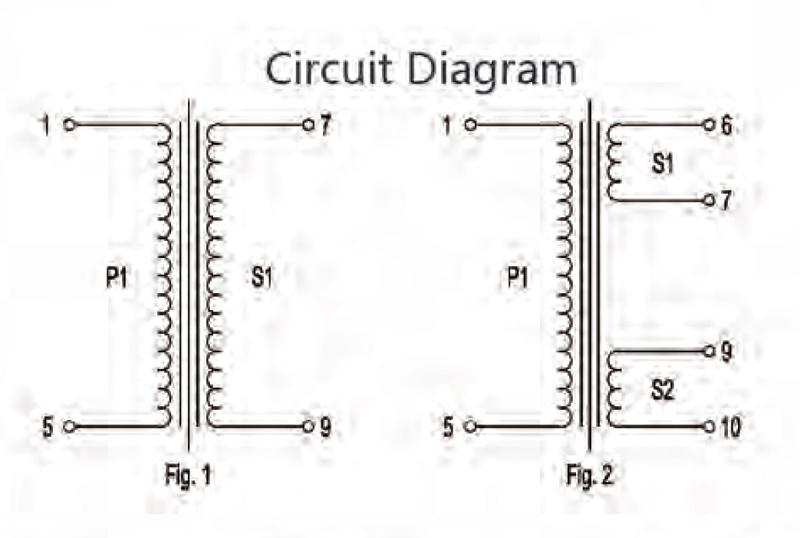

PART NUMBER OUTPUT VOLTAGE(V) OUTPUT CURRENT(mA) CIRCUIT DIAGRAM
INPUT:230V INPUT:115V
RD3018500 RD3018600 4.5 622 FIG.1
RD3018501 RD3018601 6 467 FIG.1
RD3018502 RD3018602 7.5 373 FIG.1
RD3018503 RD3018603 9 311 FIG.1
RD3018504 RD3018604 12 233 FIG.1
RD3018505 RD3018605 15 187 FIG.1
RD3018506 RD3018606 18 156 FIG.1
RD3018507 RD3018607 24 117 FIG.1
RD3018550 RD3018650 2 X 4.5 2 X 311 FIG.2
RD3018551 RD3018651 2 X 6 2 X 233 FIG.2
RD3018552 RD3018652 2 X 7.5 2 X 187 FIG.2
RD3018553 RD3018653 2 X 9 2 X 156 FIG.2
RD3018554 RD3018654 2 X 12 2 X 117 FIG.2
RD3018555 RD3018655 2 X 15 2 X 93 FIG.2
RD3018556 RD3018656 2 X 18 2 X 78 FIG.2
RD3018557 RD3018657 2 X 24 2 X 58 FIG.2

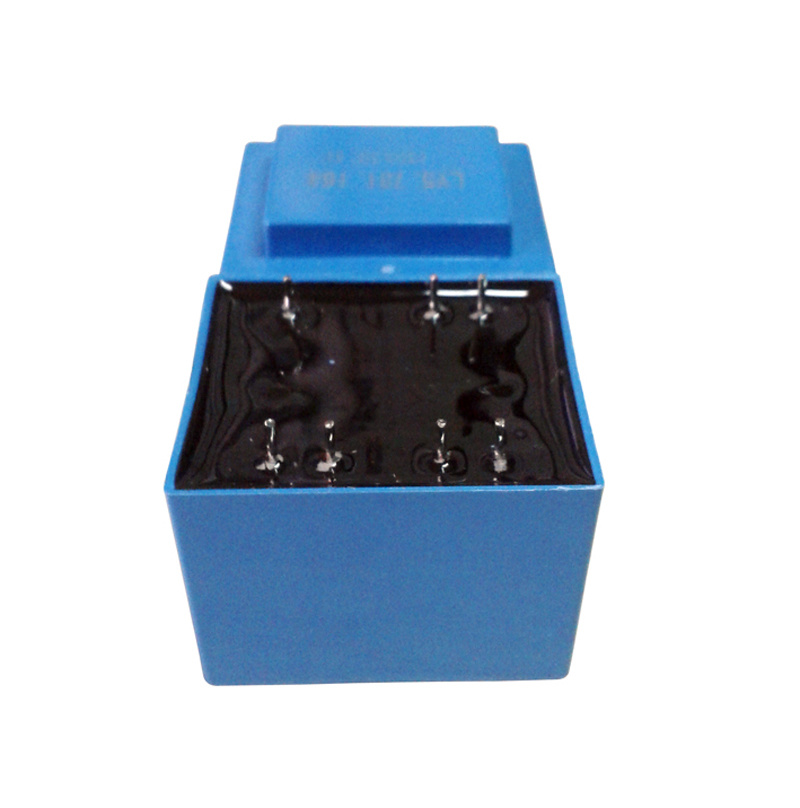

Encapsulated Transformer EI30 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70ºC max)
Insulation class-class B(130ºC )
Custom design available

TECHNICAL INFORMATION:
1. High capacity up to 3.2VA
2. Primary voltage from 24V to 440V
3. Secondary voltage 6V to 24V or 2x6V to 2x24V respectively
4. Minimum size available
5. Absolutely short-circuit-proof
6. Temperature class ta 40ºC /B and ta 70ºC /B
7. High electrical safety and long service-life properties
8. Quality test certified per item
