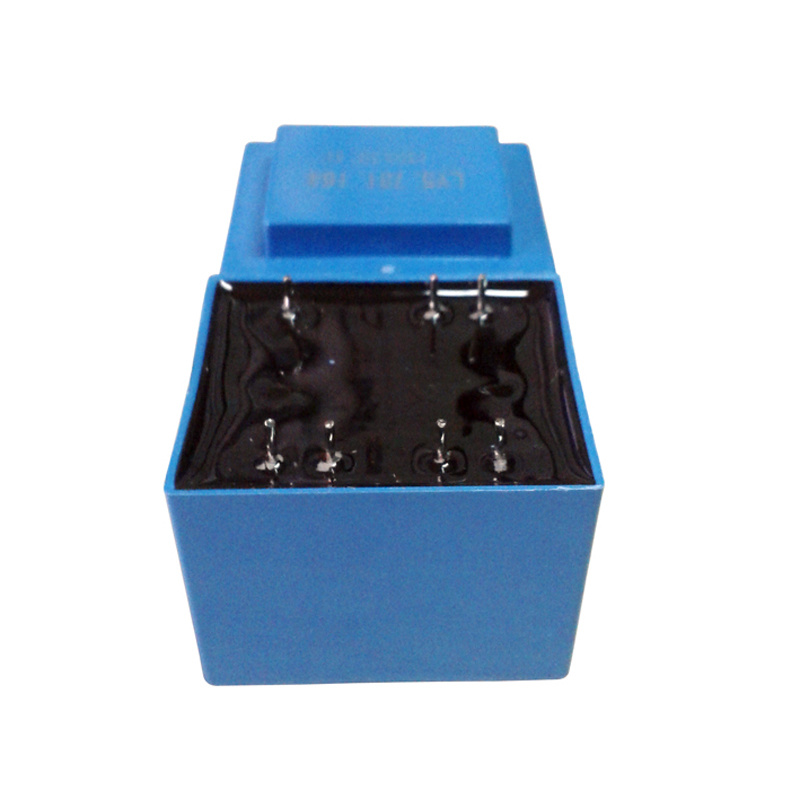

Low Frequency Transformer for Power Supply (EI30-18 2.3VA)

Quantity:



Inquire Add to Basket

Model NO.:
EI3018 2.3VA
Frequency Characteristics:
Low Frequency
Shape of Core:
EI
Trademark:
RD
Transport Package:
Cartons
Specification:
0.115KG/PC

Product Description

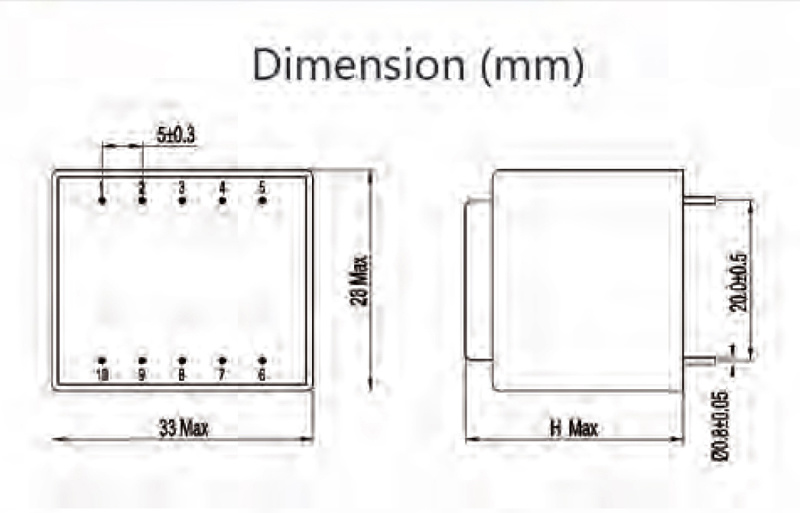

EI30-18 SERIES-2.3VA

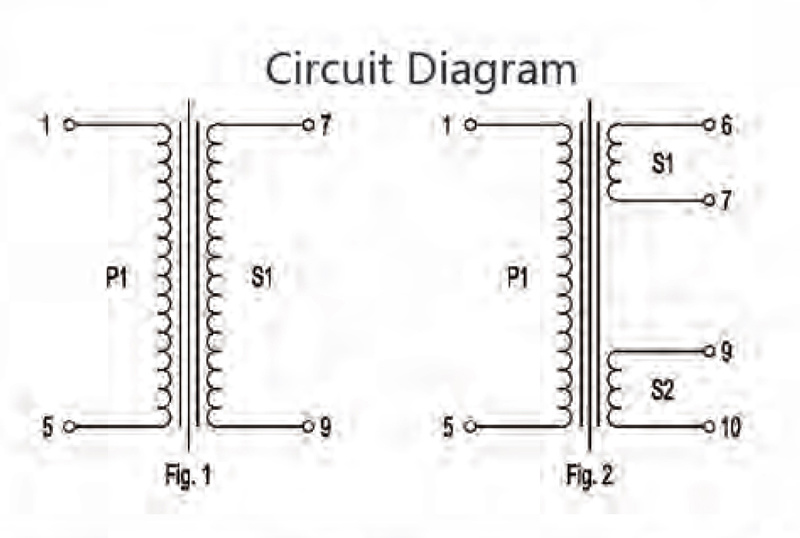

PART NUMBER		OUTPUT VOLTAGE(V)	OUTPUT CURRENT(mA)	CIRCUIT DIAGRAM
INPUT:230V	INPUT:115V	OUTPUT VOLTAGE(V)	OUTPUT CURRENT(mA)	CIRCUIT DIAGRAM
RD3018000	RD3018100	4.5	511	FIG.1
RD3018001	RD3018101	6	383	FIG.1
RD3018002	RD3018102	7.5	307	FIG.1
RD3018003	RD3018103	9	256	FIG.1
RD3018004	RD3018104	12	192	FIG.1
RD3018005	RD3018105	15	153	FIG.1
RD3018006	RD3018106	18	128	FIG.1
RD3018007	RD3018107	24	96	FIG.1
RD3018050	RD3018150	2 X 4.5	2 X 256	FIG.2
RD3018051	RD3018151	2 X 6	2 X 192	FIG.2
RD3018052	RD3018152	2 X 7.5	2 X 153	FIG.2
RD3018053	RD3018153	2 X 9	2 X 128	FIG.2
RD3018054	RD3018154	2 X 12	2 X 96	FIG.2
RD3018055	RD3018155	2 X 15	2 X 77	FIG.2
RD3018056	RD3018156	2 X 18	2 X 64	FIG.2
RD3018057	RD3018157	2 X 24	2 X 48	FIG.2

Encapsulated Transformer EI30 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70ºC max)
Insulation class-class B(130ºC )
Custom design available

TECHNICAL INFORMATION:
1. High capacity up to 3.2VA
2. Primary voltage from 24V to 440V
3. Secondary voltage 6V to 24V or 2x6V to 2x24V respectively
4. Minimum size available
5. Absolutely short-circuit-proof
6. Temperature class ta 40ºC /B and ta 70ºC /B
7. High electrical safety and long service-life properties
8. Quality test certified per item
