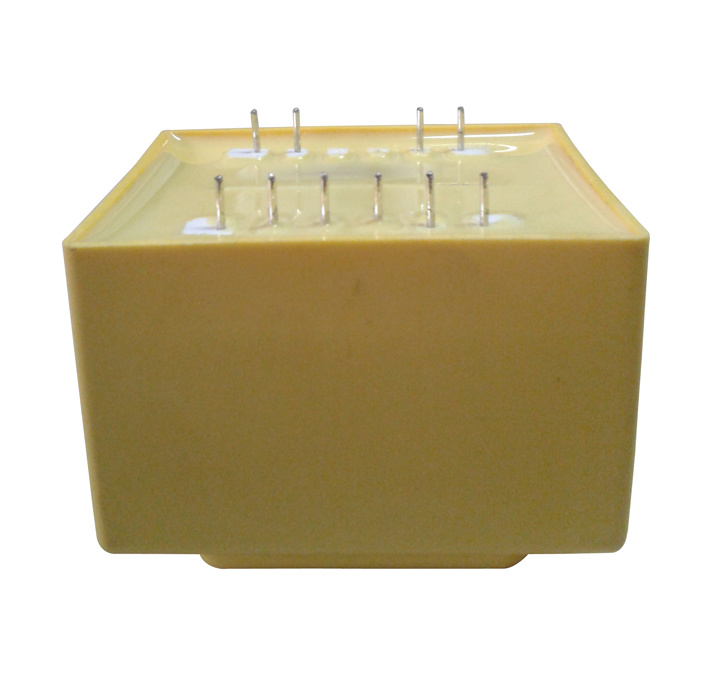

Encapsulated Transformer for Plower Supply (EI38-20 6VA)

Quantity:
  • EI3820 6VA

  • RD

  • Cartons

  • 0.21KG/PC

  • China


Encapsulated Transformer for Plower Supply (EI38-20 6VA)
Encapsulated Transformer for Plower Supply (EI38-20 6VA) Encapsulated Transformer for Plower Supply (EI38-20 6VA)
EI38-20 SERIES-6.0VA

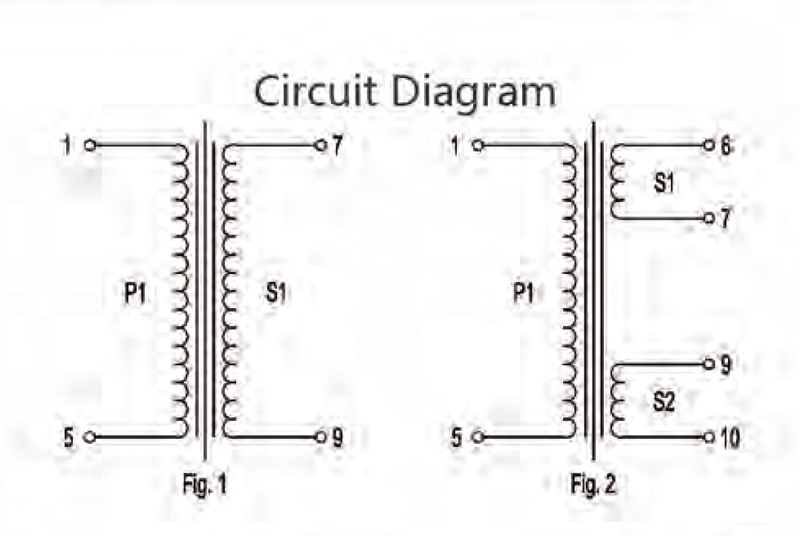

PART NUMBER OUTPUT VOLTAGE(V) OUTPUT CURRENT(mA) CIRCUIT DIAGRAM
INPUT:230V INPUT:115V
RD3820000 RD3820100 4.5 1333 FIG.1
RD3820001 RD3820101 6 1000 FIG.1
RD3820002 RD3820102 7.5 800 FIG.1
RD3820003 RD3820103 9 667 FIG.1
RD3820004 RD3820104 12 500 FIG.1
RD3820005 RD3820105 15 400 FIG.1
RD3820006 RD3820106 18 333 FIG.1
RD3820007 RD3820107 24 250 FIG.1
RD3820050 RD3820150 2 X 4.5 2 X 667 FIG.2
RD3820051 RD3820151 2 X 6 2 X 500 FIG.2
RD3820052 RD3820152 2 X 7.5 2 X 400 FIG.2
RD3820053 RD3820153 2 X 9 2 X 333 FIG.2
RD3820054 RD3820154 2 X 12 2 X 250 FIG.2
RD3820055 RD3820155 2 X 15 2 X 200 FIG.2
RD3820056 RD3820156 2 X 18 2 X 167 FIG.2
RD3820057 RD3820157 2 X 24 2 X 125 FIG.2
Encapsulated Transformer EI38 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70ºC max)
Insulation class-class B(130ºC )
Custom design available
TECHNICAL INFORMATION:
1. High capacity up to 4.5VA
2. Non short-circuit-proof at temperature class ta 70ºC /B
3. Excellent temperature fluctuation resistance properties
4. High electrical safety and long service-life features
5. High voltage resistance
6. Self-extinguishing cast housing and sealing material
7. Certified item quality tested
