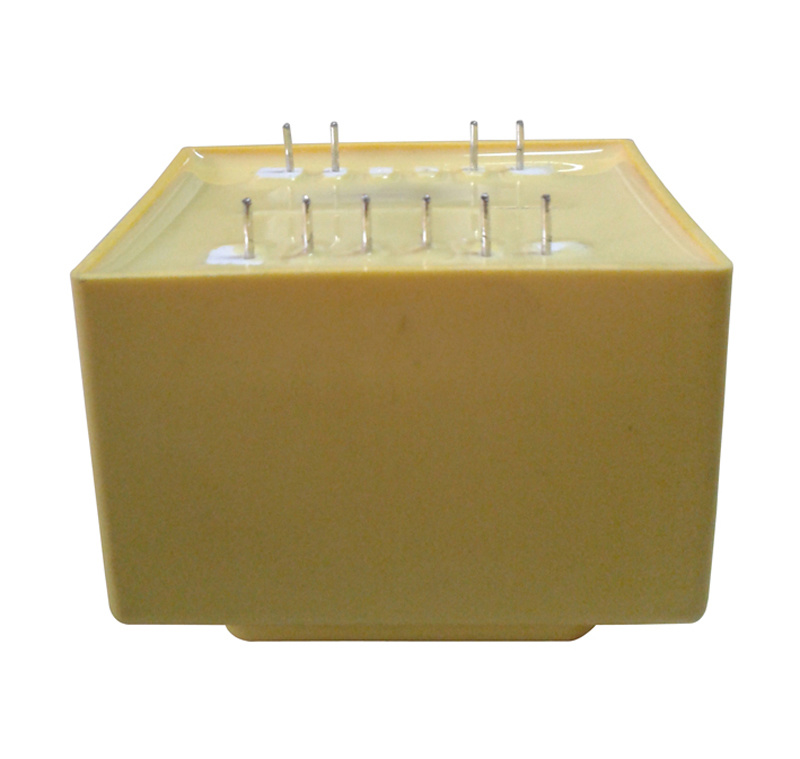

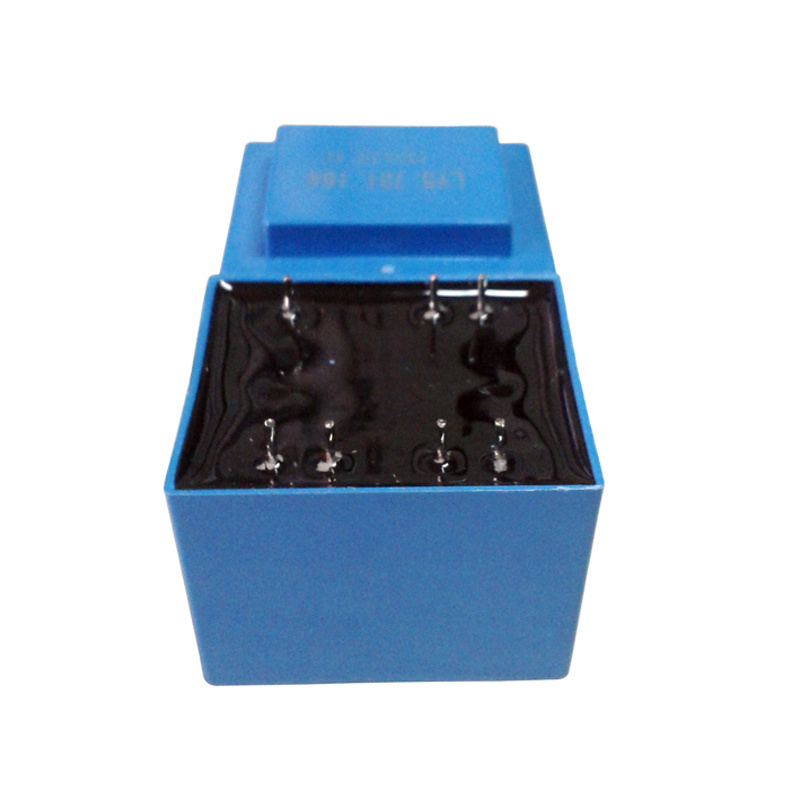

Low Frequency Transformer for Power Supply (EI30-12.5 1.7VA)

Quantity:



Inquire Add to Basket

Model NO.:
EI30-12.5 1.7VA
Frequency Characteristics:
Low Frequency
Shape of Core:
EI
Trademark:
RD
Transport Package:
Cartons
Specification:
0.082KG/PC

Product Description

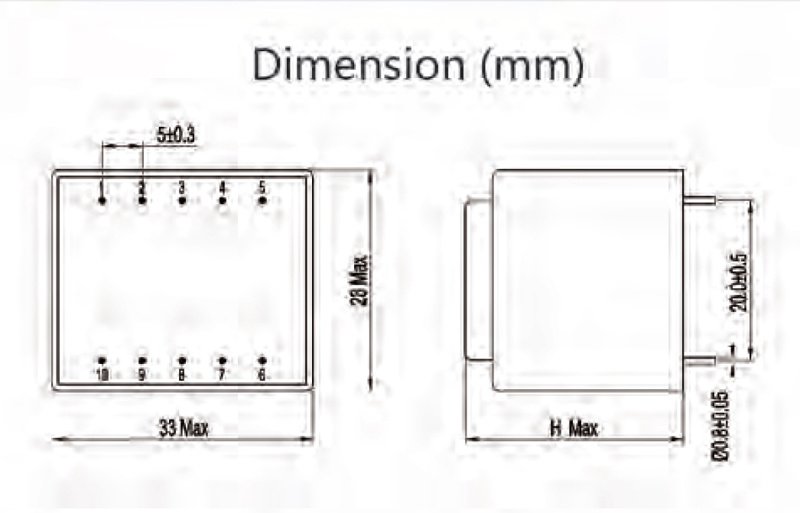

EI30-12.5 SERIES-1.7VA

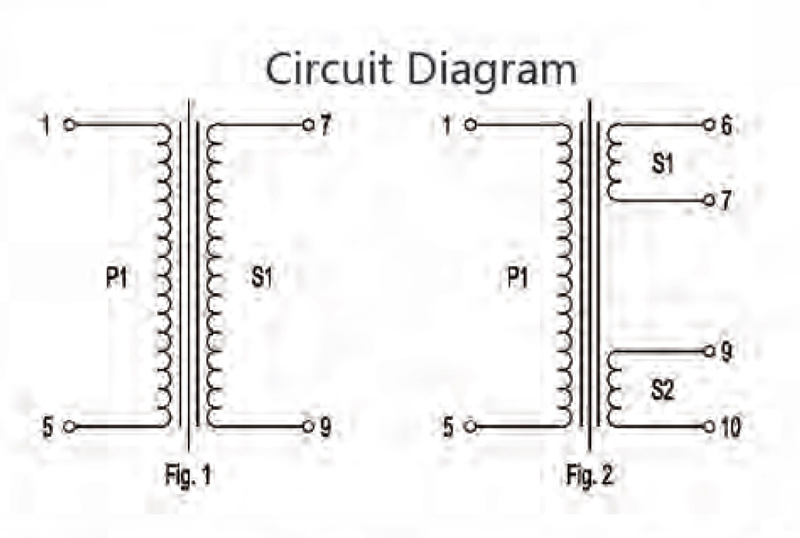

PART NUMBER		OUTPUT VOLTAGE(V)	OUTPUT CURRENT(mA)	CIRCUIT DIAGRAM
INPUT:230V	INPUT:115V	OUTPUT VOLTAGE(V)	OUTPUT CURRENT(mA)	CIRCUIT DIAGRAM
RD3012000	RD3012100	4.5	378	FIG.1
RD3012001	RD3012101	6	283	FIG.1
RD3012002	RD3012102	7.5	227	FIG.1
RD3012003	RD3012103	9	189	FIG.1
RD3012004	RD3012104	12	142	FIG.1
RD3012005	RD3012105	15	113	FIG.1
RD3012006	RD3012106	18	94	FIG.1
RD3012007	RD3012107	24	71	FIG.1
RD3012050	RD3012150	2 X 4.5	2 X 189	FIG.2
RD3012051	RD3012151	2 X 6	2 X 142	FIG.2
RD3012052	RD3012152	2 X 7.5	2 X 113	FIG.2
RD3012053	RD3012153	2 X 9	2 X 94	FIG.2
RD3012054	RD3012154	2 X 12	2 X 71	FIG.2
RD3012055	RD3012155	2 X 15	2 X 57	FIG.2
RD3012056	RD3012156	2 X 18	2 X 47	FIG.2
RD3012057	RD3012157	2 X 24	2 X 35	FIG.2

Encapsulated Transformer EI30 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70ºC max)
Insulation class-class B(130ºC )
Custom design available

TECHNICAL INFORMATION:
1. High capacity up to 3.2VA
2. Primary voltage from 24V to 440V
3. Secondary voltage 6V to 24V or 2x6V to 2x24V respectively
4. Minimum size available
5. Absolutely short-circuit-proof
6. Temperature class ta 40ºC /B and ta 70ºC /B
7. High electrical safety and long service-life properties
8. Quality test certified per item
