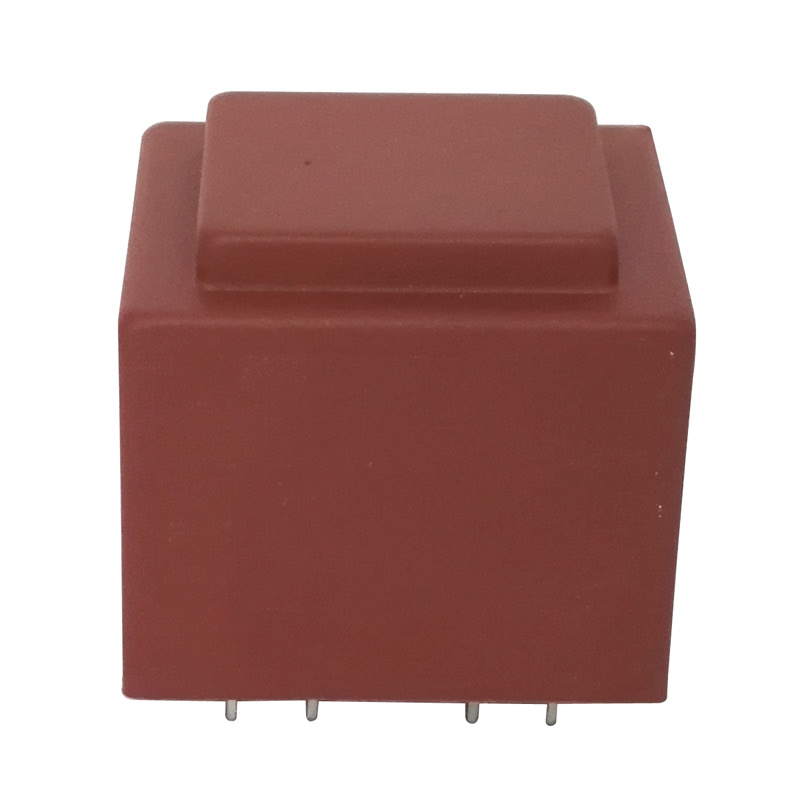

Low Frequency Transformer for Power Supply (EE20-6 0.35VA)

Quantity:
  • EE20-6 0.35VA
  • EE
  • Rd
  • Cartons
  • 0.025KG
  • China
Low Frequency Transformer for Power Supply (EE20-6 0.35VA)

Low Frequency Transformer for Power Supply (EE20-6 0.35VA) Low Frequency Transformer for Power Supply (EE20-6 0.35VA)
EE20-6 SERIES-0.35VA

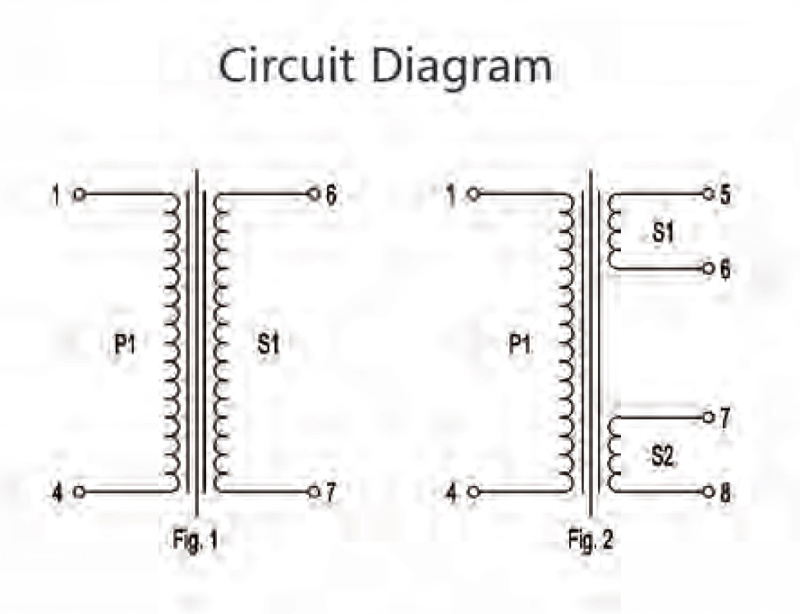

PART NUMBER OUTPUT VOLTAGE(V) OUTPUT CURRENT(mA) CIRCUIT DIAGRAM
INPUT:230V INPUT:115V
RD2006000 RD2006100 4.5 78 FIG.1
RD2006001 RD2006101 6 58 FIG.1
RD2006002 RD2006102 7.5 47 FIG.1
RD2006003 RD2006103 9 39 FIG.1
RD2006004 RD2006104 12 29 FIG.1
RD2006005 RD2006105 15 23 FIG.1
RD2006006 RD2006106 18 19 FIG.1
RD2006007 RD2006107 24 15 FIG.1
RD2006050 RD2006150 2 X 4.5 2 X 39 FIG.2
RD2006051 RD2006151 2 X 6 2 X 29 FIG.2
RD2006052 RD2006152 2 X 7.5 2 X 23 FIG.2
RD2006053 RD2006153 2 X 9 2 X 19 FIG.2
RD2006054 RD2006154 2 X 12 2 X 15 FIG.2
RD2006055 RD2006155 2 X 15 2 X 12 FIG.2
RD2006056 RD2006156 2 X 18 2 X 10 FIG.2
RD2006057 RD2006157 2 X 24 2 X 7 FIG.2
Encapsulated Transformer EE20 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. High capacity from 0.35 to 0.5VA
2. Secondary voltage 6V to 24V or 2x6V to 2x24V respectively
3. Minimum size
4. Temperature class ta 70 /B
5. Maximum safety and long-term durability
6. Individually tested with certificate
7. Excellent reaction to temperature changes
8. Self-extinguishing cast housing and sealing material
