Low Frequency Transformer for Power Supply (EE30-5 0.5VA)

Quantity:
  • EE30-5 0.5VA
  • EE
  • Rd
  • Cartons
  • 0.045KG
  • China
Low Frequency Transformer for Power Supply (EE30-5 0.5VA)

Low Frequency Transformer for Power Supply (EE30-5 0.5VA) Low Frequency Transformer for Power Supply (EE30-5 0.5VA)
EI30-5 SERIES-0.5VA

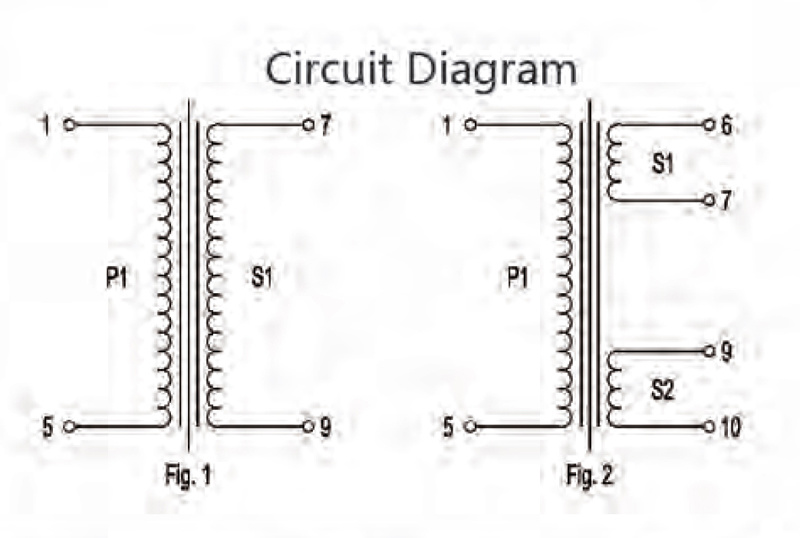

PART NUMBER OUTPUT VOLTAGE(V) OUTPUT CURRENT(mA) CIRCUIT DIAGRAM
INPUT:230V INPUT:115V
RD3005000 RD3005100 4.5 111 FIG.1
RD3005001 RD3005101 6 83 FIG.1
RD3005002 RD3005102 7.5 67 FIG.1
RD3005003 RD3005103 9 56 FIG.1
RD3005004 RD3005104 12 42 FIG.1
RD3005005 RD3005105 15 33 FIG.1
RD3005006 RD3005106 18 28 FIG.1
RD3005007 RD3005107 24 21 FIG.1
RD3005050 RD3005150 2 X 4.5 2 X 56 FIG.2
RD3005051 RD3005151 2 X 6 2 X 42 FIG.2
RD3005052 RD3005152 2 X 7.5 2 X 33 FIG.2
RD3005053 RD3005153 2 X 9 2 X 28 FIG.2
RD3005054 RD3005154 2 X 12 2 X 21 FIG.2
RD3005055 RD3005155 2 X 15 2 X 17 FIG.2
RD3005056 RD3005156 2 X 18 2 X 14 FIG.2
RD3005057 RD3005157 2 X 24 2 X 10 FIG.2

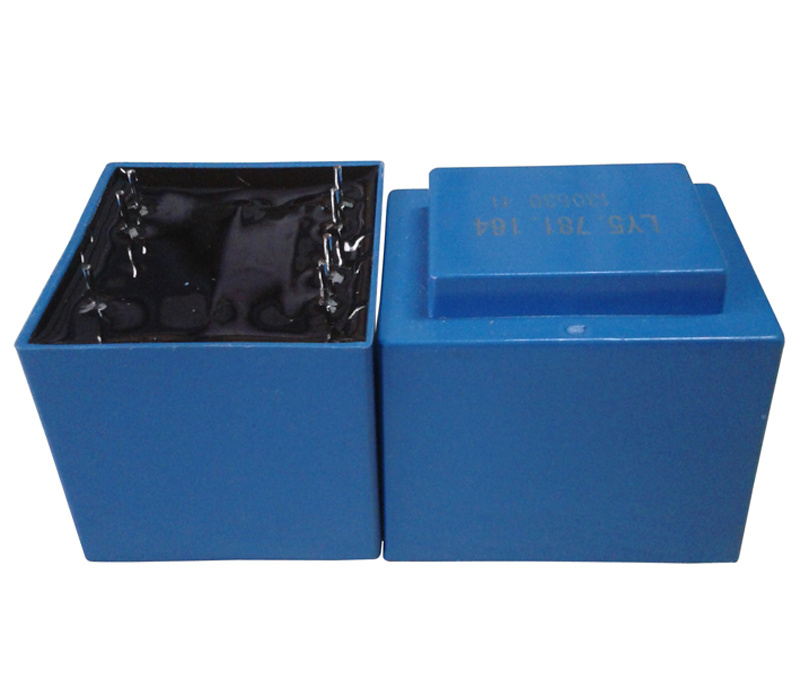

Encapsulated Transformer EE30 Series

Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. High capacity up to 3.2VA
2. Secondary voltage 6V to 24V or 2x6V to 2x24V respectively
3. Minimum size availlable
4. Temperature class ta 70 /B
5. Maximum safety and long-term durability
6. Individually tested with certificate
7. Excellent reaction to temperature changes
8. Self-extinguishing cast housing and sealing material
