| EI60-21 SERIES-25.0VA | | | | |

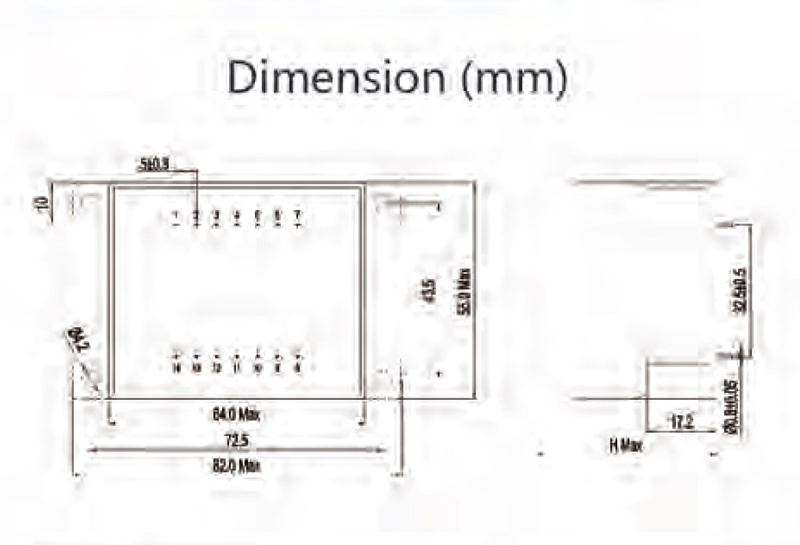

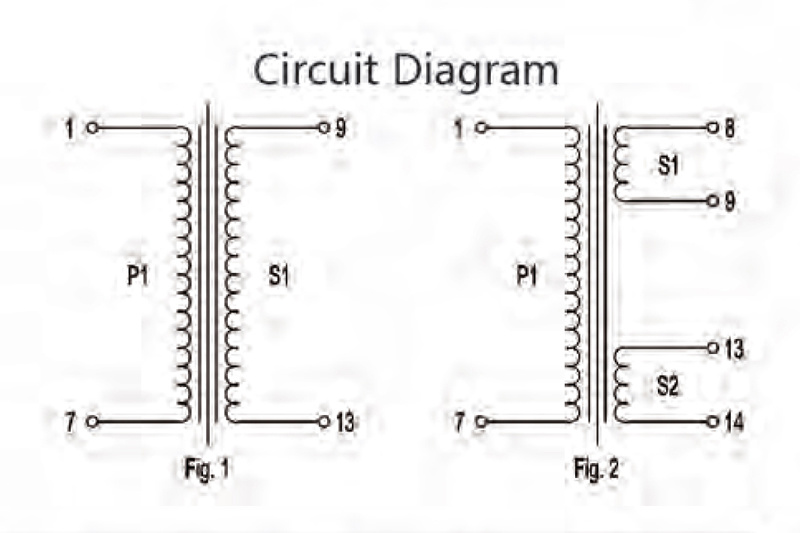

| PART NUMBER | OUTPUT VOLTAGE(V) | OUTPUT CURRENT(mA) | CIRCUIT DIAGRAM |
| INPUT:230V | INPUT:115V |
| RD6021500 | RD6021600 | 4.5 | 5556 | FIG.1 |
| RD6021501 | RD6021601 | 6 | 4167 | FIG.1 |
| RD6021502 | RD6021602 | 7.5 | 3333 | FIG.1 |
| RD6021503 | RD6021603 | 9 | 2778 | FIG.1 |
| RD6021504 | RD6021604 | 12 | 2078 | FIG.1 |
| RD6021505 | RD6021605 | 15 | 1667 | FIG.1 |
| RD6021506 | RD6021606 | 18 | 1389 | FIG.1 |
| RD6021507 | RD6021607 | 24 | 1042 | FIG.1 |
| RD6021550 | RD6021650 | 2 X 4.5 | 2 X 2778 | FIG.2 |
| RD6021551 | RD6021651 | 2 X 6 | 2 X 2083 | FIG.2 |
| RD6021552 | RD6021652 | 2 X 7.5 | 2 X 1667 | FIG.2 |
| RD6021553 | RD6021653 | 2 X 9 | 2 X 1389 | FIG.2 |
| RD6021554 | RD6021654 | 2 X 12 | 2 X 1042 | FIG.2 |
| RD6021555 | RD6021655 | 2 X 15 | 2 X 833 | FIG.2 |
| RD6021556 | RD6021656 | 2 X 18 | 2 X 694 | FIG.2 |
| RD6021557 | RD6021657 | 2 X 24 | 2 X 521 | FIG.2 |

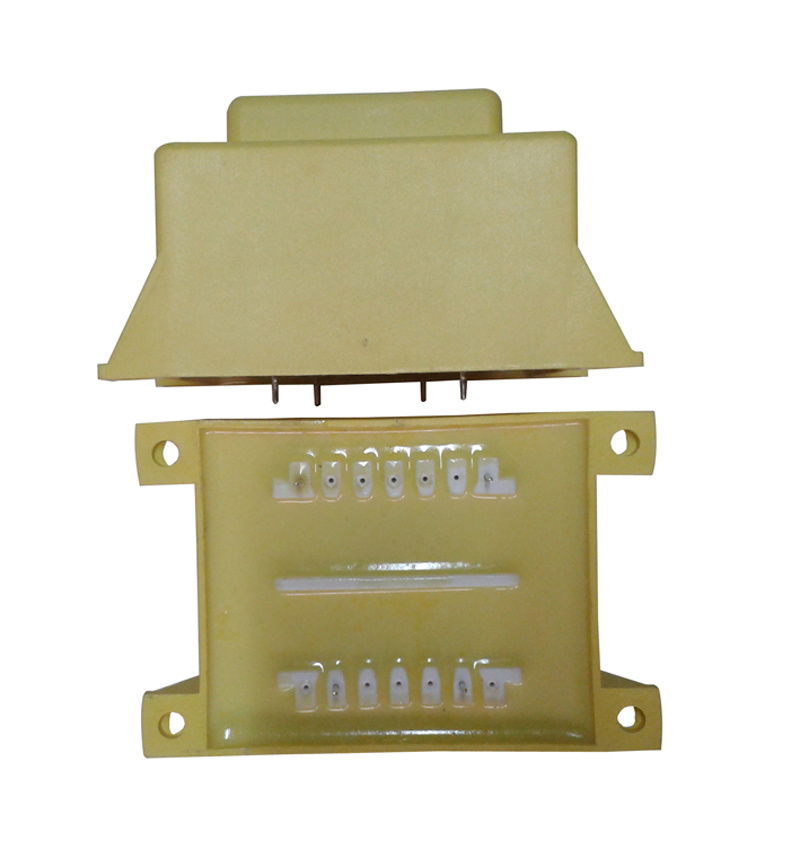

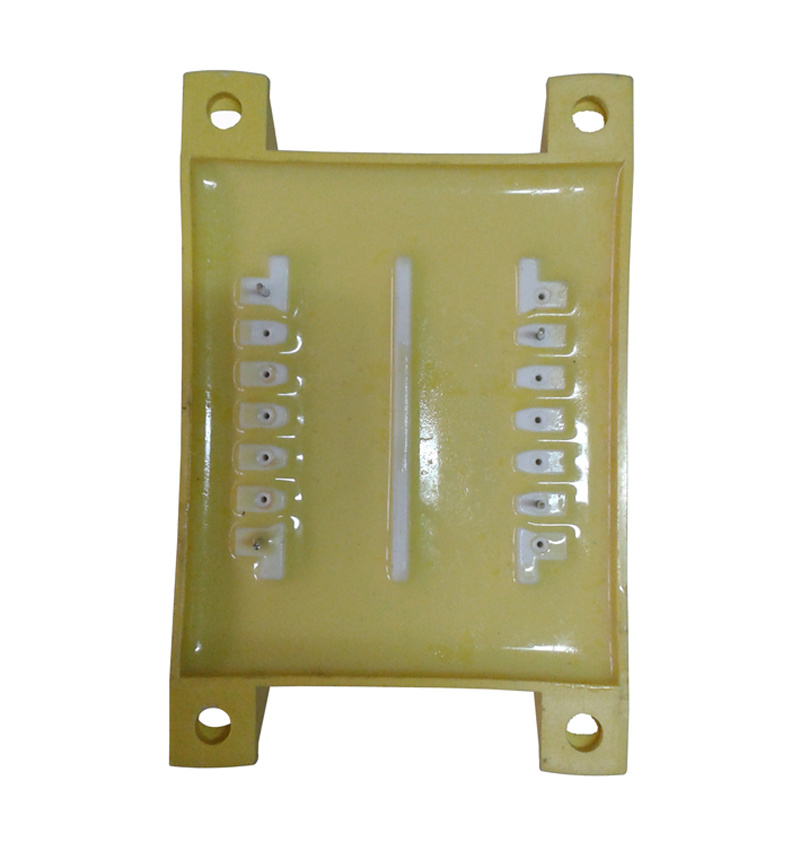

Encapsulated Transformer EI60 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. High capacity up to 25.0VA
2. Non short-circuit-proof at temperature class ta 40 /B and ta 70 /B
3. Excellent temperature fluctuation resistance properties
4. High electrical safety and long service-life features
5. High voltage resistance
6. Self-extinguishing cast housing and sealing material
7. Certified item quality tested
