Low Frequency Transformer for Power Supply (EI30-15 2.0VA)

Quantity:
  • EI3015 2.0VA
  • Low Frequency
  • EI
  • RD
  • Cartons
  • 0.1KG/PC
Low Frequency Transformer for Power Supply (EI30-15 2.0VA)
Low Frequency Transformer for Power Supply (EI30-15 2.0VA) Low Frequency Transformer for Power Supply (EI30-15 2.0VA) Low Frequency Transformer for Power Supply (EI30-15 2.0VA)
EI30-15 SERIES-2.0VA

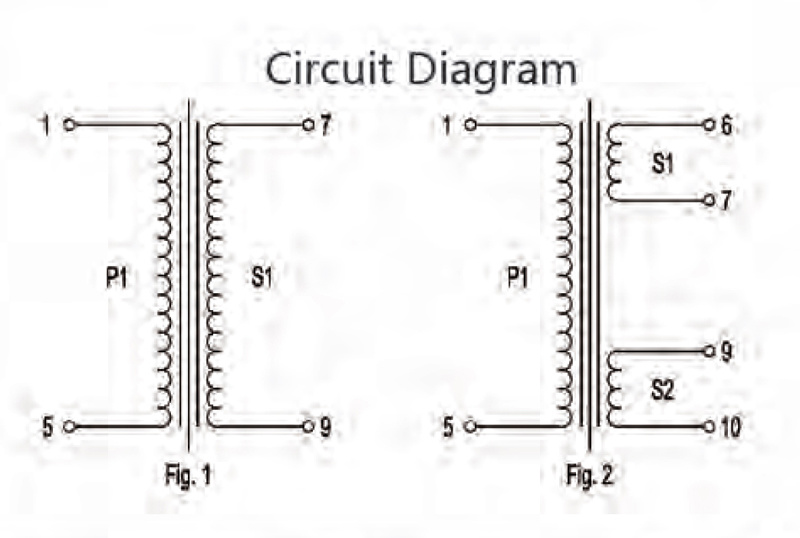

PART NUMBER OUTPUT VOLTAGE(V) OUTPUT CURRENT(mA) CIRCUIT DIAGRAM
INPUT:230V INPUT:115V
RD3015000 RD3015100 4.5 444 FIG.1
RD3015001 RD3015101 6 333 FIG.1
RD3015002 RD3015102 7.5 267 FIG.1
RD3015003 RD3015103 9 222 FIG.1
RD3015004 RD3015104 12 167 FIG.1
RD3015005 RD3015105 15 133 FIG.1
RD3015006 RD3015106 18 111 FIG.1
RD3015007 RD3015107 24 83 FIG.1
RD3015050 RD3015150 2 X 4.5 2 X 222 FIG.2
RD3015051 RD3015151 2 X 6 2 X 167 FIG.2
RD3015052 RD3015152 2 X 7.5 2 X 133 FIG.2
RD3015053 RD3015153 2 X 9 2 X 111 FIG.2
RD3015054 RD3015154 2 X 12 2 X 83 FIG.2
RD3015055 RD3015155 2 X 15 2 X 67 FIG.2
RD3015056 RD3015156 2 X 18 2 X 56 FIG.2
RD3015057 RD3015157 2 X 24 2 X 42 FIG.2

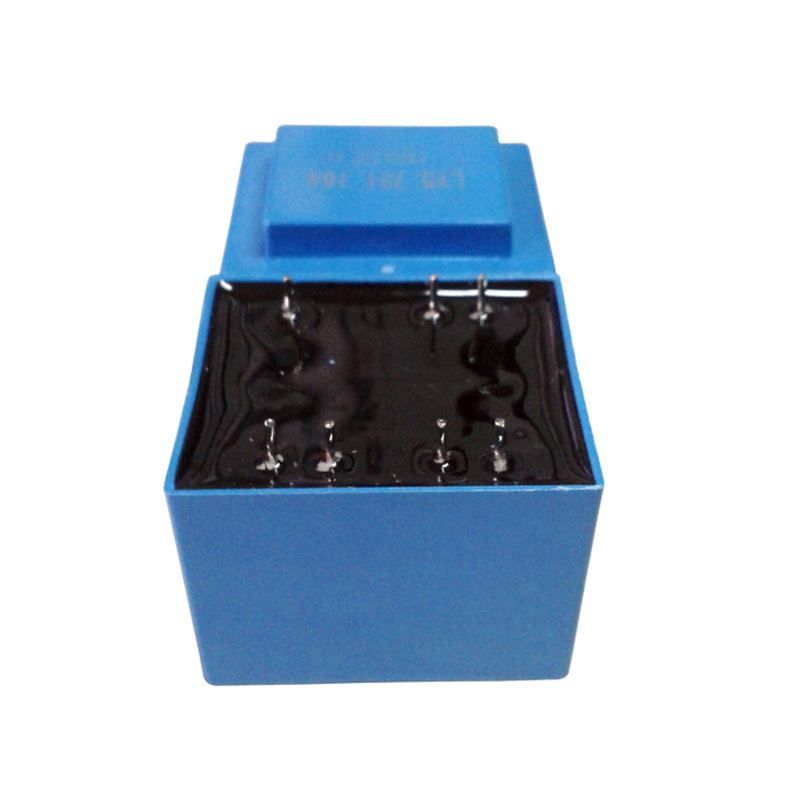

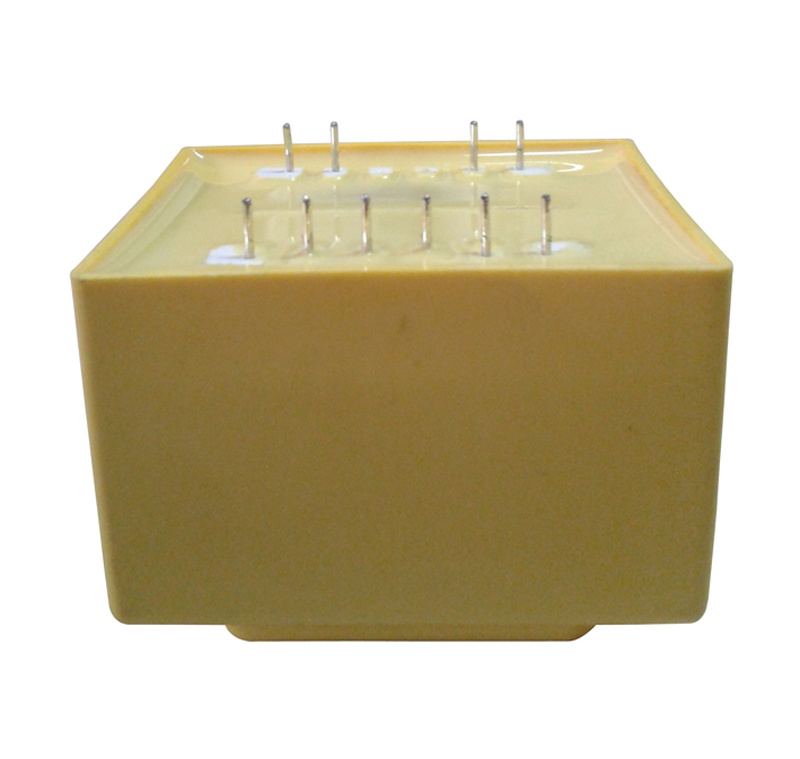

Encapsulated Transformer EI30 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70ºC max)
Insulation class-class B(130ºC )
Custom design available

TECHNICAL INFORMATION:
1. High capacity up to 3.2VA
2. Primary voltage from 24V to 440V
3. Secondary voltage 6V to 24V or 2x6V to 2x24V respectively
4. Minimum size available
5. Absolutely short-circuit-proof
6. Temperature class ta 40ºC /B and ta 70ºC /B
7. High electrical safety and long service-life properties
8. Quality test certified per item
