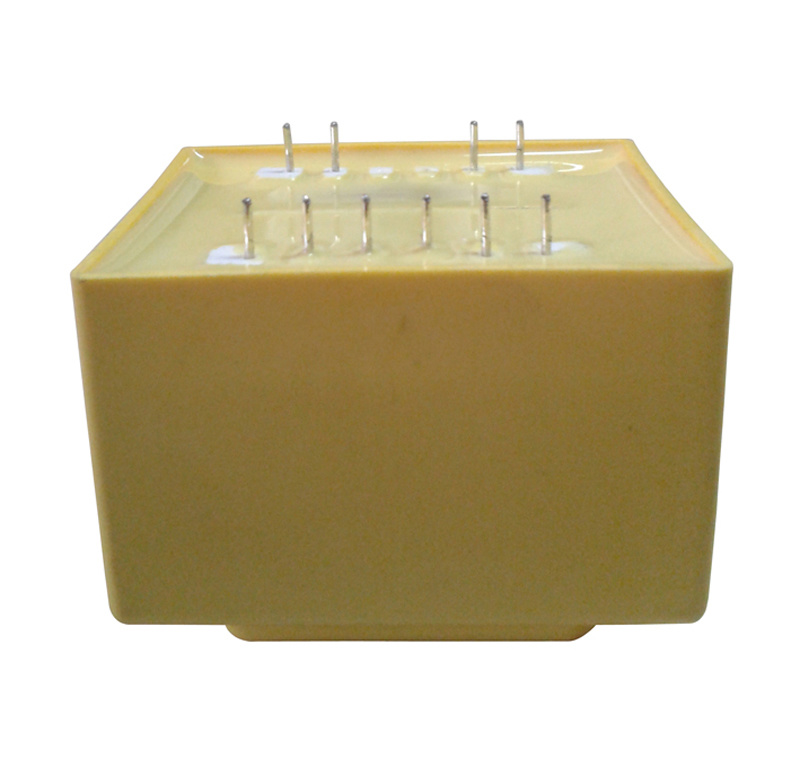

Encapsulated Transformer for Power Supply (EI48-16 10VA)

Quantity:
  • EI4816 10VA

  • Low Frequency

  • EI

  • RD

  • Cartons

  • 0.3KGS/PC

  • China

Encapsulated Transformer for Power Supply (EI48-16 10VA)
Encapsulated Transformer for Power Supply (EI48-16 10VA) Encapsulated Transformer for Power Supply (EI48-16 10VA) Encapsulated Transformer for Power Supply (EI48-16 10VA)
EI48-16 SERIES-10VA

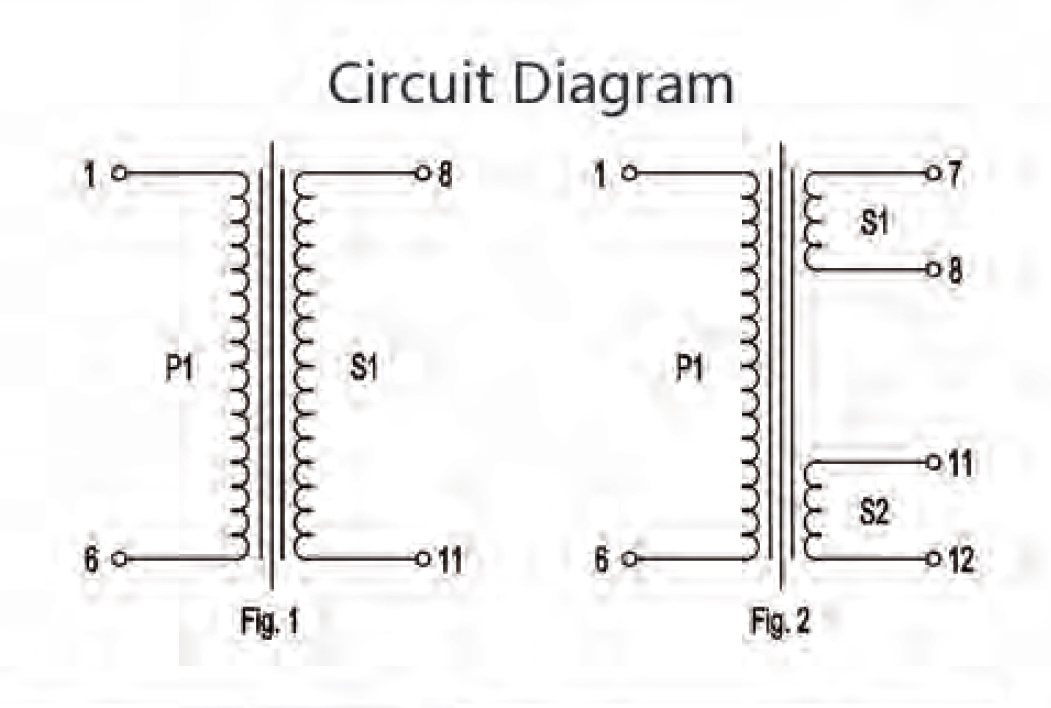

PART NUMBER OUTPUT VOLTAGE(V) OUTPUT CURRENT(mA) CIRCUIT DIAGRAM
INPUT:230V INPUT:115V
RD4816500 RD4816600 4.5 2222 FIG.1
RD4816501 RD4816601 6 1667 FIG.1
RD4816502 RD4816602 7.5 1333 FIG.1
RD4816503 RD4816603 9 1111 FIG.1
RD4816504 RD4816604 12 833 FIG.1
RD4816505 RD4816605 15 667 FIG.1
RD4816506 RD4816606 18 556 FIG.1
RD4816507 RD4816607 24 417 FIG.1
RD4816550 RD4816650 2 X 4.5 2 X 1111 FIG.2
RD4816551 RD4816651 2 X 6 2 X 833 FIG.2
RD4816552 RD4816652 2 X 7.5 2 X 667 FIG.2
RD4816553 RD4816653 2 X 9 2 X 556 FIG.2
RD4816554 RD4816654 2 X 12 2 X 417 FIG.2
RD4816555 RD4816655 2 X 15 2 X 333 FIG.2
RD4816556 RD4816656 2 X 18 2 X 278 FIG.2
RD4816557 RD4816657 2 X 24 2 X 208 FIG.2
Encapsulated Transformer EI48 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. High capacity up to 12.0VA
2. Non short-circuit-proof at temperature class ta 40 /B and ta 70 /B
3. Excellent temperature fluctuation resistance properties
4. High electrical safety and long service-life features
5. High voltage resistance
6. Self-extinguishing cast housing and sealing material
7. Certified item quality tested
