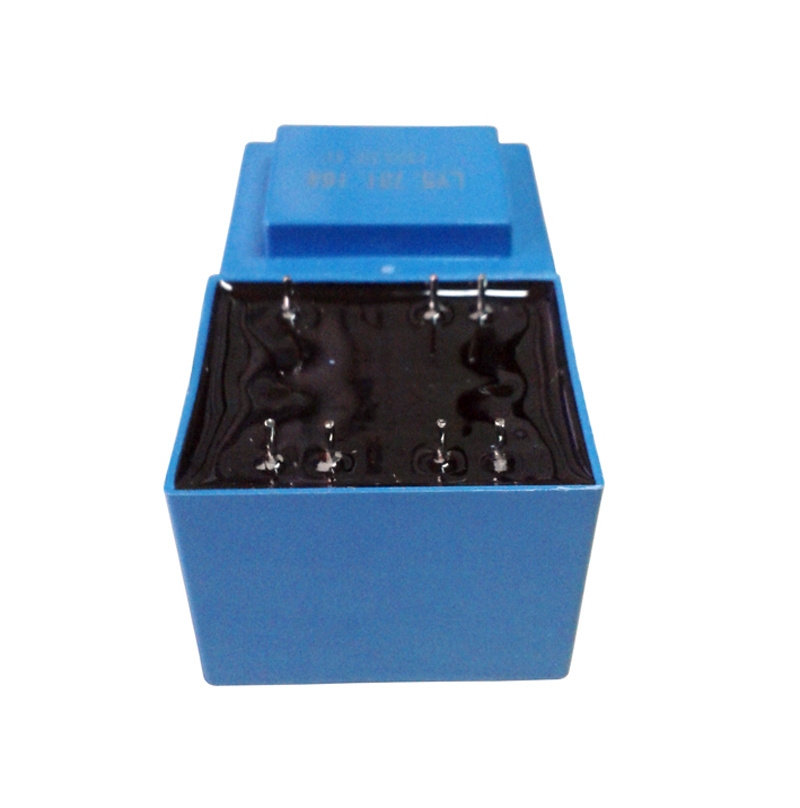

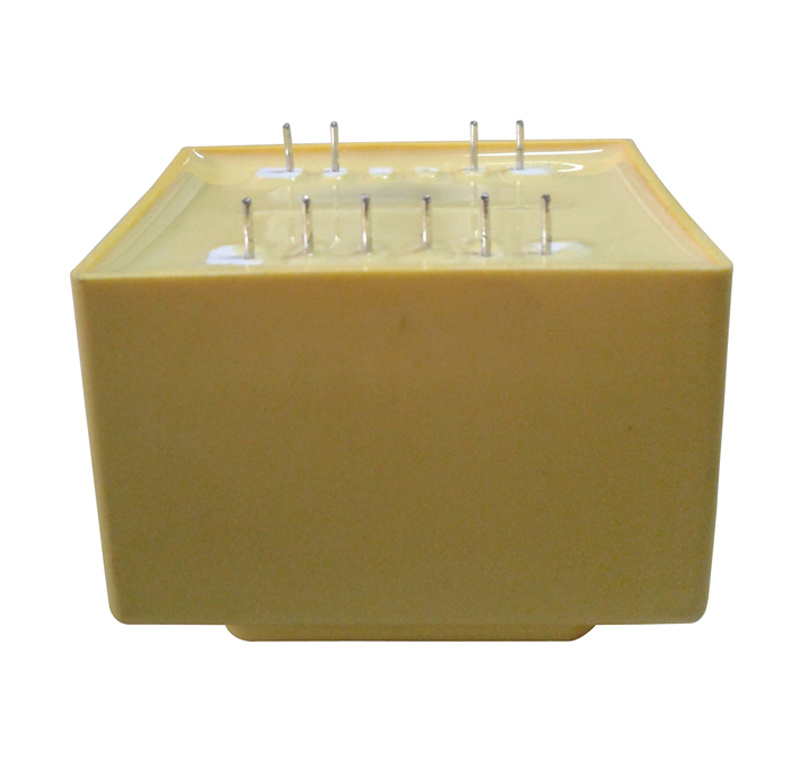

Low Frequency Transformer for Power Supply (EI30-23 2.8VA)

Quantity:



Inquire Add to Basket

Model NO.:
EI3023 2.8VA
Frequency Characteristics:
Low Frequency
Shape of Core:
EI
Trademark:
RD
Transport Package:
Cartons
Specification:
0.135KG/PC

Product Description

EI30-23 SERIES-2.8VA

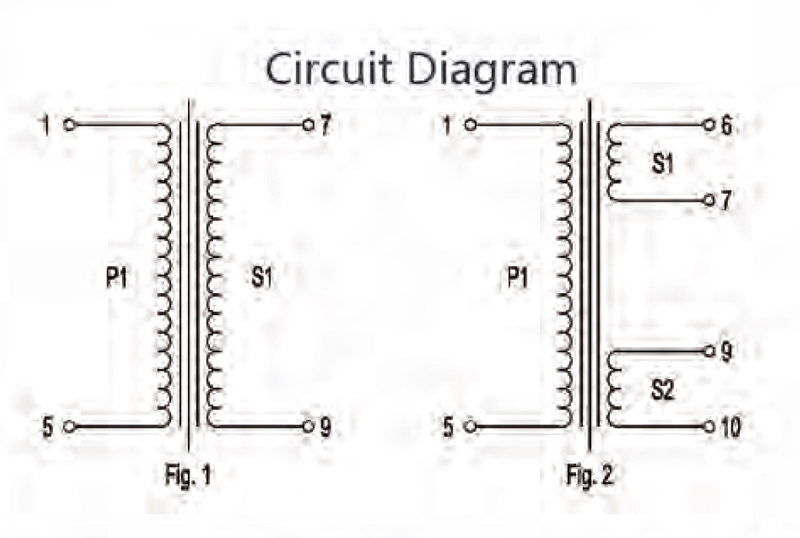

PART NUMBER		OUTPUT VOLTAGE(V)	OUTPUT CURRENT(mA)	CIRCUIT DIAGRAM
INPUT:230V	INPUT:115V	OUTPUT VOLTAGE(V)	OUTPUT CURRENT(mA)	CIRCUIT DIAGRAM
RD3023000	RD3023100	4.5	622	FIG.1
RD3023001	RD3023101	6	467	FIG.1
RD3023002	RD3023102	7.5	373	FIG.1
RD3023003	RD3023103	9	311	FIG.1
RD3023004	RD3023104	12	233	FIG.1
RD3023005	RD3023105	15	187	FIG.1
RD3023006	RD3023106	18	156	FIG.1
RD3023007	RD3023107	24	117	FIG.1
RD3023050	RD3023150	2 X 4.5	2 X 311	FIG.2
RD3023051	RD3023151	2 X 6	2 X 233	FIG.2
RD3023052	RD3023152	2 X 7.5	2 X 187	FIG.2
RD3023053	RD3023153	2 X 9	2 X 156	FIG.2
RD3023054	RD3023154	2 X 12	2 X 117	FIG.2
RD3023055	RD3023155	2 X 15	2 X 93	FIG.2
RD3023056	RD3023156	2 X 18	2 X 78	FIG.2
RD3023057	RD3023157	2 X 24	2 X 58	FIG.2

Encapsulated Transformer EI30 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70ºC max)
Insulation class-class B(130ºC )
Custom design available

TECHNICAL INFORMATION:
1. High capacity up to 3.2VA
2. Primary voltage from 24V to 440V
3. Secondary voltage 6V to 24V or 2x6V to 2x24V respectively
4. Minimum size available
5. Absolutely short-circuit-proof
6. Temperature class ta 40ºC /B and ta 70ºC /B
7. High electrical safety and long service-life properties
8. Quality test certified per item
