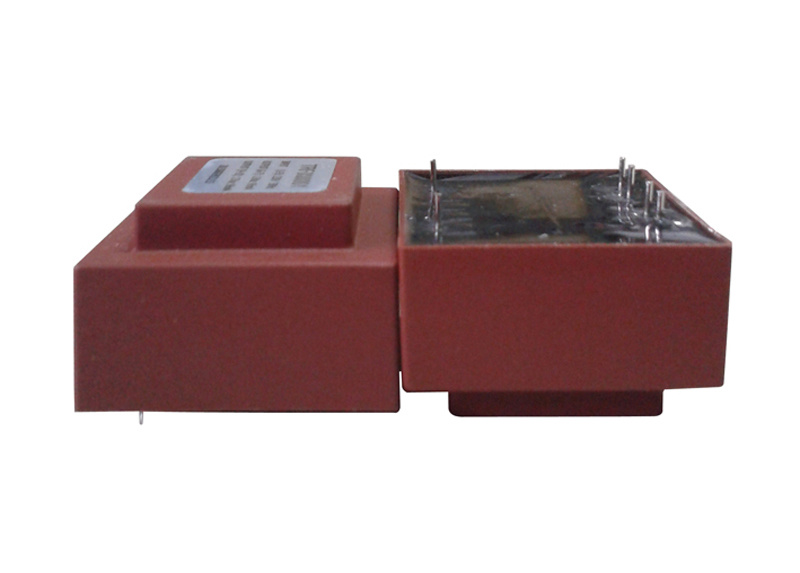

Encapsulated Transformer for Power Supply (EI54-18 16VA)

Quantity:
  • EI5418 16VA
  • Low Frequency
  • EI
  • RD
  • Cartons
  • 0.4KGS/PCS
  • China


Encapsulated Transformer for Power Supply (EI54-18 16VA) Encapsulated Transformer for Power Supply (EI54-18 16VA) Encapsulated Transformer for Power Supply (EI54-18 16VA) Encapsulated Transformer for Power Supply (EI54-18 16VA)
EI54-18 SERIES-16.0VA

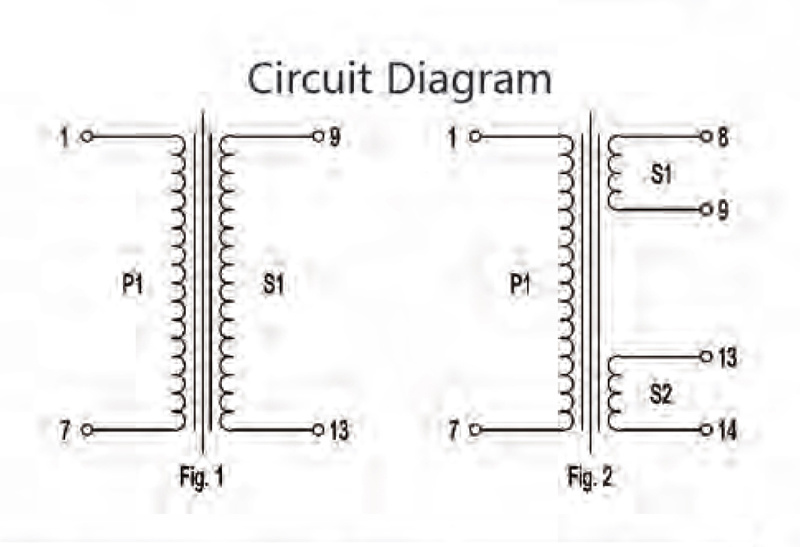

PART NUMBER OUTPUT VOLTAGE(V) OUTPUT CURRENT(mA) CIRCUIT DIAGRAM
INPUT:230V INPUT:115V
RD5418500 RD5418600 4.5 3556 FIG.1
RD5418501 RD5418601 6 2667 FIG.1
RD5418502 RD5418602 7.5 2133 FIG.1
RD5418503 RD5418603 9 1778 FIG.1
RD5418504 RD5418604 12 1333 FIG.1
RD5418505 RD5418605 15 1067 FIG.1
RD5418506 RD5418606 18 889 FIG.1
RD5418507 RD5418607 24 667 FIG.1
RD5418550 RD5418650 2 X 4.5 2 X 1778 FIG.2
RD5418551 RD5418651 2 X 6 2 X 1333 FIG.2
RD5418552 RD5418652 2 X 7.5 2 X 1067 FIG.2
RD5418553 RD5418653 2 X 9 2 X 889 FIG.2
RD5418554 RD5418654 2 X 12 2 X 667 FIG.2
RD5418555 RD5418655 2 X 15 2 X 533 FIG.2
RD5418556 RD5418656 2 X 18 2 X 444 FIG.2
RD5418557 RD5418657 2 X 24 2 X 333 FIG.2
Encapsulated Transformer EI54 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. High capacity up to 16.0VA
2. Non short-circuit-proof at temperature class ta 40 /B and ta 70 /B
3. Excellent temperature fluctuation resistance properties
4. High electrical safety and long service-life features
5. High voltage resistance
6. Self-extinguishing cast housing and sealing material
7. Certified item quality tested
