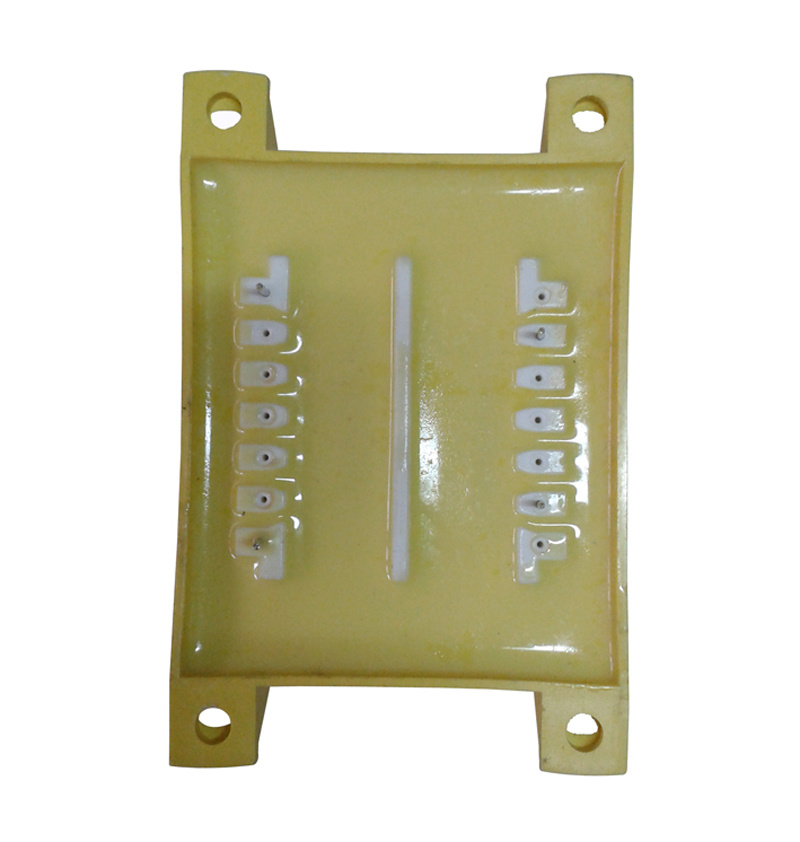

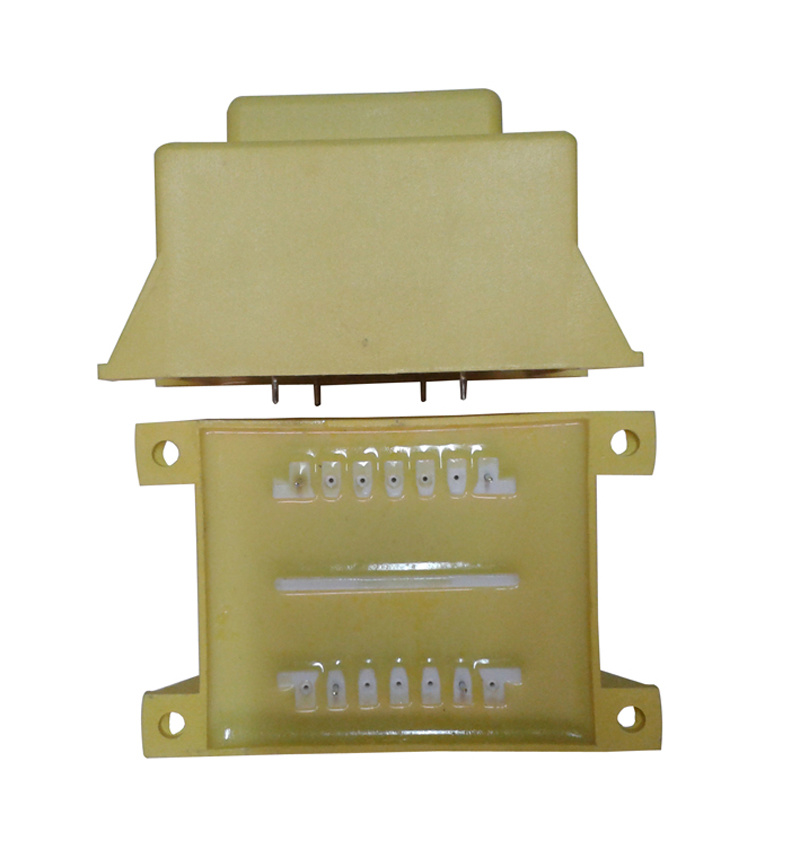

Encapsulated Transformer for Power Supply (EI60-21 20VA)

Quantity:
  • EI6021 20VA
  • Low Frequency
  • EI
  • RD
  • Cartons
  • 0.6KGS/PC
  • China

Encapsulated Transformer for Power Supply (EI60-21 20VA) Encapsulated Transformer for Power Supply (EI60-21 20VA) Encapsulated Transformer for Power Supply (EI60-21 20VA) Encapsulated Transformer for Power Supply (EI60-21 20VA)
EI60-21 SERIES-20.0VA
PART NUMBER OUTPUT VOLTAGE(V) OUTPUT CURRENT(mA) CIRCUIT DIAGRAM
INPUT:230V INPUT:115V
RD6021000 RD6021100 4.5 4444 FIG.1
RD6021001 RD6021101 6 3333 FIG.1
RD6021002 RD6021102 7.5 2667 FIG.1
RD6021003 RD6021103 9 2222 FIG.1
RD6021004 RD6021104 12 1667 FIG.1
RD6021005 RD6021105 15 1333 FIG.1
RD6021006 RD6021106 18 1111 FIG.1
RD6021007 RD6021107 24 833 FIG.1
RD6021050 RD6021150 2 X 4.5 2 X 2222 FIG.2
RD6021051 RD6021151 2 X 6 2 X 1667 FIG.2
RD6021052 RD6021152 2 X 7.5 2 X 1333 FIG.2
RD6021053 RD6021153 2 X 9 2 X 1111 FIG.2
RD6021054 RD6021154 2 X 12 2 X 883 FIG.2
RD6021055 RD6021155 2 X 15 2 X 667 FIG.2
RD6021056 RD6021156 2 X 18 2 X 556 FIG.2
RD6021057 RD6021157 2 X 24 2 X 417 FIG.2

Encapsulated Transformer EI60 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. High capacity up to 25.0VA
2. Non short-circuit-proof at temperature class ta 40 /B and ta 70 /B
3. Excellent temperature fluctuation resistance properties
4. High electrical safety and long service-life features
5. High voltage resistance
6. Self-extinguishing cast housing and sealing material
7. Certified item quality tested
