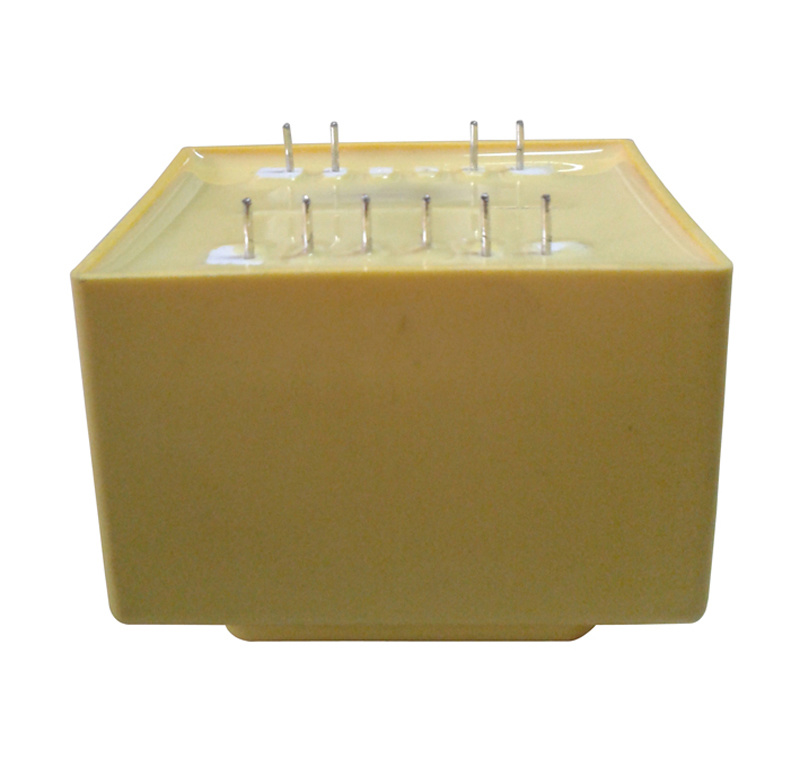

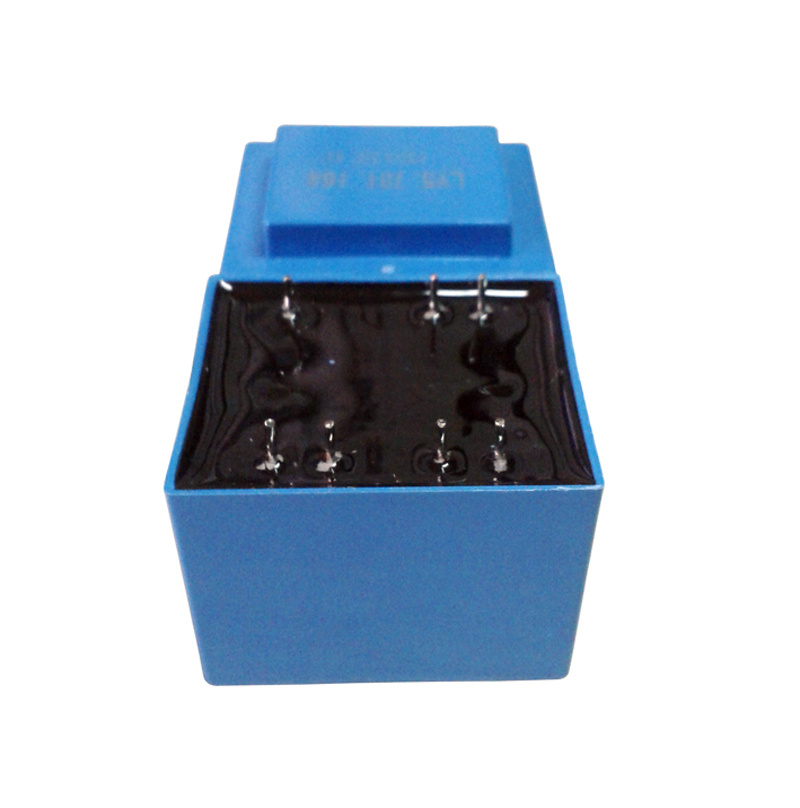

Low Frequency Transformer for Power Supply (EI30-15 2.4VA)

Quantity:



Inquire Add to Basket

Model NO.:
EI3015 2.4VA
Frequency Characteristics:
Low Frequency
Shape of Core:
EI
Trademark:
RD
Transport Package:
Cartons
Specification:
0.1KG/PC

Product Description

EI30-15 SERIES-2.4VA

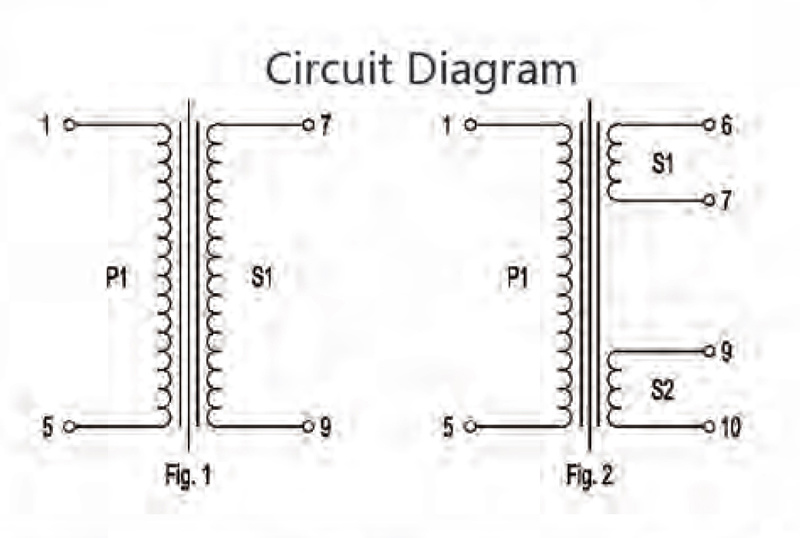

PART NUMBER		OUTPUT VOLTAGE(V)	OUTPUT CURRENT(mA)	CIRCUIT DIAGRAM
INPUT:230V	INPUT:115V	OUTPUT VOLTAGE(V)	OUTPUT CURRENT(mA)	CIRCUIT DIAGRAM
RD3015500	RD3015600	4.5	533	FIG.1
RD3015501	RD3015601	6	400	FIG.1
RD3015502	RD3015602	7.5	320	FIG.1
RD3015503	RD3015603	9	267	FIG.1
RD3015504	RD3015604	12	200	FIG.1
RD3015505	RD3015605	15	160	FIG.1
RD3015506	RD3015606	18	133	FIG.1
RD3015507	RD3015607	24	100	FIG.1
RD3015550	RD3015650	2 X 4.5	2 X 267	FIG.2
RD3015551	RD3015651	2 X 6	2 X 200	FIG.2
RD3015552	RD3015652	2 X 7.5	2 X 160	FIG.2
RD3015553	RD3015653	2 X 9	2 X 133	FIG.2
RD3015554	RD3015654	2 X 12	2 X 100	FIG.2
RD3015555	RD3015655	2 X 15	2 X 80	FIG.2
RD3015556	RD3015656	2 X 18	2 X 67	FIG.2
RD3015557	RD3015657	2 X 24	2 X 50	FIG.2

Encapsulated Transformer EI30 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70ºC max)
Insulation class-class B(130ºC )
Custom design available

TECHNICAL INFORMATION:
1. High capacity up to 3.2VA
2. Primary voltage from 24V to 440V
3. Secondary voltage 6V to 24V or 2x6V to 2x24V respectively
4. Minimum size available
5. Absolutely short-circuit-proof
6. Temperature class ta 40ºC /B and ta 70ºC /B
7. High electrical safety and long service-life properties
8. Quality test certified per item
