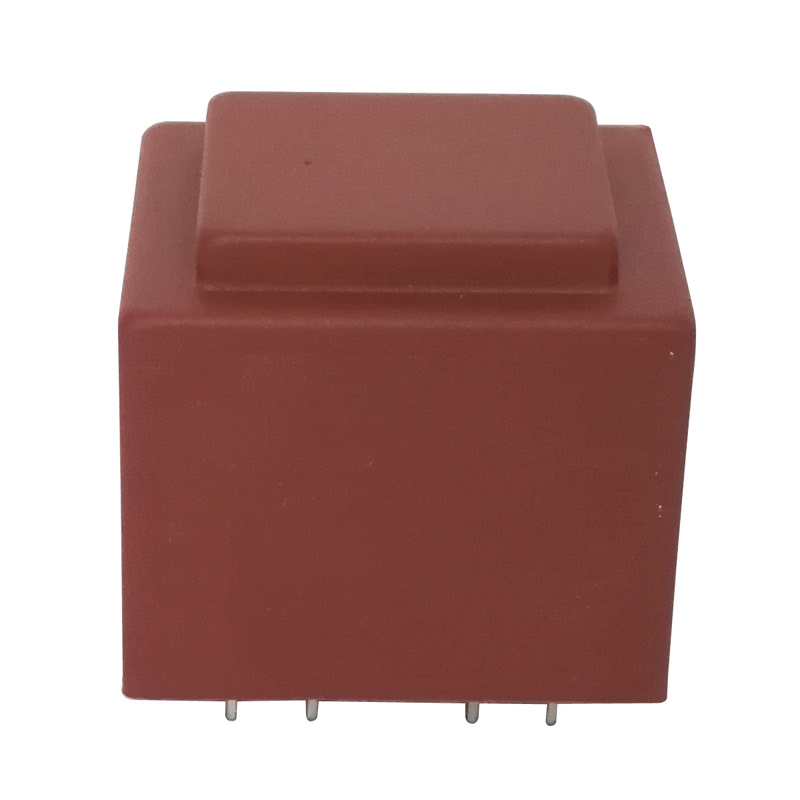

Low Frequency Transformer for Power Supply (EE20-10 0.5VA)

Quantity:
  • EE20-10 0.5VA
  • EE
  • Rd
  • Cartons
  • 0.035KG
  • China
Low Frequency Transformer for Power Supply (EE20-10 0.5VA)

Low Frequency Transformer for Power Supply (EE20-10 0.5VA) Low Frequency Transformer for Power Supply (EE20-10 0.5VA)
EE20-10 SERIES-0.5VA
PART NUMBER OUTPUT VOLTAGE(V) OUTPUT CURRENT(mA) CIRCUIT DIAGRAM
INPUT:230V INPUT:115V
RD2010000 RD2010100 4.5 111 FIG.1
RD2010001 RD2010101 6 83 FIG.1
RD2010002 RD2010102 7.5 67 FIG.1
RD2010003 RD2010103 9 56 FIG.1
RD2010004 RD2010104 12 42 FIG.1
RD2010005 RD2010105 15 33 FIG.1
RD2010006 RD2010106 18 28 FIG.1
RD2010007 RD2010107 24 21 FIG.1
RD2010050 RD2010150 2 X 4.5 2 X 56 FIG.2
RD2010051 RD2010151 2 X 6 2 X 42 FIG.2
RD2010052 RD2010152 2 X 7.5 2 X 33 FIG.2
RD2010053 RD2010153 2 X 9 2 X 28 FIG.2
RD2010054 RD2010154 2 X 12 2 X 21 FIG.2
RD2010055 RD2010155 2 X 15 2 X 17 FIG.2
RD2010056 RD2010156 2 X 18 2 X 14 FIG.2
RD2010057 RD2010157 2 X 24 2 X 10 FIG.2
Encapsulated Transformer EE20 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. High capacity from 0.35 to 0.5VA
2. Secondary voltage 6V to 24V or 2x6V to 2x24V respectively
3. Minimum size
4. Temperature class ta 70 /B
5. Maximum safety and long-term durability
6. Individually tested with certificate
7. Excellent reaction to temperature changes
8. Self-extinguishing cast housing and sealing material
