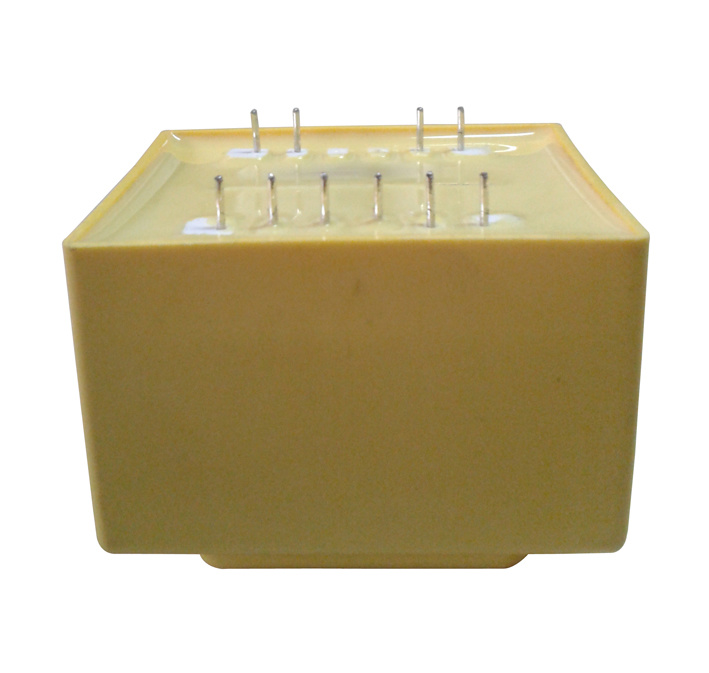

Encapsulated Transformer for Plower Supply (EI38-14 4.5VA)

Quantity:
  • EI3814 4.5VA
  • RD
  • Cartons
  • 0.15KG/PC
  • China

Encapsulated Transformer for Plower Supply (EI38-14 4.5VA)
Encapsulated Transformer for Plower Supply (EI38-14 4.5VA)

Encapsulated Transformer for Plower Supply (EI38-14 4.5VA)
EI38-14 SERIES-4.5VA

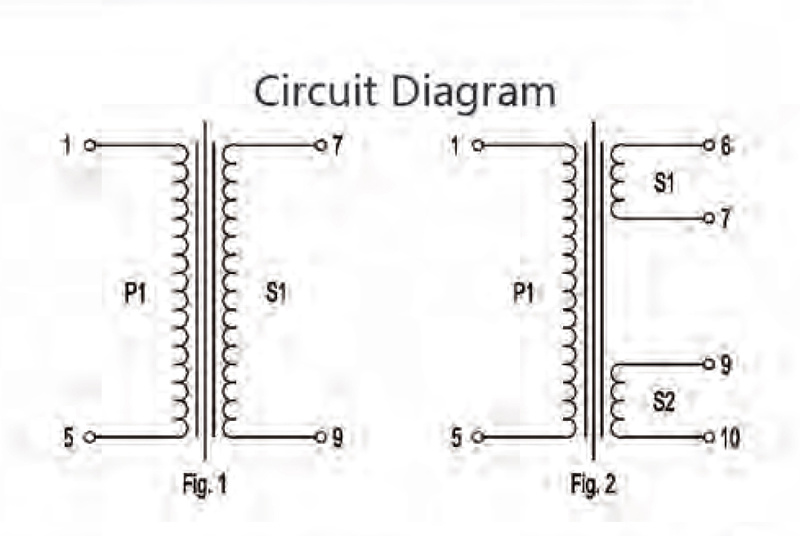

PART NUMBER OUTPUT VOLTAGE(V) OUTPUT CURRENT(mA) CIRCUIT DIAGRAM
INPUT:230V INPUT:115V
RD3814000 RD3814100 4.5 1000 FIG.1
RD3814001 RD3814101 6 750 FIG.1
RD3814002 RD3814102 7.5 600 FIG.1
RD3814003 RD3814103 9 500 FIG.1
RD3814004 RD3814104 12 375 FIG.1
RD3814005 RD3814105 15 300 FIG.1
RD3814006 RD3814106 18 250 FIG.1
RD3814007 RD3814107 24 188 FIG.1
RD3814050 RD3814150 2 X 4.5 2 X 500 FIG.2
RD3814051 RD3814151 2 X 6 2 X 375 FIG.2
RD3814052 RD3814152 2 X 7.5 2 X 300 FIG.2
RD3814053 RD3814153 2 X 9 2 X 250 FIG.2
RD3814054 RD3814154 2 X 12 2 X 188 FIG.2
RD3814055 RD3814155 2 X 15 2 X 150 FIG.2
RD3814056 RD3814156 2 X 18 2 X 125 FIG.2
RD3814057 RD3814157 2 X 24 2 X 94 FIG.2
Encapsulated Transformer EI38 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70ºC max)
Insulation class-class B(130ºC )
Custom design available
TECHNICAL INFORMATION:
1. High capacity up to 4.5VA
2. Non short-circuit-proof at temperature class ta 70ºC /B
3. Excellent temperature fluctuation resistance properties
4. High electrical safety and long service-life features
5. High voltage resistance
6. Self-extinguishing cast housing and sealing material
7. Certified item quality tested
