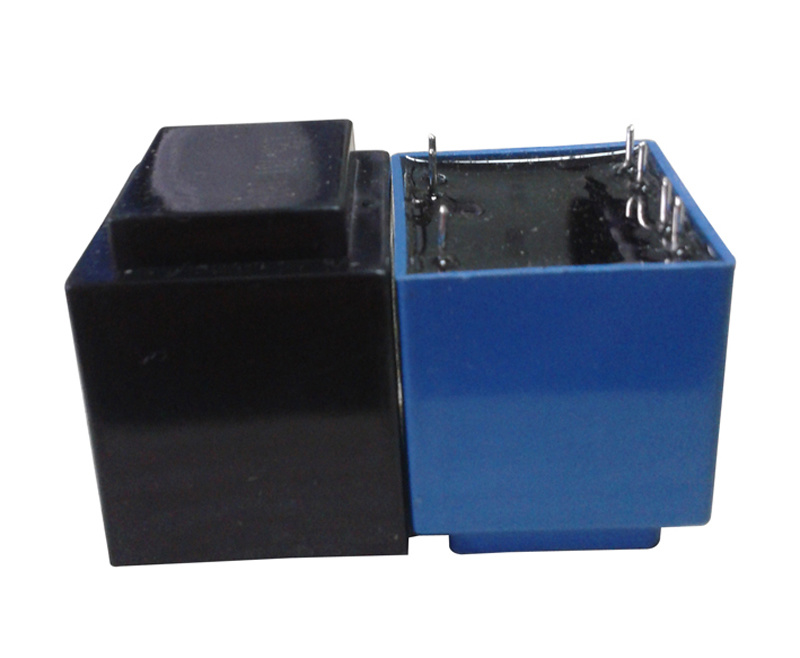

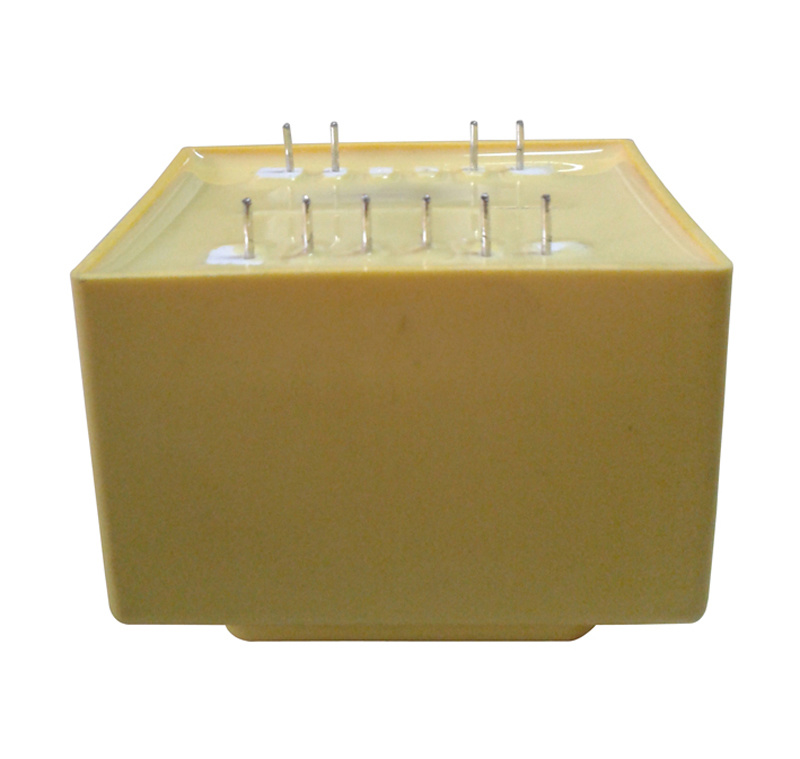

Encapsulated Transformer for Power Supply (EI48-20 12VA)

Quantity:
  • EI4820 12VA
  • Low Frequency
  • EI
  • RD
  • Cartons
  • 0.35KGS/PC
  • China
Encapsulated Transformer for Power Supply (EI48-20 12VA)
Encapsulated Transformer for Power Supply (EI48-20 12VA) Encapsulated Transformer for Power Supply (EI48-20 12VA) Encapsulated Transformer for Power Supply (EI48-20 12VA)
EI48-20 SERIES-12VA

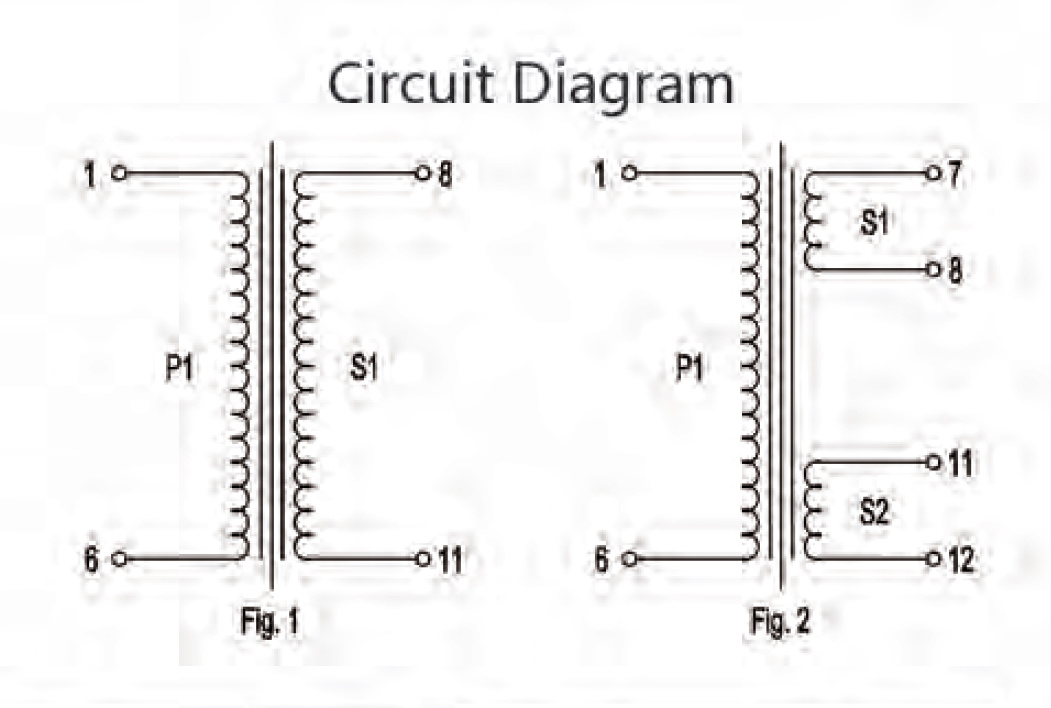

PART NUMBER OUTPUT VOLTAGE(V) OUTPUT CURRENT(mA) CIRCUIT DIAGRAM
INPUT:230V INPUT:115V
RD4820000 RD4820100 4.5 2667 FIG.1
RD4820001 RD4820101 6 2000 FIG.1
RD4820002 RD4820102 7.5 1600 FIG.1
RD4820003 RD4820103 9 1333 FIG.1
RD4820004 RD4820104 12 1000 FIG.1
RD4820005 RD4820105 15 800 FIG.1
RD4820006 RD4820106 18 667 FIG.1
RD4820007 RD4820107 24 500 FIG.1
RD4820050 RD4820150 2 X 4.5 2 X 1333 FIG.2
RD4820051 RD4820151 2 X 6 2 X 1000 FIG.2
RD4820052 RD4820152 2 X 7.5 2 X 800 FIG.2
RD4820053 RD4820153 2 X 9 2 X 667 FIG.2
RD4820054 RD4820154 2 X 12 2 X 500 FIG.2
RD4820055 RD4820155 2 X 15 2 X 400 FIG.2
RD4820056 RD4820156 2 X 18 2 X 333 FIG.2
RD4820057 RD4820157 2 X 24 2 X 250 FIG.2
Encapsulated Transformer EI48 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. High capacity up to 12.0VA
2. Non short-circuit-proof at temperature class ta 40 /B and ta 70 /B
3. Excellent temperature fluctuation resistance properties
4. High electrical safety and long service-life features
5. High voltage resistance
6. Self-extinguishing cast housing and sealing material
7. Certified item quality tested
