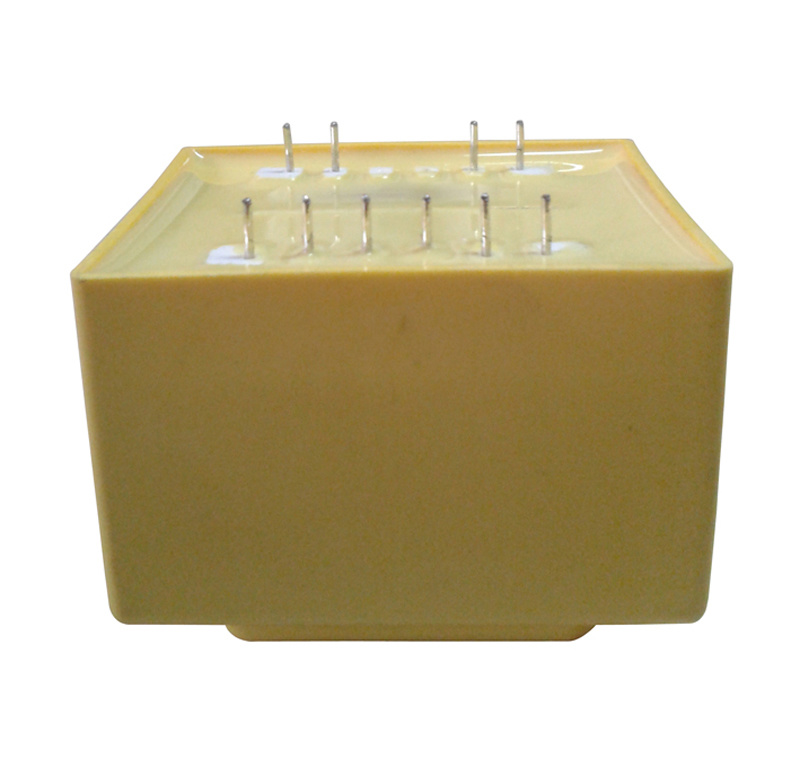

Low Frequency Transformer for Power Supply (EI30-5 0.6VA)

Quantity:
  • EI3005 0.6VA
  • Low Frequency
  • EI
  • RD
  • Cartons
  • 0.045KG/PC
Low Frequency Transformer for Power Supply (EI30-5 0.6VA)
Low Frequency Transformer for Power Supply (EI30-5 0.6VA) Low Frequency Transformer for Power Supply (EI30-5 0.6VA) Low Frequency Transformer for Power Supply (EI30-5 0.6VA)
EI30-5 SERIES-0.6VA

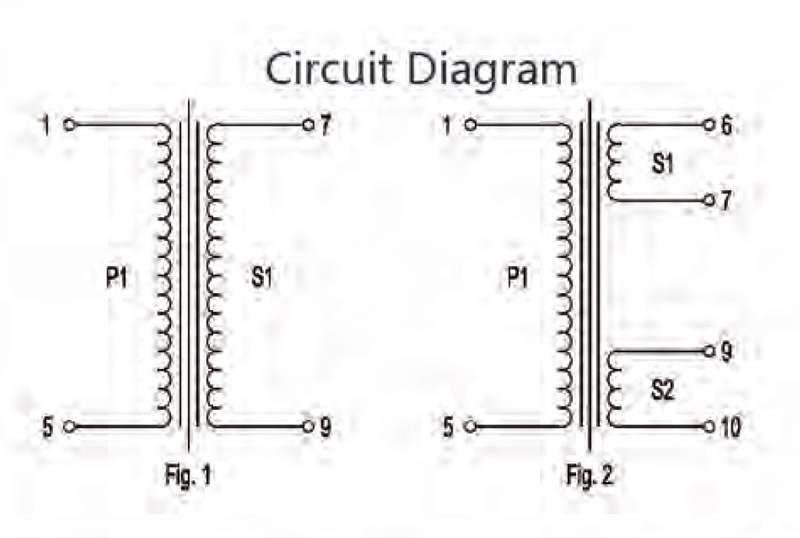

PART NUMBER OUTPUT VOLTAGE(V) OUTPUT CURRENT(mA) CIRCUIT DIAGRAM
INPUT:230V INPUT:115V
RD3005500 RD30055600 4.5 133 FIG.1
RD3005501 RD30055601 6 100 FIG.1
RD3005502 RD30055602 7.5 80 FIG.1
RD3005503 RD30055603 9 67 FIG.1
RD3005504 RD30055604 12 50 FIG.1
RD3005505 RD30055605 15 40 FIG.1
RD3005506 RD30055606 18 33 FIG.1
RD3005507 RD30055607 24 25 FIG.1
RD3005550 RD30055650 2 X 4.5 2 X 67 FIG.2
RD3005551 RD30055651 2 X 6 2 X 50 FIG.2
RD3005552 RD30055652 2 X 7.5 2 X 40 FIG.2
RD3005553 RD30055653 2 X 9 2 X 33 FIG.2
RD3005554 RD30055654 2 X 12 2 X 25 FIG.2
RD3005555 RD30055655 2 X 15 2 X 20 FIG.2
RD3005556 RD30055656 2 X 18 2 X 17 FIG.2
RD3005557 RD30055657 2 X 24 2 X 13 FIG.2

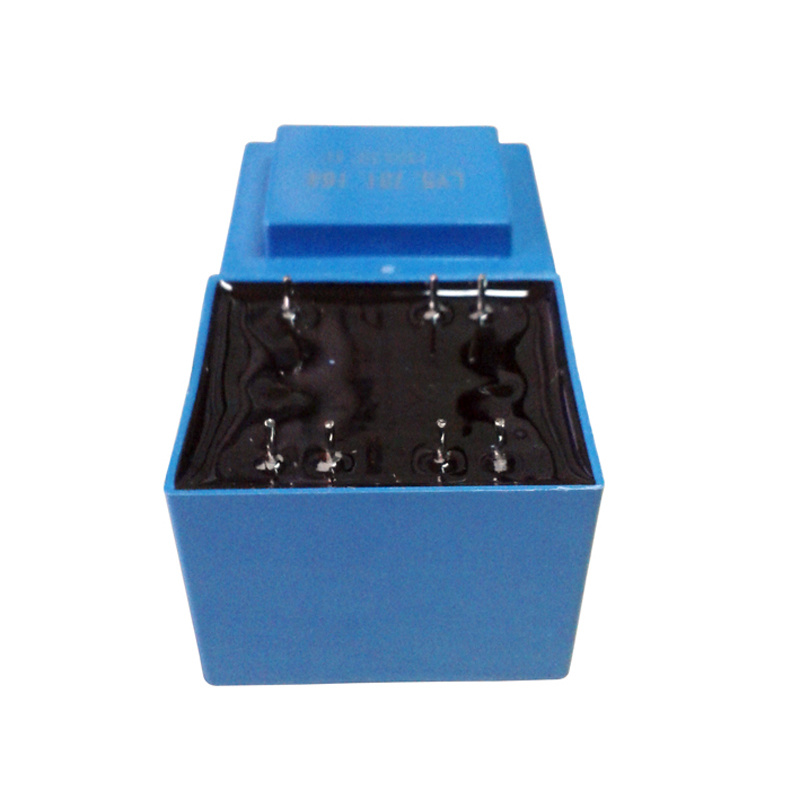

Encapsulated Transformer EI30 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70ºC max)
Insulation class-class B(130ºC )
Custom design available

TECHNICAL INFORMATION:
1. High capacity up to 3.2VA
2. Primary voltage from 24V to 440V
3. Secondary voltage 6V to 24V or 2x6V to 2x24V respectively
4. Minimum size available
5. Absolutely short-circuit-proof
6. Temperature class ta 40ºC /B and ta 70ºC /B
7. High electrical safety and long service-life properties
8. Quality test certified per item
