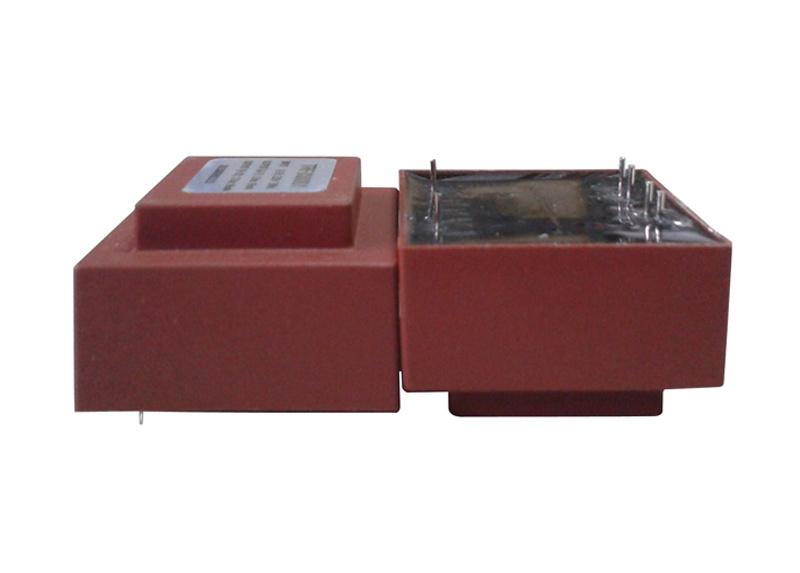

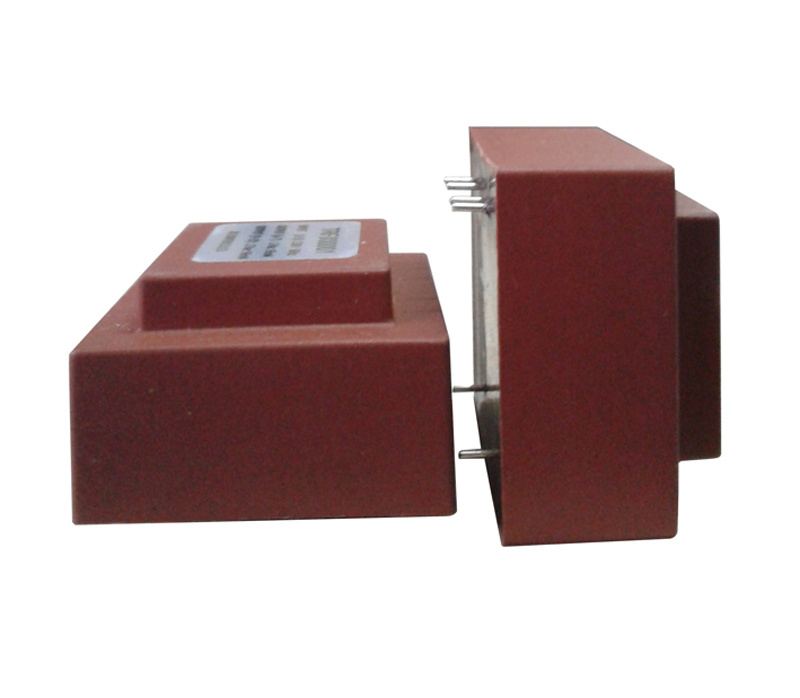

Encapsulated Transformer for Power Supply (EI54-18 13VA)

Quantity:
  • EI5418 13VA
  • Low Frequency
  • EI
  • RD
  • Cartons
  • 0.4KGS/PCS
  • China


Encapsulated Transformer for Power Supply (EI54-18 13VA) Encapsulated Transformer for Power Supply (EI54-18 13VA) Encapsulated Transformer for Power Supply (EI54-18 13VA) Encapsulated Transformer for Power Supply (EI54-18 13VA)
EI54-18 SERIES-13.0VA

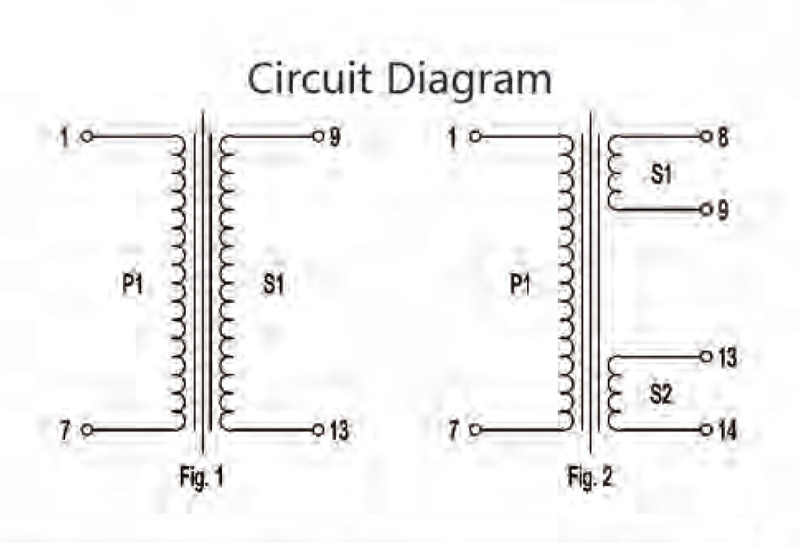

PART NUMBER OUTPUT VOLTAGE(V) OUTPUT CURRENT(mA) CIRCUIT DIAGRAM
INPUT:230V INPUT:115V
RD5418000 RD5418100 4.5 2889 FIG.1
RD5418001 RD5418101 6 2167 FIG.1
RD5418002 RD5418102 7.5 1733 FIG.1
RD5418003 RD5418103 9 1444 FIG.1
RD5418004 RD5418104 12 1083 FIG.1
RD5418005 RD5418105 15 867 FIG.1
RD5418006 RD5418106 18 722 FIG.1
RD5418007 RD5418107 24 542 FIG.1
RD5418050 RD5418150 2 X 4.5 2 X 1444 FIG.2
RD5418051 RD5418151 2 X 6 2 X 1083 FIG.2
RD5418052 RD5418152 2 X 7.5 2 X 867 FIG.2
RD5418053 RD5418153 2 X 9 2 X 722 FIG.2
RD5418054 RD5418154 2 X 12 2 X 542 FIG.2
RD5418055 RD5418155 2 X 15 2 X 433 FIG.2
RD5418056 RD5418156 2 X 18 2 X 361 FIG.2
RD5418057 RD5418157 2 X 24 2 X 271 FIG.2
Encapsulated Transformer EI54 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. High capacity up to 16.0VA
2. Non short-circuit-proof at temperature class ta 40 /B and ta 70 /B
3. Excellent temperature fluctuation resistance properties
4. High electrical safety and long service-life features
5. High voltage resistance
6. Self-extinguishing cast housing and sealing material
7. Certified item quality tested
