Encapsulated Transformer for Power Supply (EI48-16 8VA)

Quantity:
  • EI4816 8VA

  • Low Frequency

  • EI

  • RD

  • Cartons

  • 0.3KGS/PC

  • China

Encapsulated Transformer for Power Supply (EI48-16 8VA)
Encapsulated Transformer for Power Supply (EI48-16 8VA) Encapsulated Transformer for Power Supply (EI48-16 8VA) Encapsulated Transformer for Power Supply (EI48-16 8VA)
EI48-16 SERIES-8VA

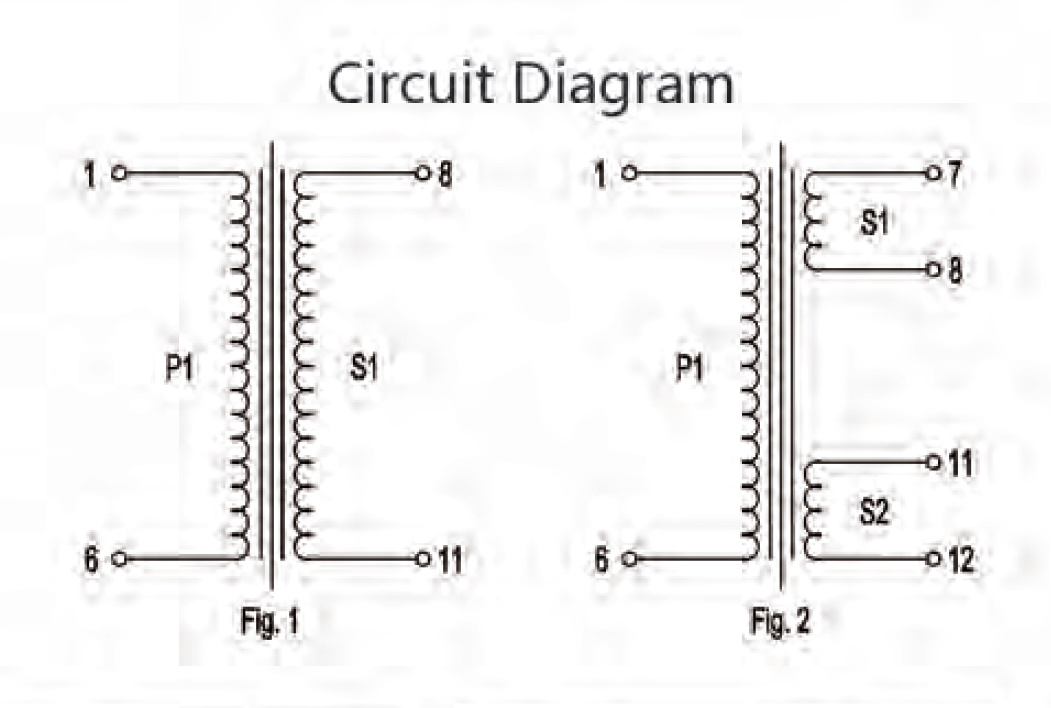

PART NUMBER OUTPUT VOLTAGE(V) OUTPUT CURRENT(mA) CIRCUIT DIAGRAM
INPUT:230V INPUT:115V
RD4816000 RD4816100 4.5 1778 FIG.1
RD4816001 RD4816101 6 1333 FIG.1
RD4816002 RD4816102 7.5 1067 FIG.1
RD4816003 RD4816103 9 889 FIG.1
RD4816004 RD4816104 12 667 FIG.1
RD4816005 RD4816105 15 533 FIG.1
RD4816006 RD4816106 18 444 FIG.1
RD4816007 RD4816107 24 333 FIG.1
RD4816050 RD4816150 2 X 4.5 2 X 889 FIG.2
RD4816051 RD4816151 2 X 6 2 X 667 FIG.2
RD4816052 RD4816152 2 X 7.5 2 X 533 FIG.2
RD4816053 RD4816153 2 X 9 2 X 444 FIG.2
RD4816054 RD4816154 2 X 12 2 X 333 FIG.2
RD4816055 RD4816155 2 X 15 2 X 267 FIG.2
RD4816056 RD4816156 2 X 18 2 X 222 FIG.2
RD4816057 RD4816157 2 X 24 2 X 167 FIG.2

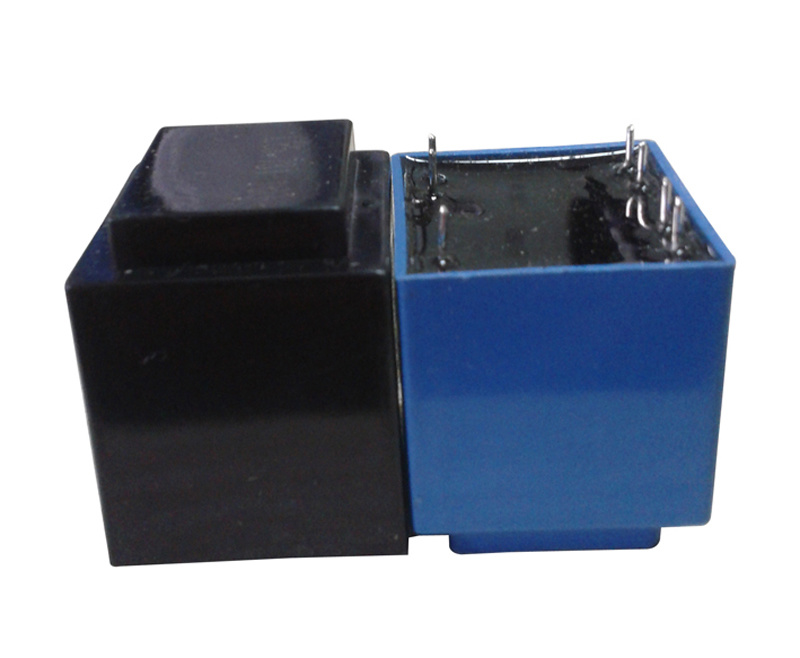

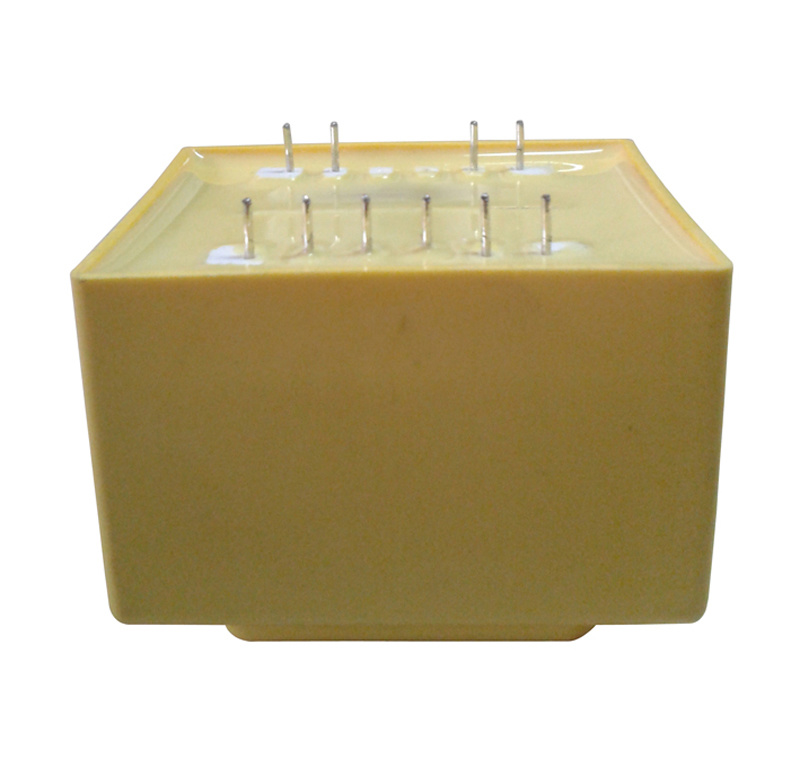

Encapsulated Transformer EI48 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. High capacity up to 12.0VA
2. Non short-circuit-proof at temperature class ta 40 /B and ta 70 /B
3. Excellent temperature fluctuation resistance properties
4. High electrical safety and long service-life features
5. High voltage resistance
6. Self-extinguishing cast housing and sealing material
7. Certified item quality tested
