Encapsulated Transformer for Power Supply (EI42-14 5.0VA)

Quantity:
  • EI4214

  • Low Frequency

  • EI

  • RD

  • Cartons

  • 0.2KG/PC

  • China

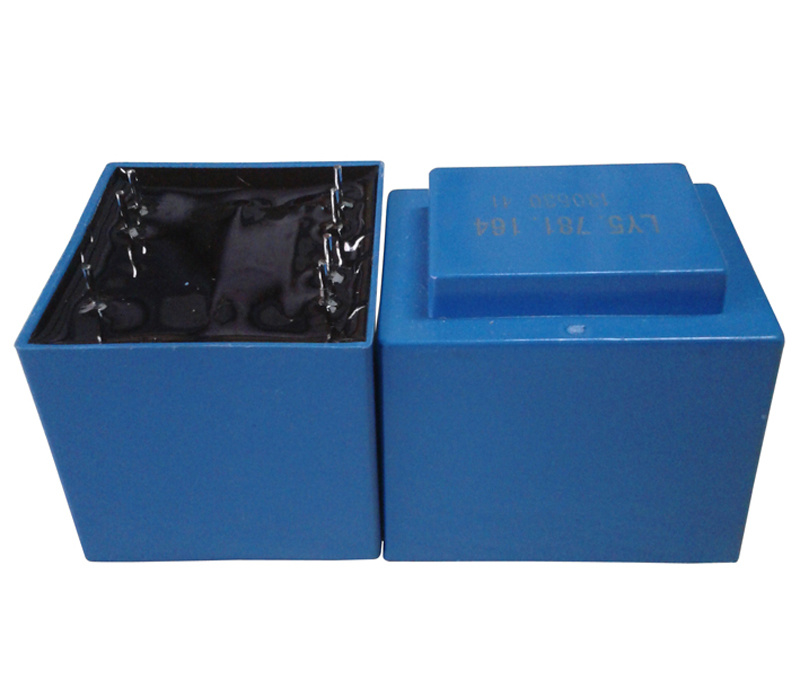

Encapsulated Transformer for Power Supply (EI42-14 5.0VA)
Encapsulated Transformer for Power Supply (EI42-14 5.0VA) Encapsulated Transformer for Power Supply (EI42-14 5.0VA) Encapsulated Transformer for Power Supply (EI42-14 5.0VA)
EI42-14 SERIES-5.0VA

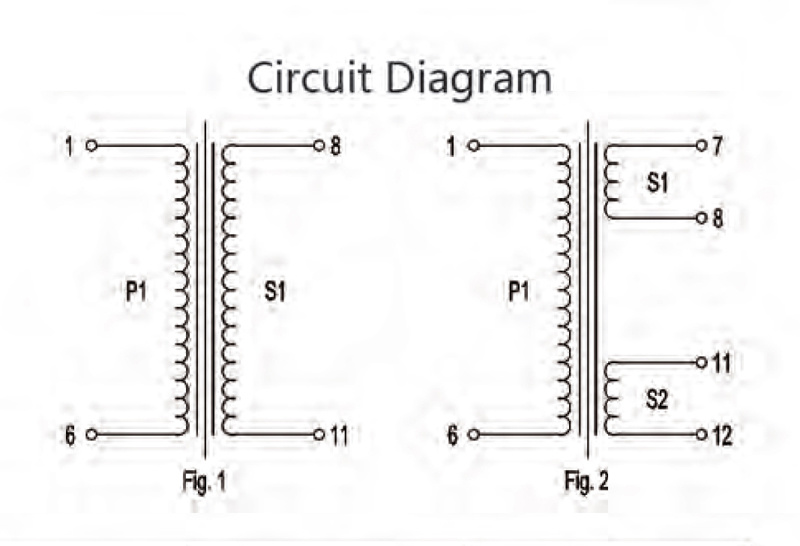

PART NUMBER OUTPUT VOLTAGE(V) OUTPUT CURRENT(mA) CIRCUIT DIAGRAM
INPUT:230V INPUT:115V
RD4214000 RD4214100 4.5 1111 FIG.1
RD4214001 RD4214101 6 833 FIG.1
RD4214002 RD4214102 7.5 667 FIG.1
RD4214003 RD4214103 9 556 FIG.1
RD4214004 RD4214104 12 417 FIG.1
RD4214005 RD4214105 15 333 FIG.1
RD4214006 RD4214106 18 278 FIG.1
RD4214007 RD4214107 24 208 FIG.1
RD4214050 RD4214150 2 X 4.5 2 X 556 FIG.2
RD4214051 RD4214151 2 X 6 2 X 417 FIG.2
RD4214052 RD4214152 2 X 7.5 2 X 333 FIG.2
RD4214053 RD4214153 2 X 9 2 X 278 FIG.2
RD4214054 RD4214154 2 X 12 2 X 208 FIG.2
RD4214055 RD4214155 2 X 15 2 X 167 FIG.2
RD4214056 RD4214156 2 X 18 2 X 139 FIG.2
RD4214057 RD4214157 2 X 24 2 X 104 FIG.2

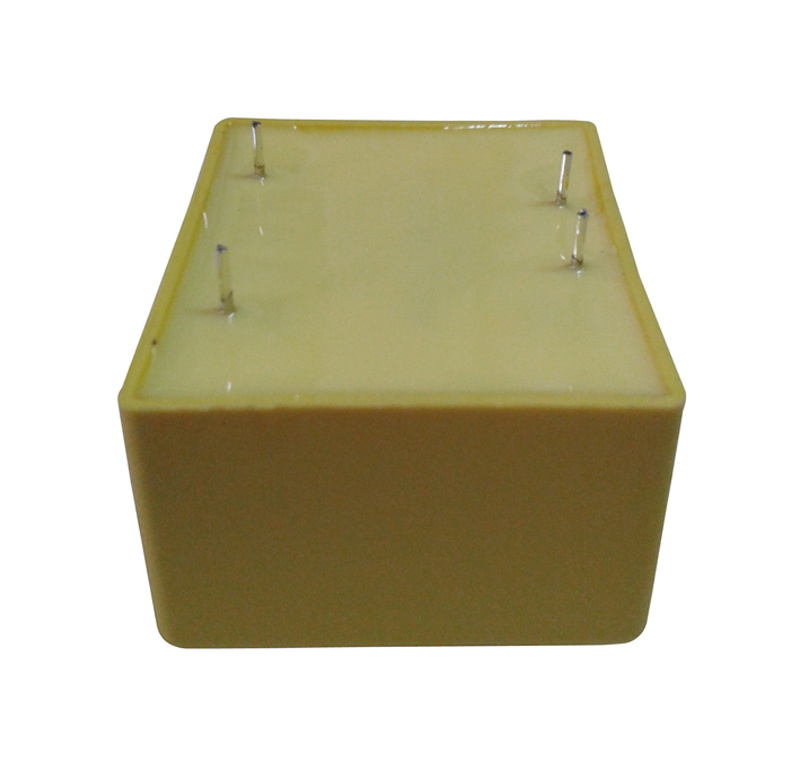

Encapsulated Transformer EI42 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. High capacity up to 6.0VA
2. Non short-circuit-proof at temperature class ta 40 /B and ta 70 /B
3. Excellent temperature fluctuation resistance properties
4. High electrical safety and long service-life features
5. High voltage resistance
6. Self-extinguishing cast housing and sealing material
7. Certified item quality tested
