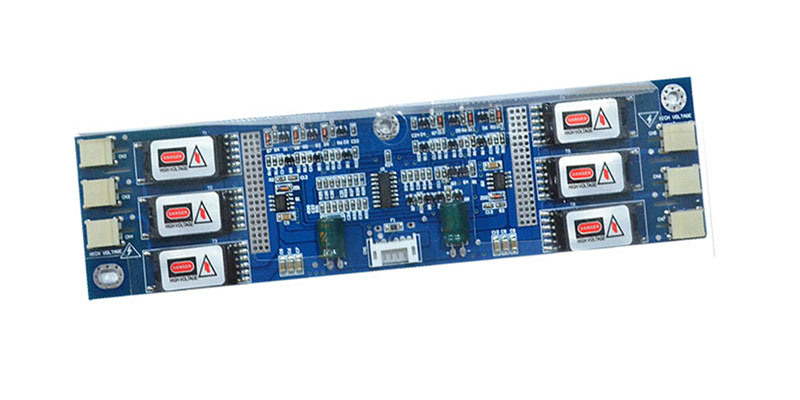

6 Lamps Small Pin Inverter for LCD Display

Quantity:
  • 6 Lamps Small Pin Inverter

6 Lamps Small Pin Inverter for LCD Display
Pin Assignments
Pin Number Symbol Description Parameter
Input connector:
1,2 VCC Supply voltage 10.8V-(12V)-13.2V
3 N/F Standby/operation On=1.5--5.0V Off=0-0.5V
4 ADJ Dimming control 0V=Max Brightness
5V=Min Brightness
5,6 GND Ground 0V
Output connector:
1 H-V High voltage 720Vrms
2 L-V Low voltage 0-18Vrms
Technical Parameters
Item Symbol TestConditions Min Type Max Unit
Input parameters
Input voltage Vin 10.8 12 13.2 V
Input current Iin 1.8 2.5 3.0 A
Input power Pin -- 36 -- W
Brighter control voltage Vbri 0 -- 5 V
The switching machine control voltage N/F Enable Von=1.5--5.0V Disable Voff=0--0.5V
Output electrical parameters
Output current Lout Vin=12.0V;V0n=5V;Ta=25ºC 2.2 7 9 mA
Output voltage Vou Vin=12.0V;V0n=5V;Ta=25ºC -- 720 1300 Vrms
Start-up voltage Vigl Vin=12.0V;Von=5V;Ta=25ºC 1100 1500 1700 Vrms
Output frequency f Vin=12.0V;Von=5V;load=6mA;Ta=25ºC 40 50 70 KHz
Efficiency η Vin=12.0V;Von=5V;Load=80KΩ 87 -- -- %
  1. General Description
This DC-AC Inverter was developed for 6CCFL lamps of LCD back lighting system.
  1. 'Features
High performance, low consumption.
Open lamp protection
Wide Dimming Range
Lamp Current Balance Control
Input current overload protected ( fuse protect ).
  1. Application
The DC to AC back-light inverter is special designed on any type LCD display in implement (i.e. LCD monitor;LCD TV)
  1. Suitable load
20.1"-22" 6 Lamps TFT LCD Module/20.1 inch~22 inch 6 Lamp TFT LCD
