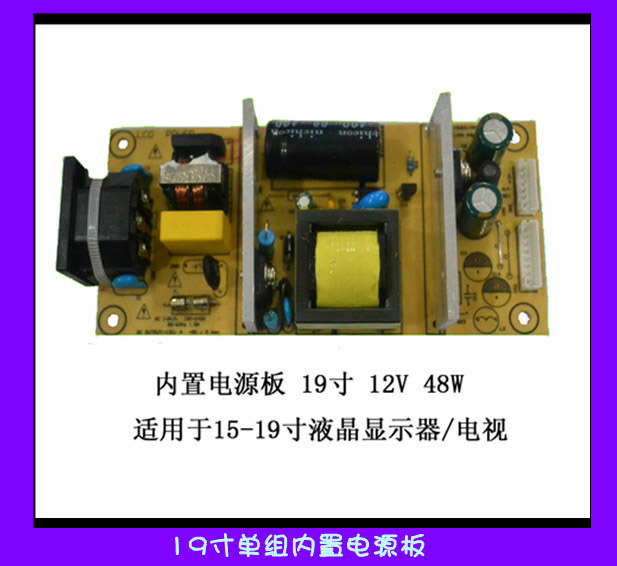

CHD-LCD TV/POWER19N****
Features
The power supply is designed for LCD LIPS POWER Combo Power: Suitable for 15 "-19" liquid crystal display (LCD MONITOR), (LCD TV) LCD TV built-in one-way (+12 V) Dual (+12 V +5 Vcombo) power supply, power supply, the power with CN3 connection seat, can be connected directly to the company's high-pressure plates combo Power, any combination, more convenient to use, from the original two-in-one power structure affect. 90 -264VAC input with low standby power consumption, high power factor, small size, high efficiency, stable operation and high reliability; Overvoltage, overcurrent and short circuit protection
Note:
1. Power of two voltage output is not suitable for the use of a single set of voltage; Ensure power supply stability and service life Do not over-given power
2. CHD-LCD TV/POWER19N12 for a single set of voltage output CN2-1, 2: NC; CN2-3, 4: +12 V
3. CHD-LCD TV/POWER19N1205 for the two sets of voltage output CN2-1, 2: +5 V; CN2-3, 4: +12 V
4. CN2-LCD CONTROL BOARD; CN3-matching LCD INVERTER (CHD-01S06V; CHD-02S06V...)
| | CHD-LCD TV/POWER19N**** | | |
| | | | | | | | | |
| ADAPTER ELECTRICAL CHARACTERISTICS | | | | |
| Model | PARAMETER | MIN | TYPE | MAX | Unit |
| Input voltage | 100 | 220 | 264 | Vac |
| Input AC frequency | 47 | 50 | 63 | Hz |
| Input current | *** | *** | 1.5 | A |
| CHD-LCD TV/POWER19N1205 | Vout | 11.4 | 12 | 12.6 | Vdc |
| 4.75 | 5 | 5.25 | Vdc |
| Iout | 12V | *** | *** | 2.8 | A |
| 5V | *** | *** | 3 | A |
| Ripple & noise: | 12V | *** | *** | 120 | mV |
| 5V | *** | *** | 50 | mV |
| CHD-LCD TV/POWER19N12 | Vout | 11.4 | 12 | 12.6 | Vdc |
| Iout | 12V | *** | *** | 4 | A |
| Ripple & noise: | 12V | *** | *** | 120 | mV |
| | | | | | | | | |
| Protection: | | | | | | | |
| | 1: DC output Over Voltage Protection | 2: DC Output Over current Protection | 3: DC Output Short Circuit Protection | 4: Reset After Shutdown |
| |
| | |
| | | | | | | | | |
| Dimension | | | | | | | |
| | *L 147mm *W 55mm *H 23mm (L *W * H ) | | | |
| | | | | | | | | |
| Pin Connection | | | | | | | |
| | INPUT: CN1, CN2, CN3 | | | | | |
| | Pin | Symbol | Description | Voltage |
| | CN1-L, N | Vin | AC Voltage | 100~264Vac |
| | CN2-8 | N/F | INVERTER | On=2.8~5.0V Off=0~1.0V |
| | CN2-7 | ADJ | INVERTER | 0V=Bright ( Max ) 5.0V=Bright ( Min ) |
| | CN2-5, 6 | GND | GND | 0V |
| | CN2-3, 4 | Vout | Supply voltage | +12V |
| | CN2-1, 2 | Vout | Supply voltage | +5V |
| | CN3 | LCD INVERTER(CHD-01S06V; CHD-02S06^^)Can match the inverter |
