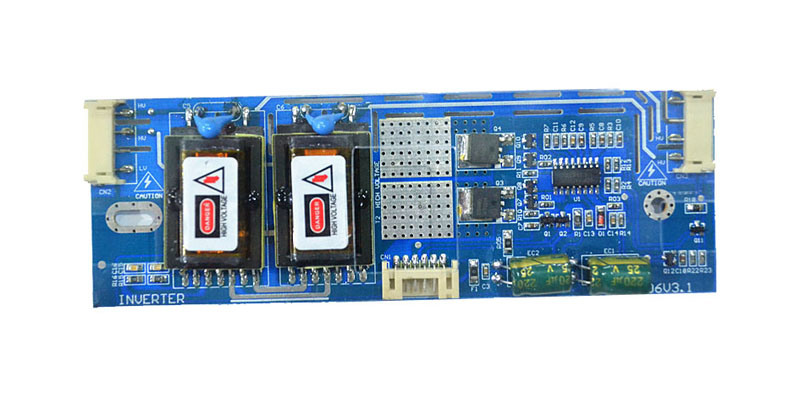

4Lamps big pin
Pin Assignments | ||||||
Pin Number | Symbol | Description | Parameter | |||
Input connector: | ||||||
1,2 | VCC | Supply voltage | 10.8V-(12V)-13.2V | |||
3 | N/F | Standby/operation | On=1.5--5.0V Off=0-0.5V | |||
4 | ADJ | Dimming control | 0V=Max Brightness | |||
5V=Min Brightness | ||||||
5,6 | GND | Ground | 0V | |||
Output connector: | ||||||
1 | H-V | High voltage | 680Vrms | |||
2 | L-V | Low voltage | 0-18Vrms | |||
Technical Parameters | ||||||
Item | Symbol | Test Conditions | Min | Type | Max | Unit |
Input parameters | ||||||
Input voltage | Vin | 10.8 | 12 | 13.2 | V | |
Input current | Iin | 1.5 | 1.8 | 2.4 | A | |
Input power | Pin | -- | 23 | -- | W | |
Brighter control voltage | Vbri | 0 | -- | 5 | V | |
The switching machine control voltage | N/F | Enable Von=1.5--5.0V Disable Voff=0--0.5V | ||||
Output electrical parameters | ||||||
Output current | Lout | Vin=12.0V;V0n=5V;Ta=25ºC | 2.5 | 6.5 | 7.3 | mA |
Output voltage | Vou | Vin=12.0V;V0n=5V;Ta=25ºC | -- | 680 | 1300 | Vrms |
Start-up voltage | Vigl | Vin=12.0V;Von=5V;Ta=25ºC | 1300 | 1720 | -- | Vrms |
Output frequency | f | Vin=12.0V;Von=5V;load=6mA;Ta=25ºC | 40 | 61.5 | 70 | KHz |
Efficiency | η | Vin=12.0V;Von=5V;Load=80KΩ | 87 | -- | -- | % |
