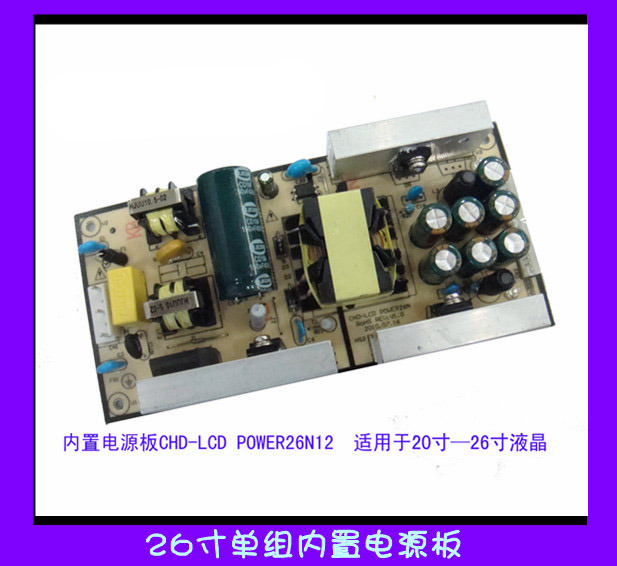

Power Driver for LCD TV (26n12)

Quantity:
  • 26N12
Power Driver for LCD TV (26n12)

CHD-LCD TV/POWER26N****

ADAPTER ELECTRICAL CHARACTERISTICS
ModelPARAMETERMINTYPEMAXUnit
Input voltage100220264VAC
Input AC frequency475063Hz
Input current******2A
CHD-LCD TV/POWER26N2412Vout22.82425.2VDC
11.41212.6VDC
Iout24V******2.5A
12V******3A
Ripple & noise: 24V******240mV
12V******120mV
CHD-LCD TV/POWER26N12Vout11.41212.6VDC
Iout12******8A
Ripple & noise: 12******120mV
CHD-LCD TV/POWER26N24Vout22.82425.2VDC
Iout24V******4A
Ripple & noise: 24V******240mV
CHD-LCD TV/POWER26N24+Vout22.82425.2VDC
Iout24V******5A
Ripple & noise: 24V******240mV

Protection:
1: DC output Over Voltage Protection2: DC Output Over current Protection3: DC Output Short Circuit Protection4: Reset After Shutdown

Dimension
*L 155mm *W 75mm *H 26mm (L *W * H )

Pin Connection
INPUT: CN1, CN2, CN3
PinSymbolDescriptionVoltage
CN1-L. NVinAC Voltage100~264VAC
CN2-1.2.3.4VoutSupply voltage+24V
CN2-5.6.7.8GNDGND0V
CN3-1.2.3VoutSupply voltage+12V
CN3-4.5.6GNDGND0V

Features
The power supply is designed for LCD TV power: Suitable for 20 "-26" liquid crystal display (LCD MONITOR), (LCD TV) LCD TV built-in one-way (+24 V) Dual (+24 V +12 V) power supply
90 - 264VAC input with low standby power consumption, high power factor, small size, high efficiency, stable operation and high reliability; Overvoltage, overcurrent, short-circuit protection function
Note: Power of two voltage output is not suitable for the use of a single set of voltage; Ensure power supply stability and service life Do not over-given power
CHD-LCD TV/POWER26N2412 for the two sets of voltage output CN2-1, 2, 3, 4: +24 V; CN3-1, 2, 3, 4: +12 V
CHD-LCD TV/POWER26N12 for a single set the voltage output CN3-1, 2, 3, 4: +12 V CN2-1, 2, 3, 4: +12 V
CHD-LCD TV/POWER26N24 for a single set of voltage output CN2-1, 2, 3, 4: +24 V CN3-1, 2, 3, 4: NC
CHD-LCD TV/POWER26N24 + CN2-1, 2, 3, 4: +24 V CN3-1, 2, 3, 4: +24 V output for a single set of voltage
