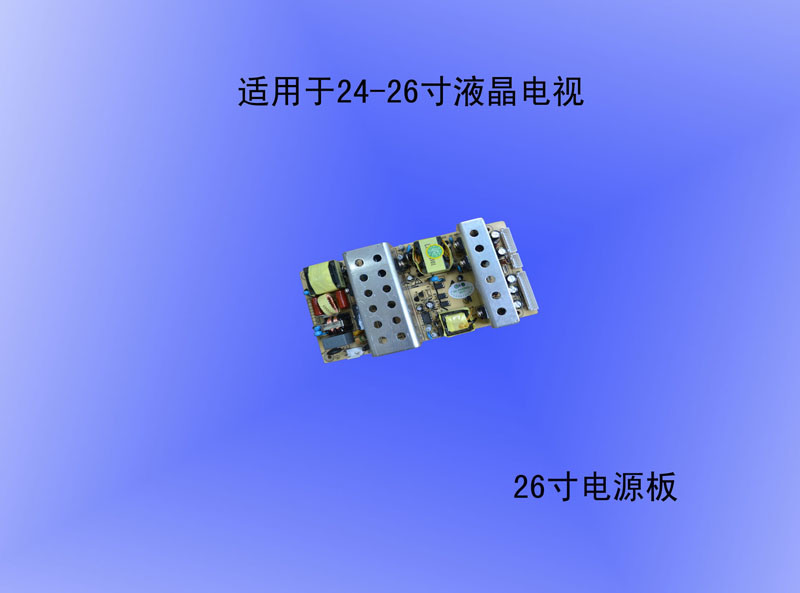

120W Power Supply for LED TV (26n24+)

Quantity:
  • 26N24+
  • 8529
120W Power Supply for LED TV (26n24+)
PRODUCT SPECIFICATIONS
MODEL:CHD-LCD TV/POWER26N
INPUT CHARACTERISTICS
THE INPUT VOLTAGE 90Vac~264Vac
Nominal input 100Vac~240Vac
Frequency range 50Hz/60Hz±5%
Carrying the input current 1.5Amax
Surge current 50Ap(120Vac); 100A p(220Vac)
efficiency ≥80%min(220Vac)
Harmonic current Accord withGB17625.1-1998/IEC61000-3-2 class D
Leakage current <0.75mA,(230Vac)
Standby power consumption ≤1W,Output power≤0.1W
Input insurance T3.15A/250Vac
OUTPUT CHARACTERISTICS
Output voltage Adjustment rate Minimum current The maximum current The maximum power
+24V +24V±5% 0.1 A 3A 90W
+12V +12V±5% 0.1 A 1.5A
+5.0V +5.0V±5% 0.1 A 1.5A 15W
+5.0V(STB) +5.0V±5% 0.1 A 1A
Peak current test is in other rated load test, and pulse width less than 100 milliseconds.
Protection function
1: output over-voltage protection 2: output over-current protection
3: output short-circuit protection 4: protection function restoration
Control function
Except 5.0 Vsb, the rest output is controlled by a TTL level compatible signals (Ps - on p 2.5 V / 2.0 mA), 5.0 Vsb on electricity existed
* Ps - on high level, open the output.
* Ps - on low-level, shut off the output.
Physical size
* 171mm *91mm *32mm (L *W * H )
Connector feet definition
CON1 connection tube foot function
NO. Tube feet Function
1. AC-L Ac input lines
2. AC-N Ac input NUTURE
Pin pitch 3.96 mm
CON2connection tube foot function
NO. Tube feet Function
5.6.7.8 +24V +24VDC output
1.2.3.4 COM +24VDC return
CON3connection tube foot function
NO. Tube feet Function
3.4. +24V +24VDC output
1.2 COM +24VDC return
CON4connection tube foot function
NO. Tube feet Function
1.2 +12V +12V output
3.4.5 COM Output loop
6.7 +5V +5V output
8 +5VSB +5VSB(standby) output
9 ON/OFF STBY/SMPS switch control(ON = HIGH)
10.11 +5V +5V output
12.13 COM Output loop
Product features:
The power is designed for the special power LCDTV:suitable to 24-26 inch LCD TV
90-264Vac input, with low standby power, high power factor, small size, high efficiency, stable work,
High reliability characteristics etc., Have over-voltage protection, short circuit protection, and other functions.
