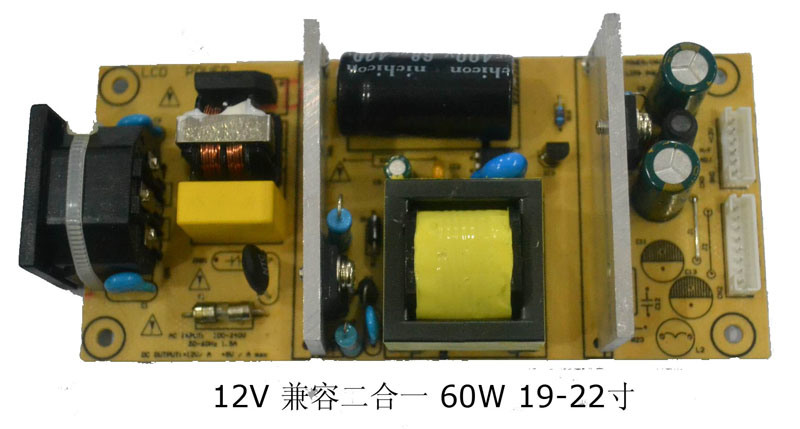

60W Power Supply for 19-22 Inch LCD TV (22N1205)

Quantity:
  • 22N1205
60W Power Supply for 19-22 Inch LCD TV (22N1205)

CHD-LCD TV/POWER22N****

Features
The power supply is designed for LCD LIPS POWER Combo Power: Suitable for 15 "-19" liquid crystal display (LCD MONITOR), (LCD TV) LCD TV built-in one-way (+12 V) Dual (+12 V +5 Vcombo) power supply, power supply, the power with CN3 connection seat, can be connected directly to the company's high-pressure plates combo Power, any combination, more convenient to use, from the original two-in-one power structure affect. 90 -264VAC input with low standby power consumption, high power factor, small size, high efficiency, stable operation and high reliability; Overvoltage, overcurrent and short circuit protection

Note:
1. Power of two voltage output is not suitable for the use of a single set of voltage; Ensure power supply stability and service life Do not over-given power
2. CHD-LCD TV/POWER19N12 for a single set of voltage output CN2-1, 2: NC; CN2-3, 4: +12 V
3. CHD-LCD TV/POWER19N1205 for the two sets of voltage output CN2-1, 2: +5 V; CN2-3, 4: +12 V
4. CN2-LCD CONTROL BOARD; CN3-matching LCD INVERTER (CHD-01S06V; CHD-02S06V...)
CHD-LCD TV/POWER22N****
ADAPTER ELECTRICAL CHARACTERISTICS
Model PARAMETER MIN TYPE MAX Unit
Input voltage 100 220 264 Vac
Input AC frequency 47 50 63 Hz
Input current *** *** 1.5 A
CHD-LCD TV/POWER22N1205 Vout 11.4 12 12.6 Vdc
4.75 5 5.25 Vdc
Iout 12V *** *** 3.8 A
5V *** *** 3 A
Ripple & noise: 12V *** *** 120 mV
5V *** *** 50 mV
CHD-LCD TV/POWER22N12 Vout 11.4 12 12.6 Vdc
Iout 12V *** *** 5 A
Ripple & noise: 12V *** *** 120 mV
Protection:
1: DC output Over Voltage Protection 2: DC Output Over current Protection 3: DC Output Short Circuit Protection 4: Reset After Shutdown
Dimension
*L 147mm *W 55mm *H 23mm (L *W * H )
Pin Connection
INPUT: CN1, CN2, CN3
Pin Symbol Description Voltage
CN1-L, N Vin AC Voltage 100~264Vac
CN2-8 N/F INVERTER On=2.8~5.0V Off=0~1.0V
CN2-7 ADJ INVERTER 0V=Bright ( Max ) 5.0V=Bright ( Min )
CN2-5, 6 GND GND 0V
CN2-3, 4 Vout Supply voltage +12V
CN2-1, 2 Vout Supply voltage +5V
CN3 LCD INVERTER(CHD-01S06V; CHD-02S06V^^)Can match the inverter
