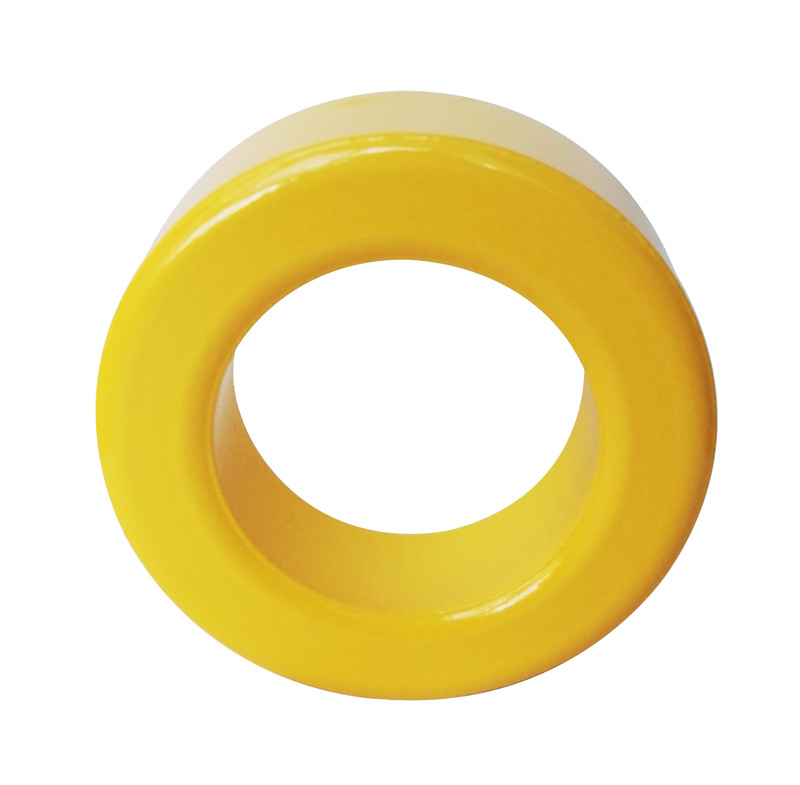

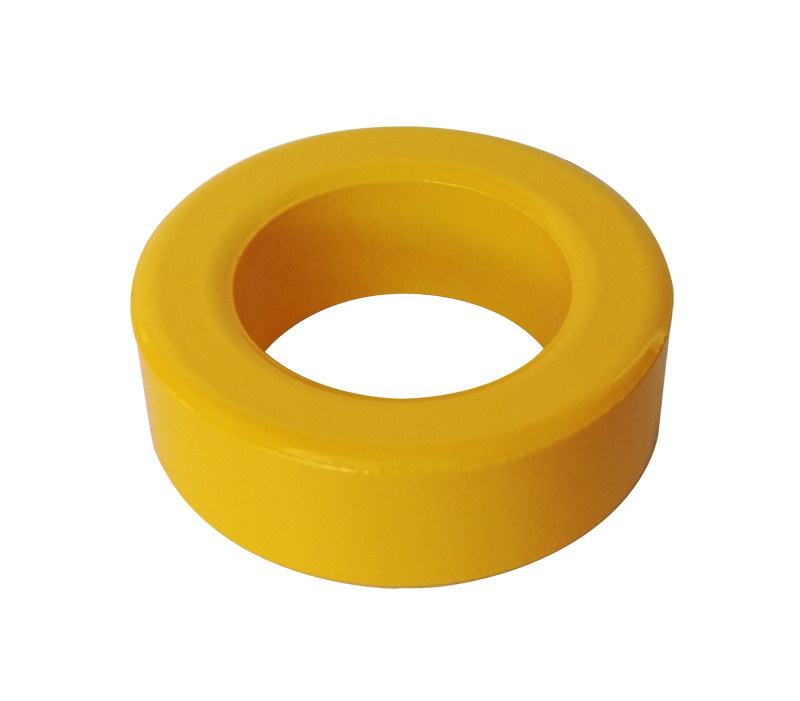

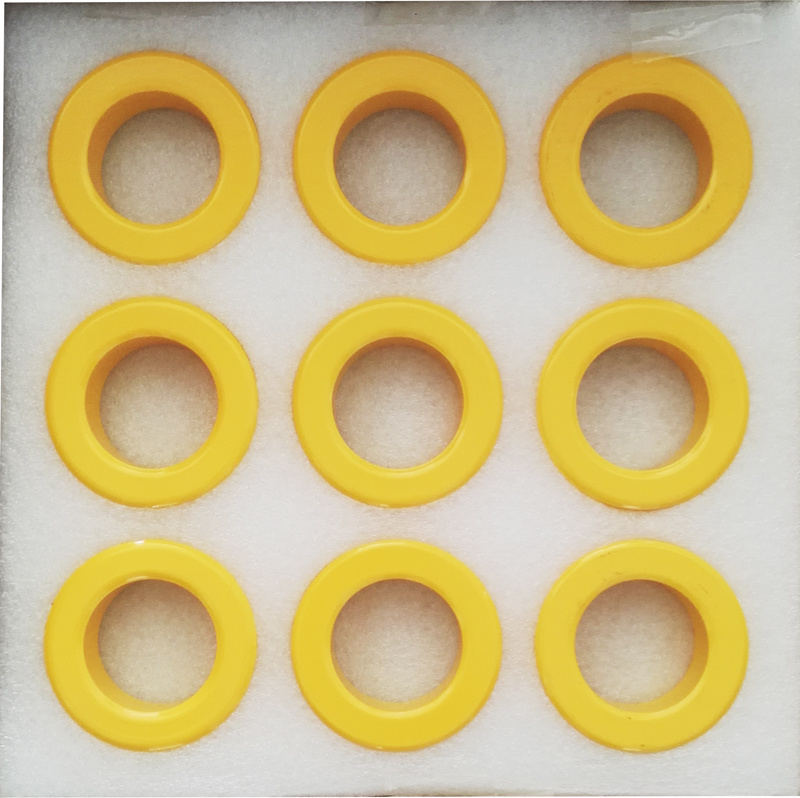

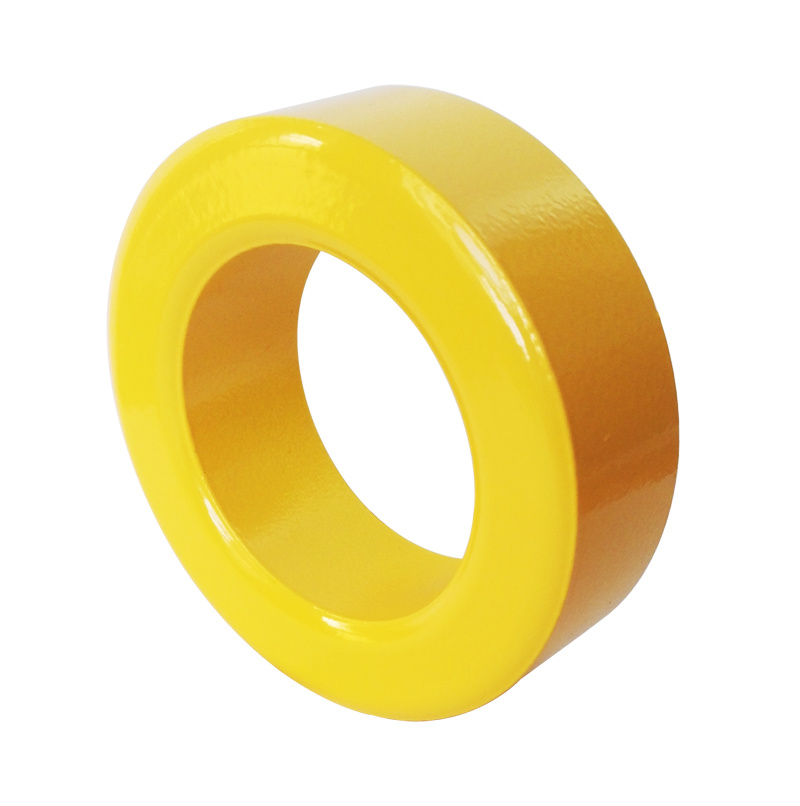

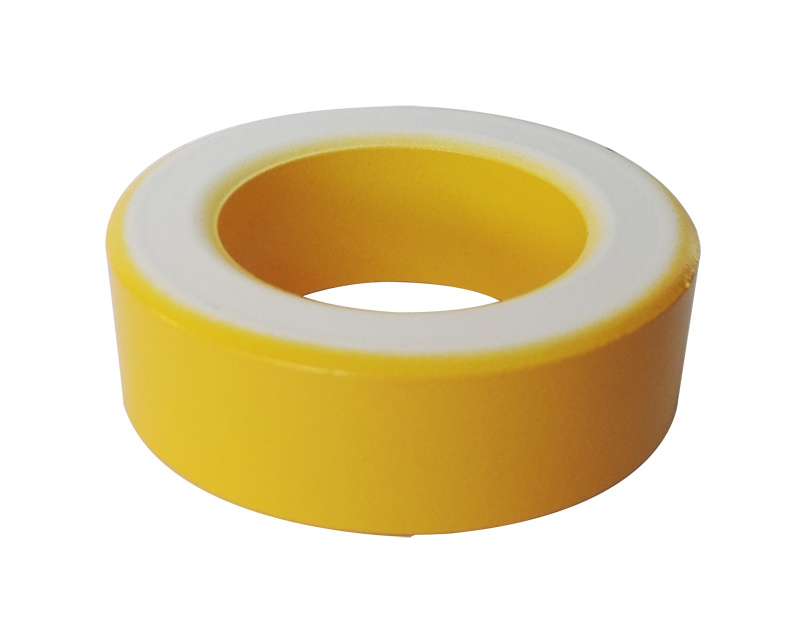

Toroidal Cores for Deal with EMC (T300-26D)

Quantity:
  • T300-26D
  • 85299081
Toroidal Cores for Deal with EMC (T300-26D)

Toroidal Cores for Deal with EMC (T300-26D)
Toroidal Cores for Deal with EMC (T300-26D)
Toroidal Cores for Deal with EMC (T300-26D)
Toroidal Cores for Deal with EMC (T300-26D)

T300-26D
AL=160.0 OD=77.50mm ID=49.00mm HT=26.00mm
Temperature effects:
The cores will be suited for operation from -55ºC~+125ºC,it has a high curie temperature and will function to several hundred degrees Celsius .However long time continued high temperature operations may result in a permanent decrease in inductance and increase in core loss.
Finish coating:
The cores coated with epoxy and have a minimum dielectric strength of 500 Volts DC min.
Warring:
Parts are warranted to conform to the specifications in the latest issue of this catalog, Samson's liability is limited to return ,if parts and repayment of price; Or replacement of nonconforming parts. Notice of nonconformance must be made within 15 days after delivery. Before using these products, Buyer agrees to determine suitability of the product for their intend use or application. Samson shall not be liable for any other loss or damage, Including but not limited to incidental or consequential damages.


SAMSON AL OD ID HT L A V
Part No. hH/N² mm mm mm cm cm² cm³
SST16-26 14.5 4.06±0.5 1.98±0.4 1.52±0.5 0.93 0.015 0.014
SST20-26 18.5 5.08±0.5 2.24±0.4 1.78±0.5 1.15 0.023 0.026
SST25-26 24.5 6.48±0.5 3.05±0.4 2.44±0.5 1.50 0.037 0.055
SST26-26 57.0 6.73±0.5 2.67±0.4 4.83±0.5 1.47 0.090 0.133
SST30-26 33.5 7.80±0.5 3.84±0.4 3.25±0.5 1.84 0.060 0.110
SST37-26 28.5 9.53±0.5 5.21±0.4 3.25±0.5 2.31 0.064 0.147
SST38-26 49.0 9.53±0.5 4.45±0.4 4.83±0.5 2.18 0.114 0.248
SST44-26 37.0 11.2±0.5 5.82±0.5 4.04±0.5 2.68 0.099 0.266
SST50-26 33.0 12.7±0.5 7.70±0.5 4.83±0.5 3.19 0.112 0.358
SST50-26B 43.5 12.7±0.5 7.70±0.5 6.35±0.5 3.19 0.148 0.471
SST50-26C 61.0 12.7±0.5 7.70±0.5 8.51±0.5 3.19 0.200 0.637
SST50-26D 72.0 12.7±0.5 7.70±0.5 9.53±0.5 3.19 0.223 0.711
SST51-26C 83.0 12.7±0.5 5.08±0.5 6.35±0.5 2.79 0.223 0.622
SST60-26 50.0 15.2±0.5 8.53±0.5 5.94±0.5 3.74 0.187 0.699
SST60-26D 97.0 15.2±0.5 8.53±0.5 11.9±0.5 3.74 0.374 1.400
SST68-26 43.5 17.5±0.5 9.40±0.5 4.83±0.5 4.23 0.179 0.759
SST68-26A 58.0 17.5±0.5 9.40±0.5 6.35±0.5 4.23 0.242 1.030
SST68-26D 87.0 17.5±0.5 9.40±0.5 9.53±0.5 4.23 0.358 1.520
SST72-26 90.0 18.3±0.5 7.11±0.5 6.60±0.5 4.01 0.349 1.400
SST80-26 46.0 20.2±0.5 12.6±0.5 6.35±0.5 5.14 0.231 1.190
SST80-26B 71.0 20.2±0.5 12.6±0.5 9.53±0.5 5.14 0.347 1.780
SST80-26D 92.0 20.2±0.5 12.6±0.5 12.7±0.5 5.14 0.453 2.330
SST90-26 70.0 22.9±0.5 14.0±0.5 9.53±0.5 5.78 0.395 2.280
SST94-26 60.0 23.9±0.5 14.2±0.5 7.92±0.5 5.97 0.362 2.160
SST106-26 93.0 26.9±0.5 14.5±0.5 11.1±0.5 6.49 0.659 4.280
SST106-26A 67.0 26.9±0.5 14.5±0.5 7.92±0.5 6.49 0.461 3.000
SST106-26B 124.0 26.9±0.5 14.5±0.5 14.6±0.5 6.94 0.858 5.570
SST124-26 58.0 31.6±0.5 18.0±0.5 7.11±0.5 7.75 0.459 3.550
SST130-26 81.0 33.0±0.5 19.8±0.5 11.1±0.64 8.28 0.698 5.780
SST130-26A 41.0 33.0±0.5 19.8±0.5 5.72±0.64 8.28 0.361 2.990
SST131-26 116.0 33.0±0.5 16.3±0.5 11.1±0.64 7.72 0.885 6.840
SST132-26 103.0 33.0±0.5 17.8±0.5 11.1±0.64 7.96 0.805 6.410
SST141-26 75.0 35.9±0.5 22.4±0.5 10.5±0.64 9.14 0.674 0.616
SST150-26 96.0 38.4±0.5 21.5±0.5 11.1±0.64 9.38 0.887 8.310
SST150-26A 66.0 38.4±0.64 21.5±0.5 8.26±0.64 9.38 0.657 6.160
SST157-26 100.0 39.9±0.64 24.1±0.64 14.5±0.76 10.10 1.060 10.700
SST175-26 105.0 44.5±0.64 27.2±0.64 16.5±0.76 11.20 1.340 15.000
SST184-26 169.0 46.7±0.64 24.1±0.64 18.0±0.76 11.20 1.880 21.000
SST200-26 92.0 50.8±0.64 31.8±0.64 25.4±0.76 13.00 2.320 30.000
SST200-26B 160.0 50.8±0.64 31.8±0.64 25.4±0.76 13.00 2.320 30.000
SST201-26 224.0 50.8±0.64 24.1±0.64 22.2±0.76 11.80 2.810 33.200
SST224-26C 155.0 57.2±0.64 31.8±0.64 19.1±0.76 14.00 2.310 32.200
SST225-26 98.0 57.2±0.64 35.7±0.64 14.0±0.76 14.60 1.420 20.700
SST225-26B 160.0 57.2±0.64 35.7±0.64 25.4±0.76 14.60 2.590 37.800
SST249-26 203.0 63.5±0.64 35.7±0.64 25.4±0.76 15.60 3.360 52.300
SST250-26 242.0 63.5±0.76 31.8±0.76 25.4±0.76 15.00 3.840 57.400
SST300-26 80.0 77.2±0.76 49.0±0.76 12.7±0.76 19.80 1.680 33.400
SST300-26D 160.0 77.2±0.76 49.0±0.76 25.4±0.76 19.80 3.380 67.000
