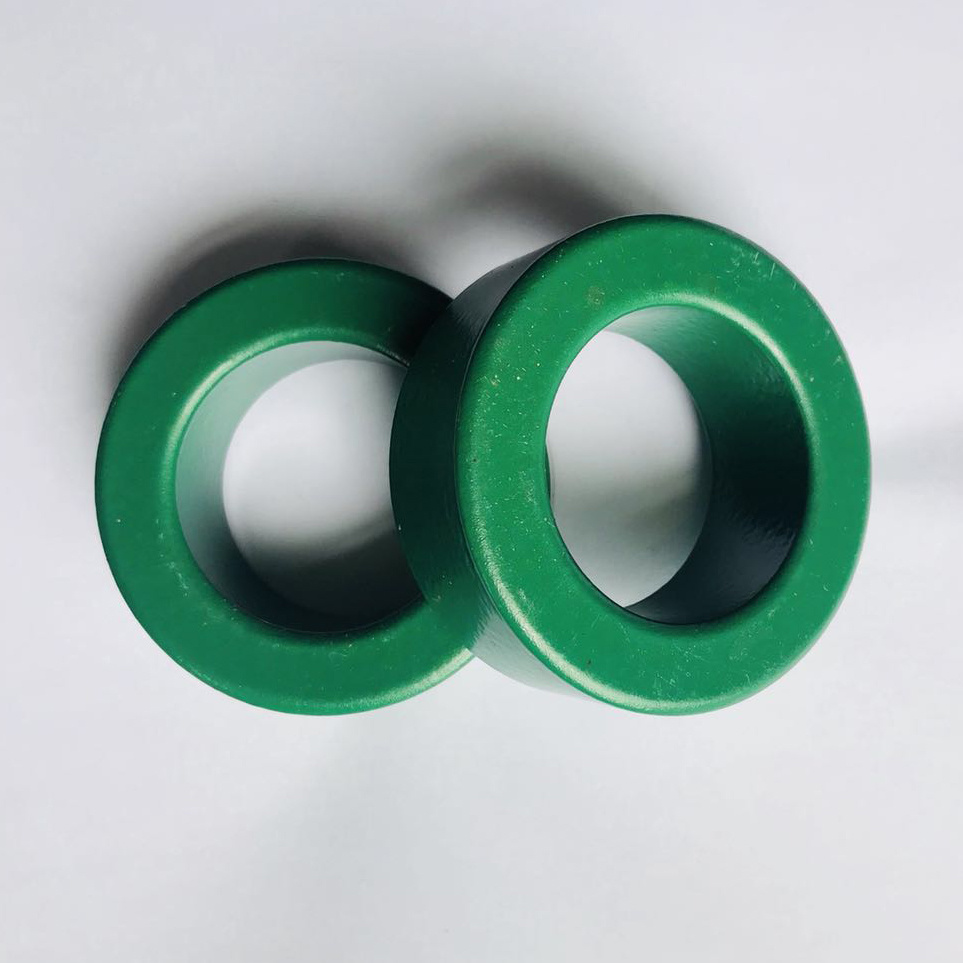

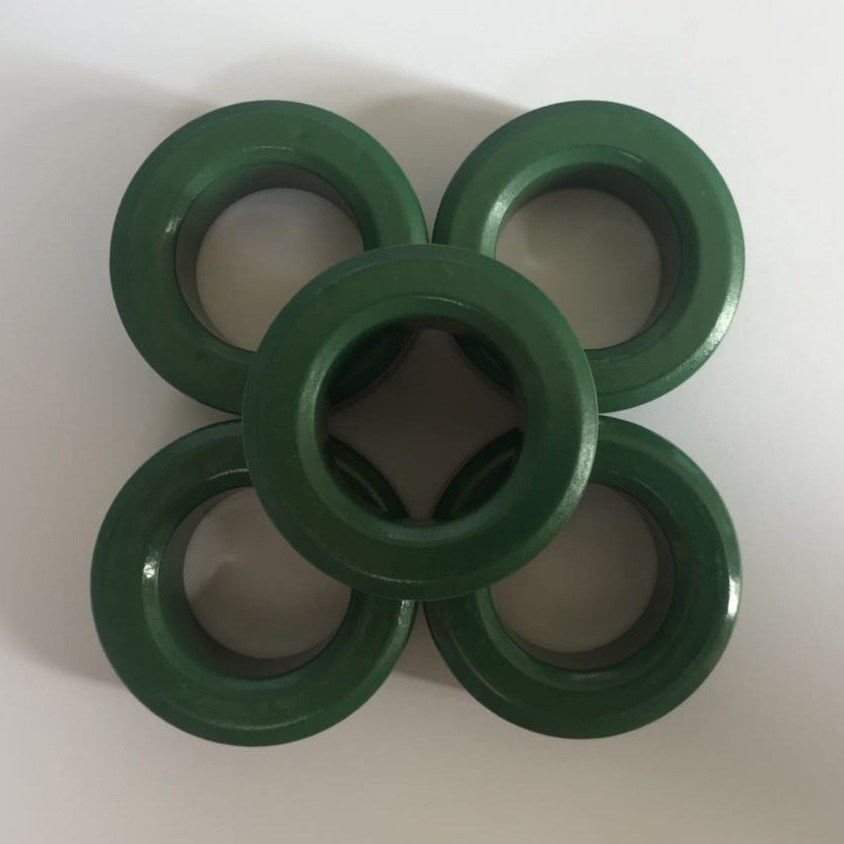

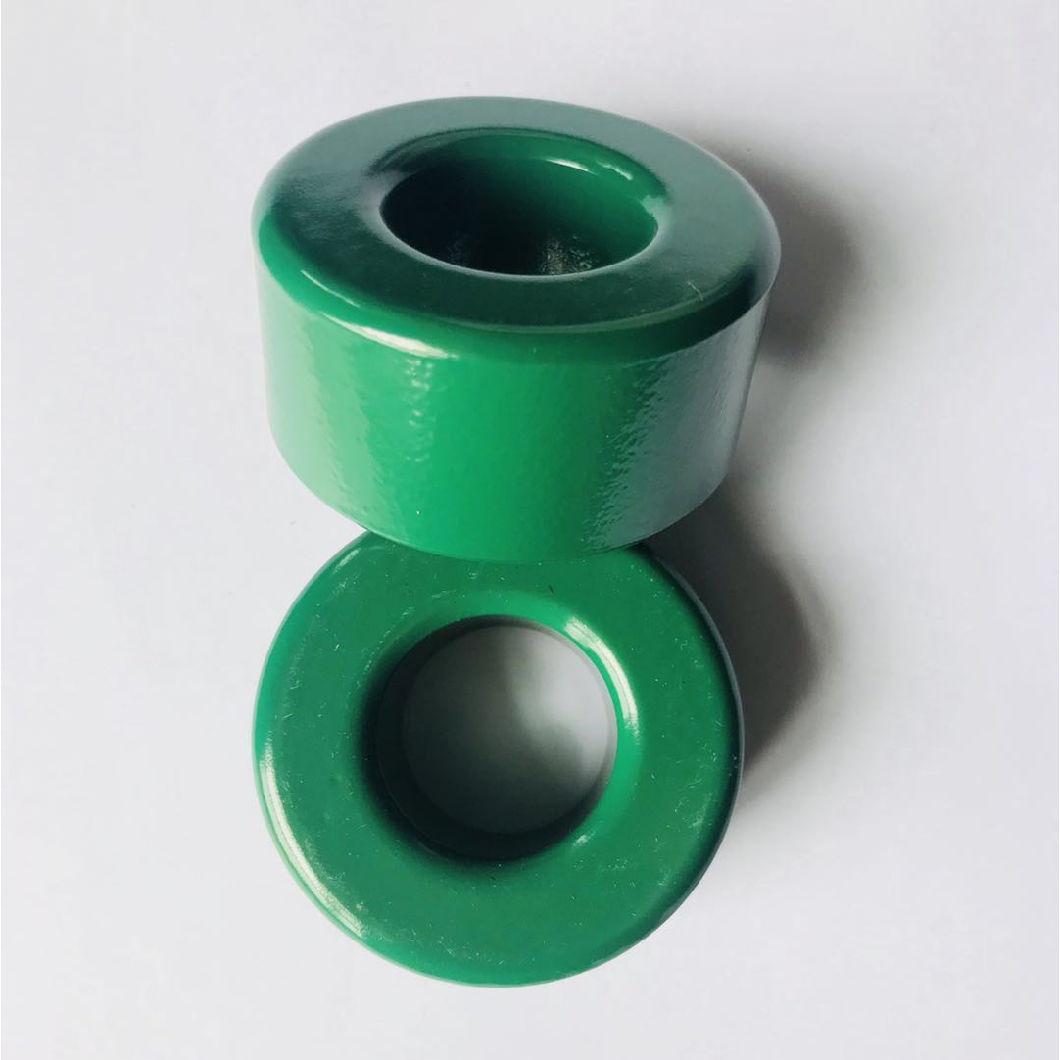

MT200-52B
RD
China
85051190
| NO. | O.D.(mm) | I.D.(mm) | H(mm) | Ae(cm2) | Le(cm) | Ve(cm3) | AL(nH/N2) | N.W.(g) |
| MT184-26 | 46.70 | 24.10 | 18.00 | 2.030 | 11.100 | 22.000 | 169 | 146.00 |
| MT250-26 | 63.50 | 31.80 | 25.40 | 4.020 | 15.000 | 58.000 | 242 | 400.00 |
| MT249-26 | 63.50 | 35.70 | 25.40 | 3.530 | 15.600 | 54.000 | 203 | 375.00 |
| MT157-26 | 39.90 | 24.10 | 14.50 | 1.145 | 10.000 | 11.000 | 100 | 75.00 |
| MT300-26D | 77.20 | 49.00 | 25.40 | 3.580 | 19.800 | 70.000 | 160 | 455.00 |
| MT200-26B | 50.80 | 31.80 | 25.40 | 2.410 | 13.000 | 31.000 | 160 | 210.00 |
| MT130-26 | 33.00 | 19.80 | 11.10 | 0.730 | 8.290 | 6.000 | 81 | 45.00 |
| MT106-26 | 26.90 | 14.50 | 11.10 | 0.688 | 6.500 | 4.400 | 93 | 30.00 |
| MT106-26B | 26.90 | 14.50 | 14.60 | 0.900 | 6.500 | 5.800 | 124 | 39.00 |
| MT90-26 | 22.90 | 14.00 | 9.53 | 0.424 | 5.750 | 2.400 | 70 | 16.50 |
| MT224-26C | 57.20 | 31.80 | 19.10 | 2.400 | 14.000 | 33.000 | 155 | 230.00 |
| MT200-52B | 50.80 | 31.80 | 25.40 | 2.410 | 13.000 | 31.000 | 155 | 210.00 |
| MT130-52 | 33.00 | 19.80 | 11.10 | 0.730 | 8.290 | 6.000 | 79 | 45.00 |
| MT106-52 | 26.90 | 14.50 | 11.10 | 0.688 | 6.500 | 4.400 | 93 | 30.00 |
Professional soft magnet core ring and inductance coil are provided. Products are widely used in computer motherboard, computer graphics card, power supply, charging device, electronic rectifier, dimmer, uninterruptible power supply, etc.
| NO. | O.D.(mm) | I.D.(mm) | H(mm) | Ae(cm2) | Le(cm) | Ve(cm3) | AL(nH/N2) | N.W.(g) |
| MT184-26 | 46.70 | 24.10 | 18.00 | 2.030 | 11.100 | 22.000 | 169 | 146.00 |
| MT250-26 | 63.50 | 31.80 | 25.40 | 4.020 | 15.000 | 58.000 | 242 | 400.00 |
| MT249-26 | 63.50 | 35.70 | 25.40 | 3.530 | 15.600 | 54.000 | 203 | 375.00 |
| MT157-26 | 39.90 | 24.10 | 14.50 | 1.145 | 10.000 | 11.000 | 100 | 75.00 |
| MT300-26D | 77.20 | 49.00 | 25.40 | 3.580 | 19.800 | 70.000 | 160 | 455.00 |
| MT200-26B | 50.80 | 31.80 | 25.40 | 2.410 | 13.000 | 31.000 | 160 | 210.00 |
| MT130-26 | 33.00 | 19.80 | 11.10 | 0.730 | 8.290 | 6.000 | 81 | 45.00 |
| MT106-26 | 26.90 | 14.50 | 11.10 | 0.688 | 6.500 | 4.400 | 93 | 30.00 |
| MT106-26B | 26.90 | 14.50 | 14.60 | 0.900 | 6.500 | 5.800 | 124 | 39.00 |
| MT90-26 | 22.90 | 14.00 | 9.53 | 0.424 | 5.750 | 2.400 | 70 | 16.50 |
| MT224-26C | 57.20 | 31.80 | 19.10 | 2.400 | 14.000 | 33.000 | 155 | 230.00 |
| MT200-52B | 50.80 | 31.80 | 25.40 | 2.410 | 13.000 | 31.000 | 155 | 210.00 |
| MT130-52 | 33.00 | 19.80 | 11.10 | 0.730 | 8.290 | 6.000 | 79 | 45.00 |
| MT106-52 | 26.90 | 14.50 | 11.10 | 0.688 | 6.500 | 4.400 | 93 | 30.00 |
Professional soft magnet core ring and inductance coil are provided. Products are widely used in computer motherboard, computer graphics card, power supply, charging device, electronic rectifier, dimmer, uninterruptible power supply, etc.
