Temperature effects:
The cores will be suited for operation from -55ºC~+125ºC,it has a high curie temperature and will function to several hundred degrees Celsius .However long time continued high temperature operations may result in a permanent decrease in inductance and increase in core loss.
Finish coating:
The cores coated with epoxy and have a minimum dielectric strength of 500 Volts DC min.
Warring:
Parts are warranted to conform to the specifications in the latest issue of this catalog, Samson's liability is limited to return ,if parts and repayment of price; Or replacement of nonconforming parts. Notice of nonconformance must be made within 15 days after delivery. Before using these products, Buyer agrees to determine suitability of the product for their intend use or application. Samson shall not be liable for any other loss or damage, Including but not limited to incidental or consequential damages.

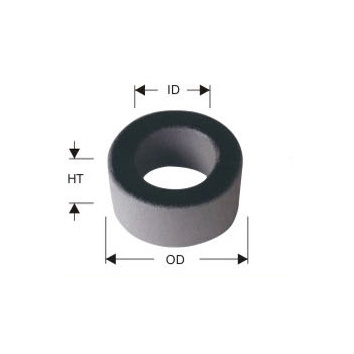

| SAMSON | AL | OD | ID | HT | L | A | V |
| Part No. | hH/N² | mm | mm | mm | cm | cm² | cm³ |
| SST50-38 | 37.5 | 12.7±0.5 | 7.70±0.5 | 4.83±0.5 | 3.19 | 0.112 | 0.358 |
| SST50-38B | 49.5 | 12.7±0.5 | 7.70±0.5 | 6.35±0.5 | 3.19 | 0.148 | 0.471 |
| SST68-38 | 45.0 | 17.5±0.5 | 9.40±0.5 | 4.83±0.5 | 4.23 | 0.179 | 0.759 |
| SST68-38A | 61.0 | 17.5±0.5 | 9.40±0.5 | 6.35±0.5 | 4.23 | 0.242 | 1.030 |
| SST80-38 | 48.0 | 20.2±0.5 | 12.6±0.5 | 6.35±0.5 | 5.14 | 0.231 | 1.190 |
| SST80-38B | 72.0 | 20.2±0.5 | 12.6±0.5 | 9.53±0.5 | 5.14 | 0.347 | 1.780 |
| SST90-38 | 73.0 | 22.9±0.5 | 14.0±0.5 | 9.53±0.5 | 5.78 | 0.395 | 2.280 |
| SST94-38 | 65.0 | 23.9±0.5 | 14.2±0.5 | 7.92±0.5 | 5.97 | 0.362 | 2.160 |
| SST106-38 | 108.0 | 26.9±0.5 | 14.5±0.5 | 11.1±0.5 | 6.49 | 0.659 | 4.280 |
| SST130-38 | 90.0 | 33.0±0.5 | 19.8±0.5 | 11.1±0.64 | 8.28 | 0.698 | 5.780 |
| SST150-38A | 84.0 | 38.4±0.5 | 19.8±0.5 | 8.26±0.64 | 9.38 | 0.657 | 6.160 |
| SST157-38 | 112.0 | 39.9±0.64 | 24.1±0.64 | 14.5±0.76 | 10.10 | 1.060 | 10.700 |
