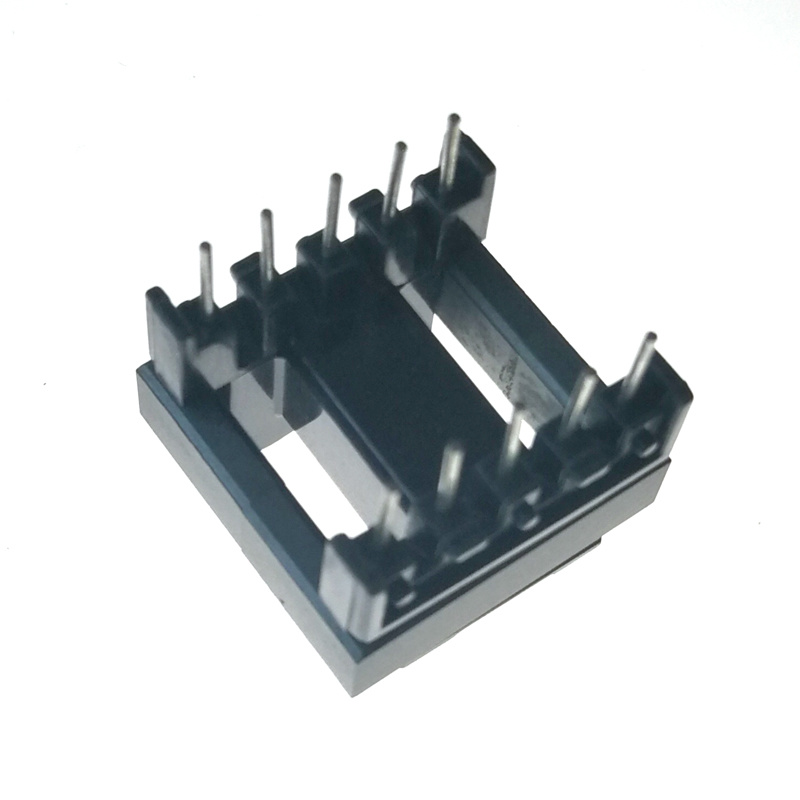

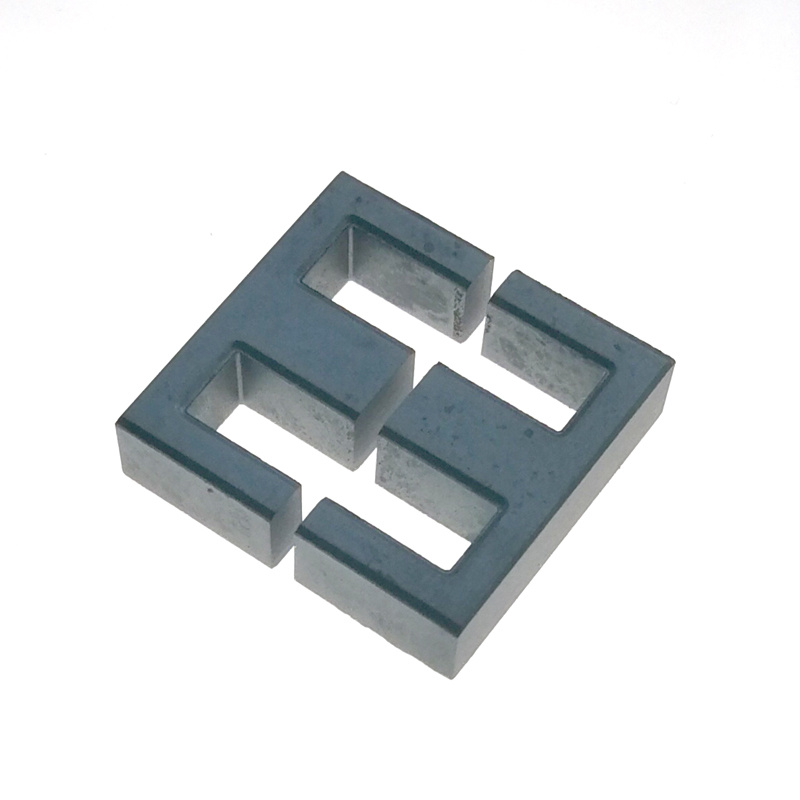

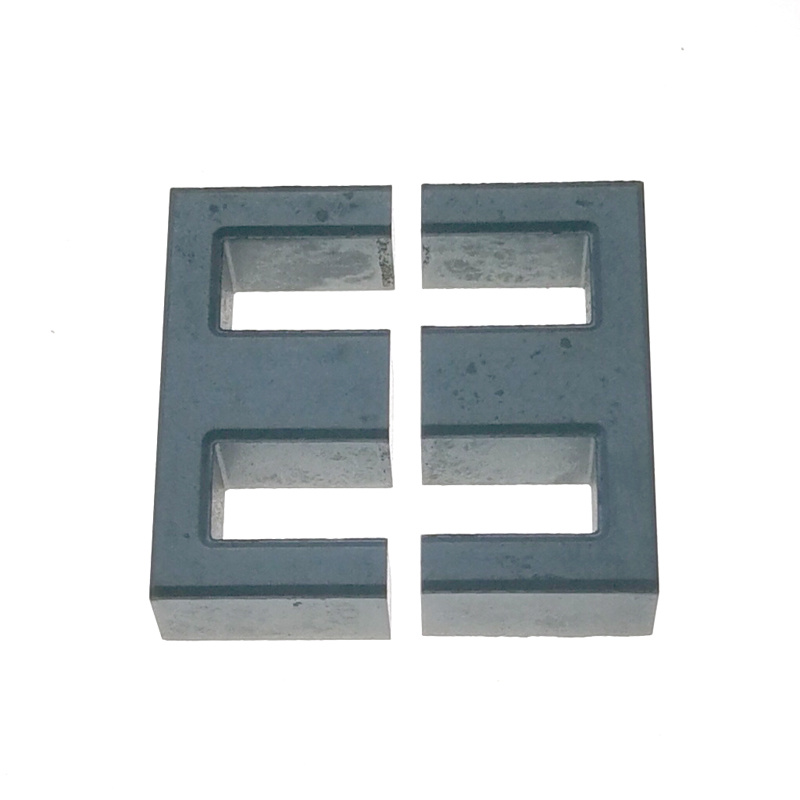

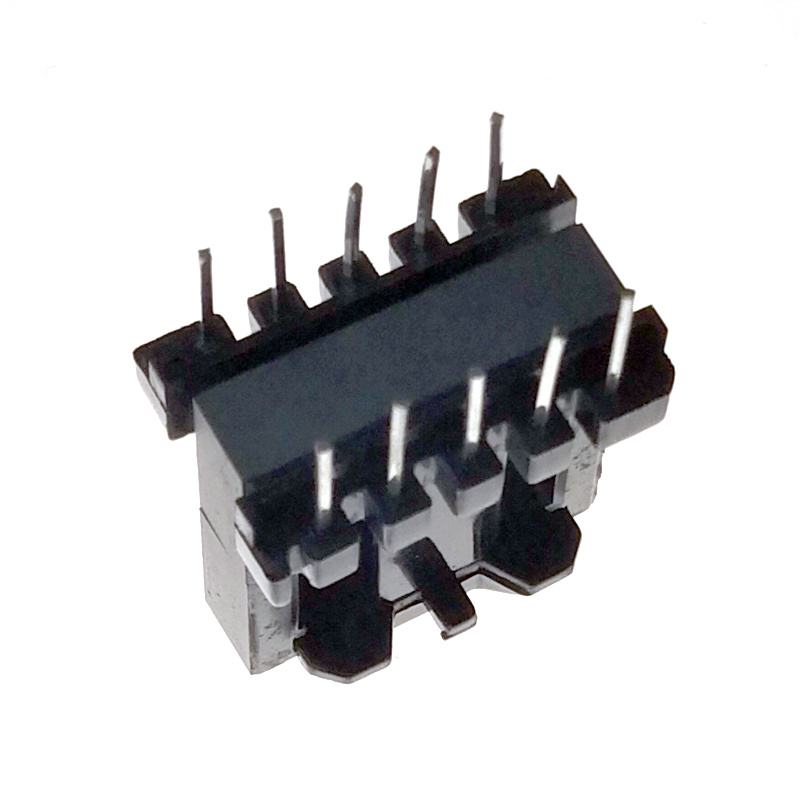

Ee20 Ferrite Core and Bobbin

Quantity:



Inquire Add to Basket

Model NO.:
EE20
HS Code:
85051190

Product Description

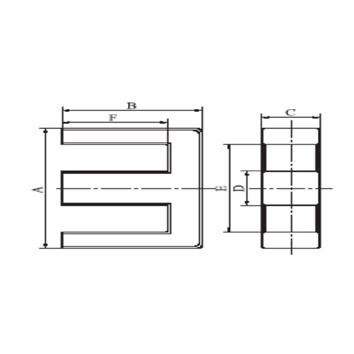

NO.			A	B	C	D	E	F	C1	Ae	Le	Ve	AL(Nh/N2)	N.G.
1	EE7.6	PC40	7.7	3.25	3.1	1.8	6	2.1	2.64	5.89	15.57	91.7	600
2	EE8.3	PC40	8.6	4.4	3.85	1.9	6.6	3.35	2.775	7.66	21.25	162.8	450	0.9
3	EE9.8	PC40	9.88	4.43	4.7	2.66	7.23	3.08	1.68	12.54	21.09	264	650	1.5
4	EE10	PC40	10.8	5.6	4.7	2.5	8.15	4.25	2.185	12.25	26.767	327.9	740	1.74
5	EE11	PC40	11.2	5.6	4.66	2.5	8.55	4.25	2.35	12.15	27.16	330	740	1.85
6	EE10-10	PC40	10.68	5.78	9.87	2.5	8.1	4.45	1.08	25.37	27.47	696.9	1100	3.7
7	EE12	PC40	12.2	4.65	7.45	2.8	9.2	3.1	1.062	22.09	23.476	518.6	860	2.9
8	EE12.5	PC40	12.9	4.4	4.8	2.25	9.8	2.8	1.66	13.52	22.5	304.2	800	1.7
9	EE12.7	PC40	13	5.32	5.85	2.7	10.3	3.59	1.55	17.01	26.5	450.7	850	2.77
10	EF12.6	PC40	12.8	6.35	3.67	3.54	9.15	4.7	2.31	12.87	29.78	383	600	2.2
11	EF12.6-6	PC40	12.7	6.4	6.1	3.47	9.38	4.7	1.47	20.53	30.15	619.1	1100	3.5
12	EE13	PC40	13.2	6.4	5.85	2.7	10.4	4.85	1.899	16.64	31.608	526	850	2.77
13	EE13-10	PC40	13.3	6.4	9.8	3.38	10	4.7	0.993	32.9	30.709	1010.3	1100	5.5
14	EE14-10	PC40	14.2	6.4	9.8	3.38	10.65	4.7	0.94	33.08	31.38	1038.1	1100	5.6
15	EE14-4.5-7(EE14)	PC40	14.2	4.5	7.36	3.41	10.7	3	1.01	23.89	24.26	579	1000	3.5
16	EE13-5-10	PC40	13.56	4.9	9.95	3.5	9.97	3	0.669	36.18	24.21	876.1	2000	4.8
17	EE14	PC40	14.2	6.4	5.85	2.7	11.4	4.85	1.95	16.68	32.602	543.8	850	3
18	EE15.5-7.5-12	PC40	15.5	7.6	11.96	3.58	12.05	5.7	0.85	43.12	36.97	1594	2000	8.3
19	EE16	PC40	16.2	7.4	4.7	3.8	12.1	5.4	1.94	18.6	36.11	671.6	1000	3.52
20	EE17	PC40	17.2	7.4	4.7	3.8	13.1	5.4	1.99	16.61	37.11	690.6	1000	3.8
21	EE17-12	PC40	17.2	7.65	12	3.6	13.8	5.8	0.913	42.71	39.01	1666.2	1800	8.7
22	EF16	PC40	16.1	8.1	4.6	4.55	11.7	6.2	1.955	19.57	38.275	749	1100	4.1
23	EE16-6-5	PC40	16	6.2	4.2	4.3	11.8	4.2	1.76	17.46	30.75	537	1000	3.2
24	EE16-6-7	PC40	16	5.9	7	4.5	11.8	3.9	0.998	29.46	29.4	866	1200	4.5
25	EE16-7-7	PC40	16.15	7.3	6.7	3.87	11.9	5.5	1.377	26.06	35.91	935	1200	5.2
26	EE16-7-8	PC40	16.15	7.3	8	3.87	11.9	5.5	1.14	26.49	36.49	1152.7	1300	6.2
27	EE17-6.8-8	PC40	17.1	6.9	8	4.03	13	4.95	1.11	31.33	34.83	1091	1600	5.9
28	EE17-6.0-8	PC40	17.1	6	8	4.03	13	4.05	0.98	31.92	31.92	1003	1600	5.9
29	EE17-5.5-8	PC40	17.1	5.5	8	4.03	13	3.55	0.92	31.95	29.41	939.8	1600	5.9
30	EE17.2/7/7	PC40	17.2	7.5	6.7	3.87	13	5.8	1.49	25.37	37.93	962.3	962.3	5.7
31	EE16-8-4	PC40	16	8	3.75	3.75	10.6	5.2	1.99	17.29	34.54	597	850	3.5
32	EE16-10	PC40	16.15	7.5	9.8	3.8	12	5.5	0.935	38.94	36.41	1418	1800	7.5
33	EE16-6-10 EF15	PC40	16	5.75	10	3.9	12.5	3.75	0.778	37.96	29.56	1122	1750	5.8

1, The high quality materials be used to make our products more stable.
2, According to customer's request, adjust the product size to make the product more convenient to install, improve the customer's production efficiency.
3, We have a wealth of product models, you can make it easier for you to buy.
