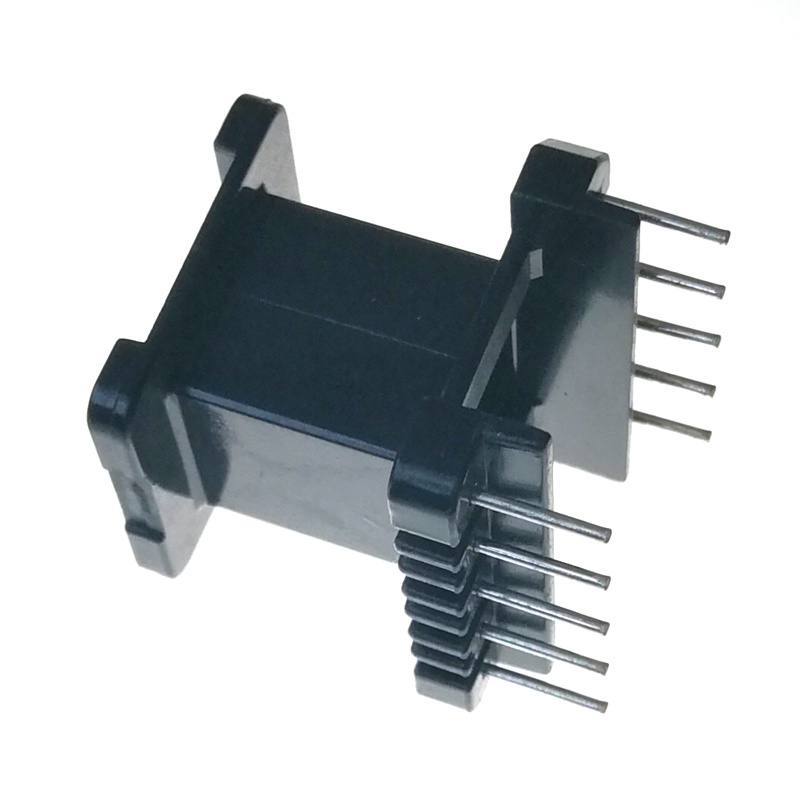

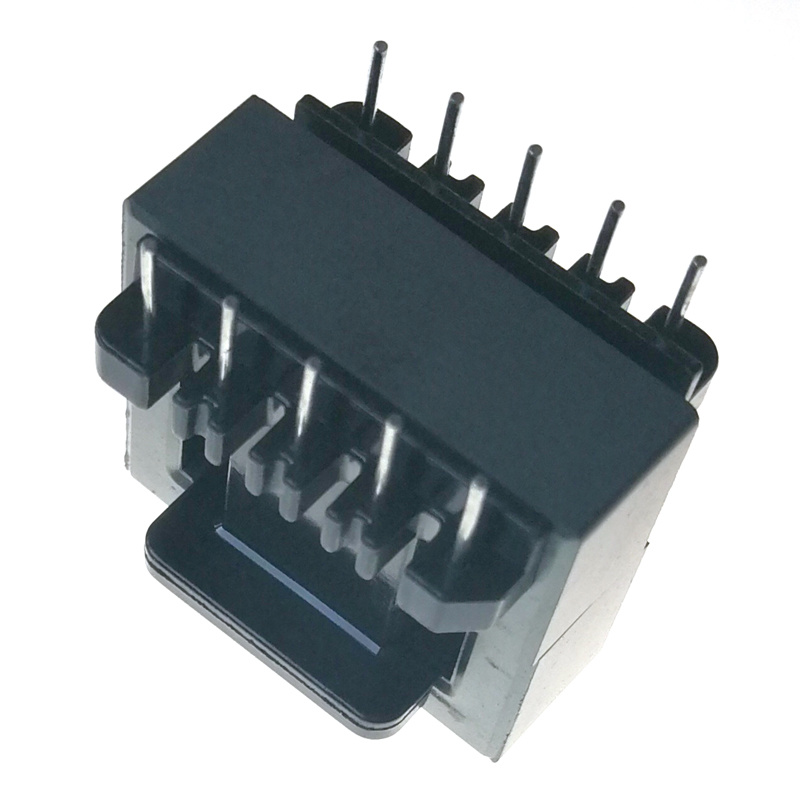

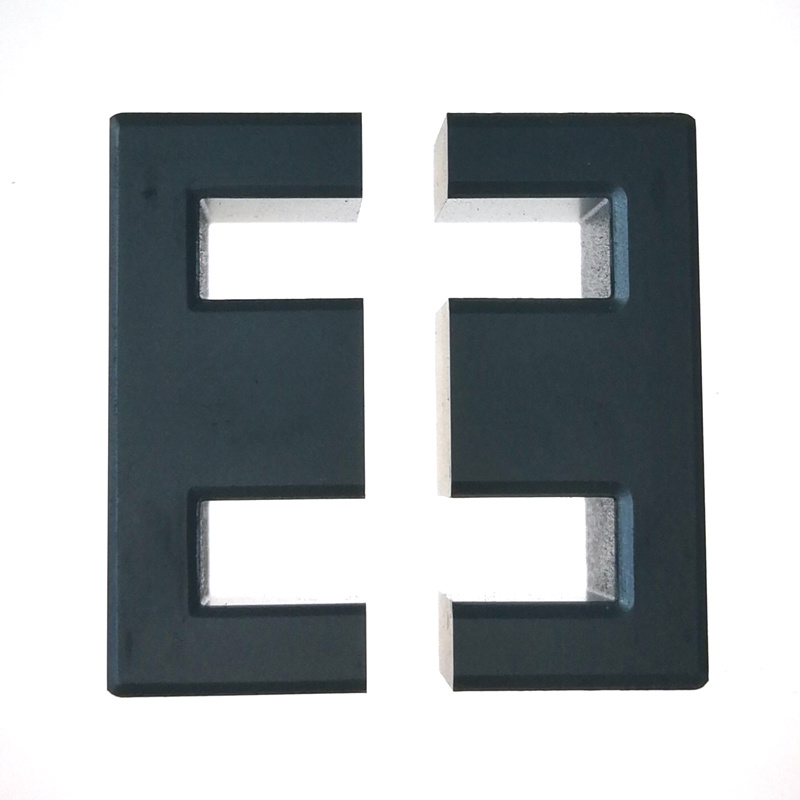

Ee30 Ferrite Core and Bobbin

Quantity:
  • EE30
  • 85051190
Ee30 Ferrite Core and Bobbin
Ee30 Ferrite Core and Bobbin
Ee30 Ferrite Core and Bobbin

Ee30 Ferrite Core and Bobbin

Ee30 Ferrite Core and Bobbin

NO.

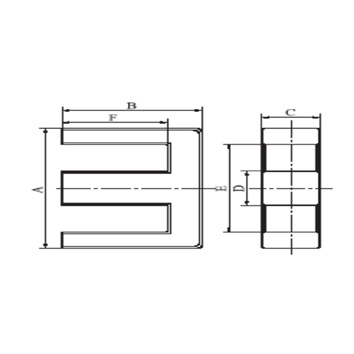

A B C D E F C1 Ae Le Ve AL(Nh/N2) N.G.
34 EE16.8 PC40 16.8 7 6.6 4.8 12.38 4.75 1.11 30.12 33.67 1015 1500 4.5
35 EE18 PC95 18.3 6.5 12.1 3.8 14.9 4.7 0.82 35.47 43 1526.4 1950 8.5
36 EE19.5 PC40 19.2 7.4 5.34 5.28 13.9 4.48 1.2 29.27 35.21 1030.7 1500 5.6
37 EE19 PC40 19.1 8.3 4.75 4.75 14.7 5.85 1.836 22.17 40.718 902.7 1100 4.7
38 EE19-7 PC40 19.1 8 6.7 4.77 14.55 5.7 1.244 31.84 39.61 1261 1400 6.8
39 EE19-9.5 PC40 19.1 8 9.5 4.77 14.55 5.7 0.877 45.14 39.61 1788.4 1800 9.9
40 EE19-10 PC40 19.1 8 9.8 4.77 14.55 5.7 0.85 46.57 39.61 1845 1800 10
41 EE20 PC40 20.1 9.8 6.7 4.7 15.1 7.25 1.432 32.93 47.164 1553.1 1450 8
42 EE21 PC40 21.05 10 6.8 4.76 16.7 7.45 1.54 31.9 49.15 1567 1800 9
43 EF20 PC40 20.1 10 5.6 5.5 14.7 7.25 1.529 30.6 46.797 1432 1400 7.6
44 EF20B PC40 20.8 10 5.6 5.5 15.4 7.25 1.55 30.6 47.49 1453 1400 7.6
45 EF20-7 PC40 20.1 10 6.8 5.5 14.7 7.25 1.25 37.15 46.79 1738.5 1800 9.3
46 EF20-11 PC40 20.7 10.1 10.7 5.6 15.3 7.35 0.811 58.83 47.3 2807.9 2200 13.5
47 EF20-9 PC40 20.7 10.1 9 5.6 15.3 7.35 0.964 49.48 47.73 2361 2000 11.4
48 EE20-10-5 pc40 20 10.1 4.7 5 12.95 6.4 1.49 29.65 42.91 1229.5 1200 6.8
49 EE22 PC40 22.1 9.6 5.75 5.9 15.75 6 1.193 36.94 44.089 1628.6 1650 8.8
50 EE23 PC40 23.1 9.6 5.75 5.9 15.75 6 1.14 38.57 44.308 1709 1650 9.2
51 EE25 PC40 25.2 9.9 6.1 6.05 19.3 6.9 1.376 36.5 50.25 1834.1 1700 9.6
52 EE25-7 PC40 25.2 9.9 6.7 6.05 19.3 6.9 1.25 40 50.25 2014 1750 10.5
53 EE25-10 PC40 25.2 9.9 9.95 6.05 19.3 6.9 0.844 59.53 50.25 2991.4 2000 15.8
54 EF25 PC40 25.1 12.9 7 7.1 18 9.35 1.23 48.28 59.452 2870.3 1800 15.2
EF25B PC40 25.1 10.4 7.1 7.1 18 6.8 1800 14
55 EF25-9 PC40 25 13 8.95 7.1 18 9.4 0.94 63.46 59.68 3787 1900 19.5
56 EF25-11 PC40 25.1 12.9 10.7 7.1 18 9.35 0.786 75.86 59.68 4527.8 2000 23
57 EE28 PC40 28 10.5 10.55 7.2 19.6 6.5 0.61 82.5 50.626 4176 2800 23
58 EE30 PC40 30 13.2 10.75 10.3 20.75 8.5 0.574 103.46 59.39 6144.6 3500 34
59 EE33 PC40 33 14.5 12.65 9.56 23.5 9.85 0.569 119.62 68.1 8148 3500 43
60 EE32 PC40 32.2 16 7.9 7.65 23.2 11.75 1.15 65.6 75.42 4947 2200 25
61 EL16 PC40 17.1 12.35 4.9 4.08 11.6 10.25 2.47 22.09 54.6 1206 900 7.5
62 EL19 PC40 19.5 13.85 4.7 4.75 14.6 11.45 2.79 22.64 63.198 1430 1000 8.5
63 EL20 PC40 21 13.6 4.7 4.85 15.6 11.05 2.62 23.96 62.85 1505 1000 9

1, The high quality materials be used to make our products more stable.
2, According to customer's request, adjust the product size to make the product more convenient to install, improve the customer's production efficiency.
3, We have a wealth of product models, you can make it easier for you to buy.
