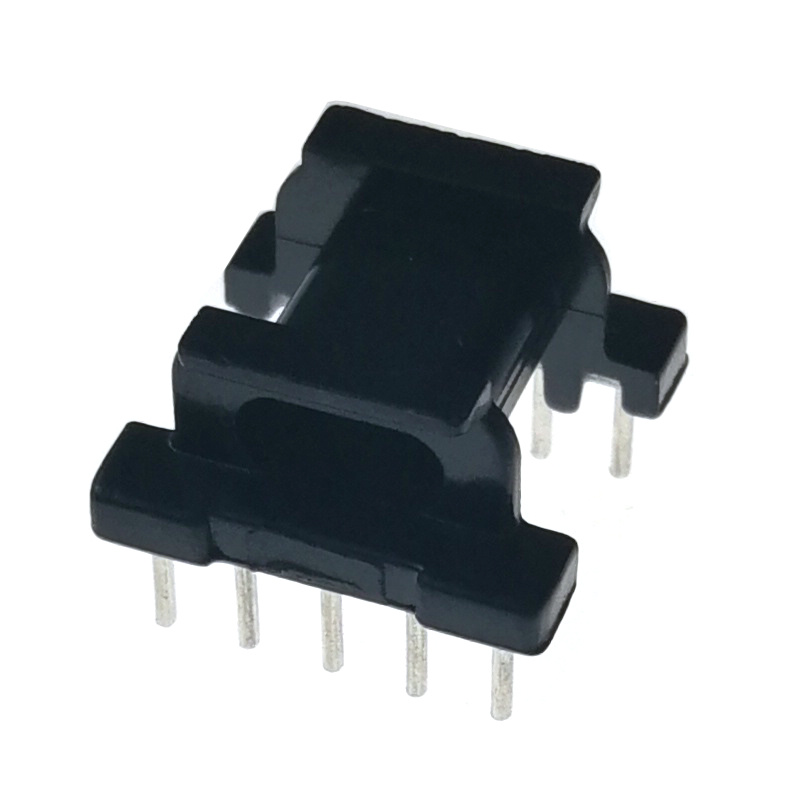

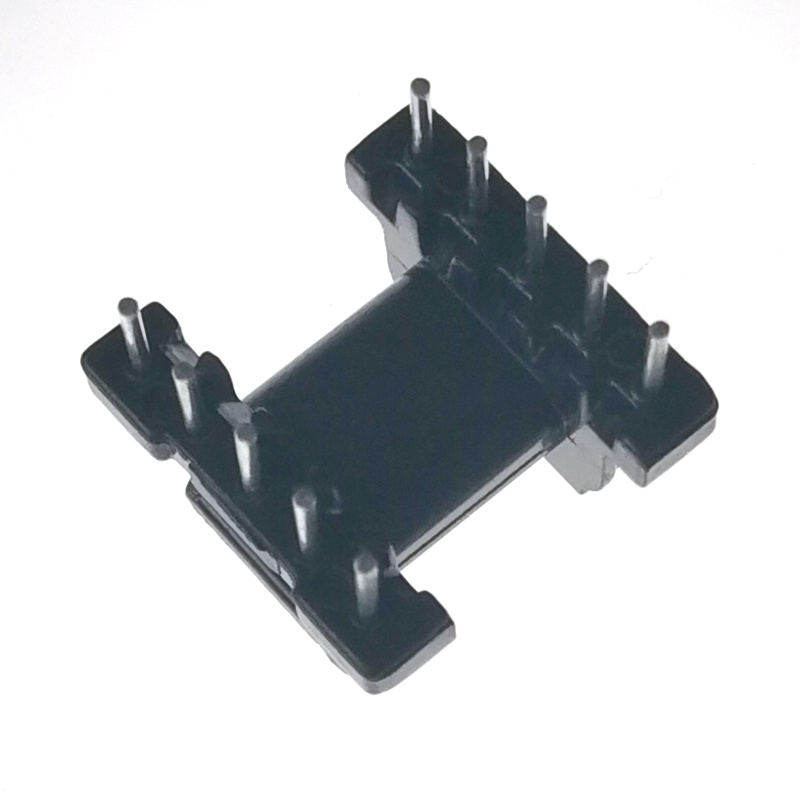

EPC13 Ferrite Core and Bobbin

Quantity:



Inquire Add to Basket

Model NO.:
EPC13
HS Code:
85051190

Product Description

NO.			A	B	C	D	E	F	G	C1	Ae	Le	Ve	AL(Nh/N2)	N.G.
94	EPC1313	PC40	13.2	6.6	6.5	5.58	10.84	4.5	3.53	1.605	18.84	30.29	569.7	1300	3
95	EPC14	PC40	13.9	6.8	4.75	5.66	11.1	4.8	2.18	2.21	13.5	29.9	405.6	880	2.8
96	EPC17	PC40	17.8	8.7	6	7.75	14.9	6.1	2.83	1.74	22.58	39.34	888	1100	4.9
97	EPC19	PC40	19.2	9.85	6	8.5	16.5	7.3	2.47	2.12	22.7	46.1	1047	1900	5.3
98	EPC25	PC40	25.25	12.8	8	11.5	21.31	9.2	3.9	1.32	430.1	56.84	2444.6	1600

1, The high quality materials be used to make our products more stable.
2, According to customer's request, adjust the product size to make the product more convenient to install, improve the customer's production efficiency.
3, We have a wealth of product models, you can make it easier for you to buy.
