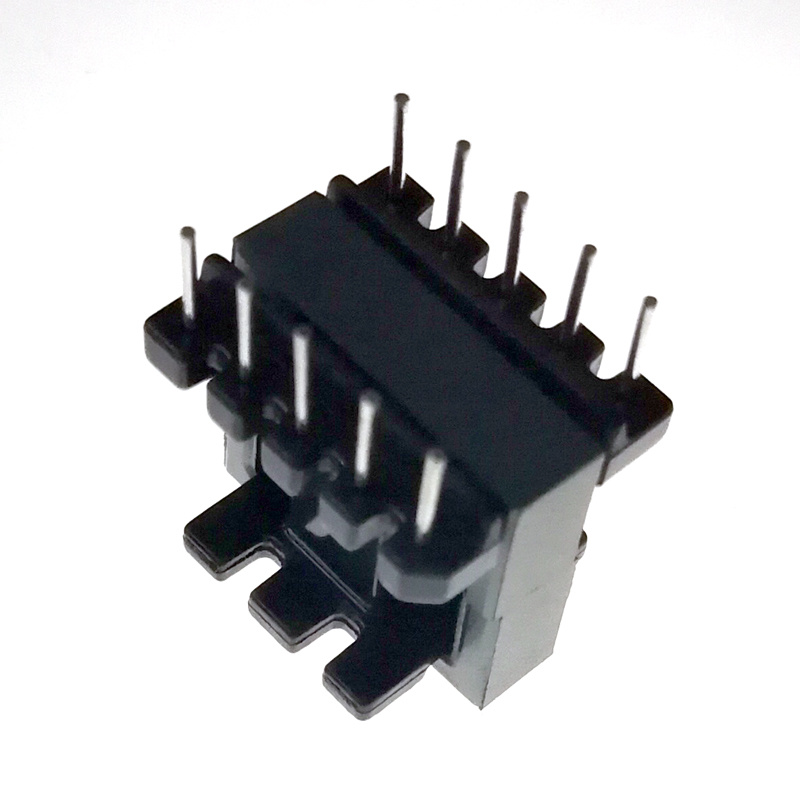

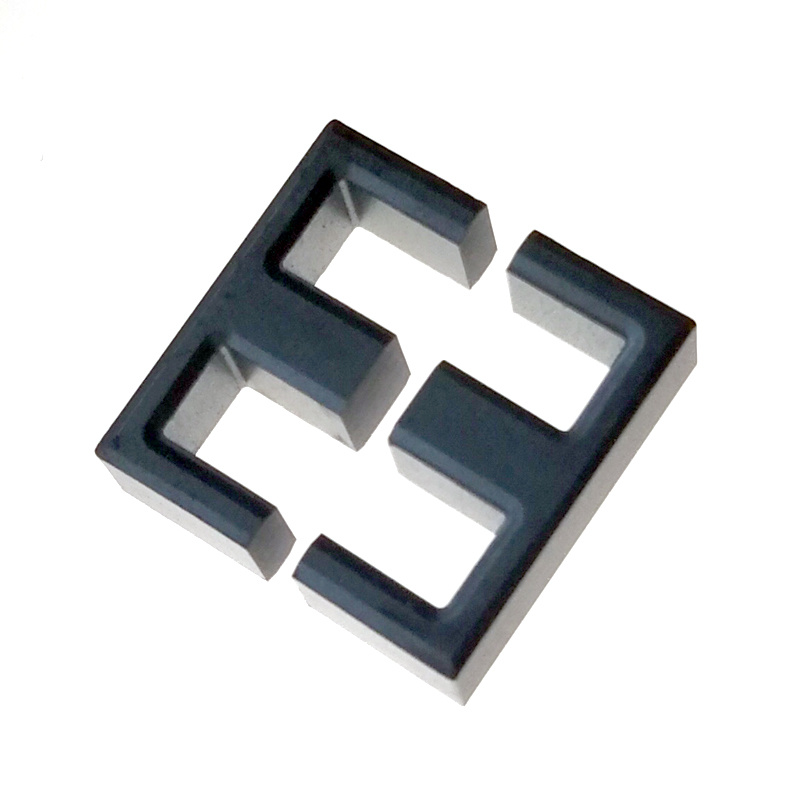

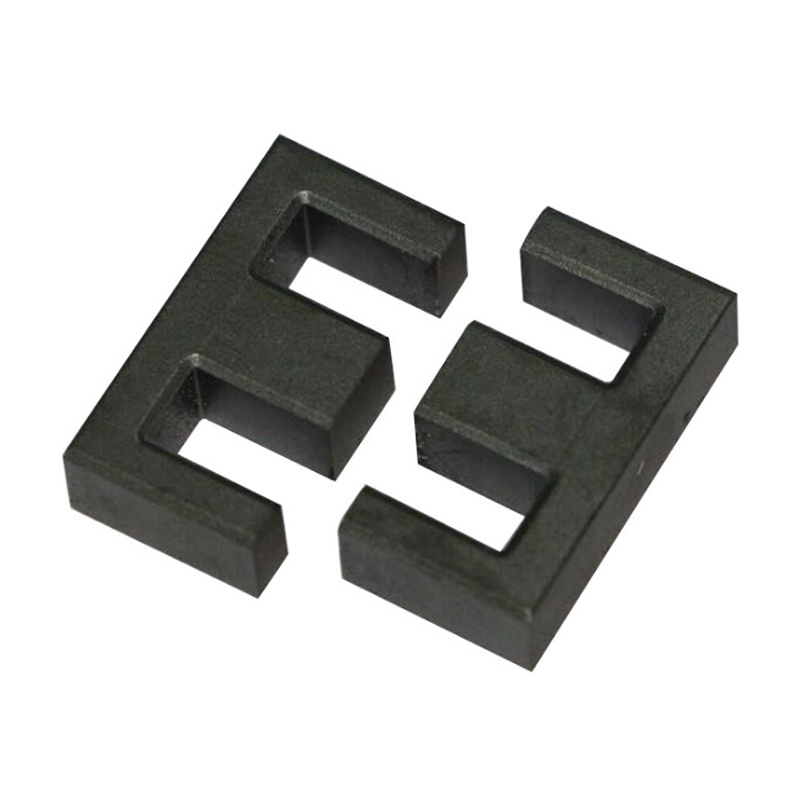

EE16
85051190

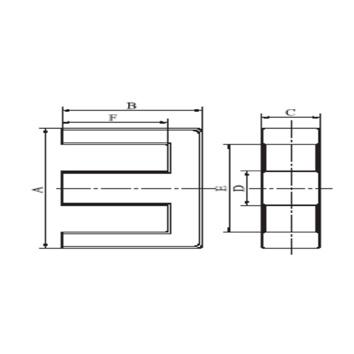

NO. | A | B | C | D | E | F | C1 | Ae | Le | Ve | AL(Nh/N2) | N.G. | ||
1 | EE7.6 | PC40 | 7.7 | 3.25 | 3.1 | 1.8 | 6 | 2.1 | 2.64 | 5.89 | 15.57 | 91.7 | 600 | |
2 | EE8.3 | PC40 | 8.6 | 4.4 | 3.85 | 1.9 | 6.6 | 3.35 | 2.775 | 7.66 | 21.25 | 162.8 | 450 | 0.9 |
3 | EE9.8 | PC40 | 9.88 | 4.43 | 4.7 | 2.66 | 7.23 | 3.08 | 1.68 | 12.54 | 21.09 | 264 | 650 | 1.5 |
4 | EE10 | PC40 | 10.8 | 5.6 | 4.7 | 2.5 | 8.15 | 4.25 | 2.185 | 12.25 | 26.767 | 327.9 | 740 | 1.74 |
5 | EE11 | PC40 | 11.2 | 5.6 | 4.66 | 2.5 | 8.55 | 4.25 | 2.35 | 12.15 | 27.16 | 330 | 740 | 1.85 |
6 | EE10-10 | PC40 | 10.68 | 5.78 | 9.87 | 2.5 | 8.1 | 4.45 | 1.08 | 25.37 | 27.47 | 696.9 | 1100 | 3.7 |
7 | EE12 | PC40 | 12.2 | 4.65 | 7.45 | 2.8 | 9.2 | 3.1 | 1.062 | 22.09 | 23.476 | 518.6 | 860 | 2.9 |
8 | EE12.5 | PC40 | 12.9 | 4.4 | 4.8 | 2.25 | 9.8 | 2.8 | 1.66 | 13.52 | 22.5 | 304.2 | 800 | 1.7 |
9 | EE12.7 | PC40 | 13 | 5.32 | 5.85 | 2.7 | 10.3 | 3.59 | 1.55 | 17.01 | 26.5 | 450.7 | 850 | 2.77 |
10 | EF12.6 | PC40 | 12.8 | 6.35 | 3.67 | 3.54 | 9.15 | 4.7 | 2.31 | 12.87 | 29.78 | 383 | 600 | 2.2 |
11 | EF12.6-6 | PC40 | 12.7 | 6.4 | 6.1 | 3.47 | 9.38 | 4.7 | 1.47 | 20.53 | 30.15 | 619.1 | 1100 | 3.5 |
12 | EE13 | PC40 | 13.2 | 6.4 | 5.85 | 2.7 | 10.4 | 4.85 | 1.899 | 16.64 | 31.608 | 526 | 850 | 2.77 |
13 | EE13-10 | PC40 | 13.3 | 6.4 | 9.8 | 3.38 | 10 | 4.7 | 0.993 | 32.9 | 30.709 | 1010.3 | 1100 | 5.5 |
14 | EE14-10 | PC40 | 14.2 | 6.4 | 9.8 | 3.38 | 10.65 | 4.7 | 0.94 | 33.08 | 31.38 | 1038.1 | 1100 | 5.6 |
15 | EE14-4.5-7(EE14) | PC40 | 14.2 | 4.5 | 7.36 | 3.41 | 10.7 | 3 | 1.01 | 23.89 | 24.26 | 579 | 1000 | 3.5 |
16 | EE13-5-10 | PC40 | 13.56 | 4.9 | 9.95 | 3.5 | 9.97 | 3 | 0.669 | 36.18 | 24.21 | 876.1 | 2000 | 4.8 |
17 | EE14 | PC40 | 14.2 | 6.4 | 5.85 | 2.7 | 11.4 | 4.85 | 1.95 | 16.68 | 32.602 | 543.8 | 850 | 3 |
18 | EE15.5-7.5-12 | PC40 | 15.5 | 7.6 | 11.96 | 3.58 | 12.05 | 5.7 | 0.85 | 43.12 | 36.97 | 1594 | 2000 | 8.3 |
19 | EE16 | PC40 | 16.2 | 7.4 | 4.7 | 3.8 | 12.1 | 5.4 | 1.94 | 18.6 | 36.11 | 671.6 | 1000 | 3.52 |
20 | EE17 | PC40 | 17.2 | 7.4 | 4.7 | 3.8 | 13.1 | 5.4 | 1.99 | 16.61 | 37.11 | 690.6 | 1000 | 3.8 |
21 | EE17-12 | PC40 | 17.2 | 7.65 | 12 | 3.6 | 13.8 | 5.8 | 0.913 | 42.71 | 39.01 | 1666.2 | 1800 | 8.7 |
22 | EF16 | PC40 | 16.1 | 8.1 | 4.6 | 4.55 | 11.7 | 6.2 | 1.955 | 19.57 | 38.275 | 749 | 1100 | 4.1 |
23 | EE16-6-5 | PC40 | 16 | 6.2 | 4.2 | 4.3 | 11.8 | 4.2 | 1.76 | 17.46 | 30.75 | 537 | 1000 | 3.2 |
24 | EE16-6-7 | PC40 | 16 | 5.9 | 7 | 4.5 | 11.8 | 3.9 | 0.998 | 29.46 | 29.4 | 866 | 1200 | 4.5 |
25 | EE16-7-7 | PC40 | 16.15 | 7.3 | 6.7 | 3.87 | 11.9 | 5.5 | 1.377 | 26.06 | 35.91 | 935 | 1200 | 5.2 |
26 | EE16-7-8 | PC40 | 16.15 | 7.3 | 8 | 3.87 | 11.9 | 5.5 | 1.14 | 26.49 | 36.49 | 1152.7 | 1300 | 6.2 |
27 | EE17-6.8-8 | PC40 | 17.1 | 6.9 | 8 | 4.03 | 13 | 4.95 | 1.11 | 31.33 | 34.83 | 1091 | 1600 | 5.9 |
28 | EE17-6.0-8 | PC40 | 17.1 | 6 | 8 | 4.03 | 13 | 4.05 | 0.98 | 31.92 | 31.92 | 1003 | 1600 | 5.9 |
29 | EE17-5.5-8 | PC40 | 17.1 | 5.5 | 8 | 4.03 | 13 | 3.55 | 0.92 | 31.95 | 29.41 | 939.8 | 1600 | 5.9 |
30 | EE17.2/7/7 | PC40 | 17.2 | 7.5 | 6.7 | 3.87 | 13 | 5.8 | 1.49 | 25.37 | 37.93 | 962.3 | 962.3 | 5.7 |
31 | EE16-8-4 | PC40 | 16 | 8 | 3.75 | 3.75 | 10.6 | 5.2 | 1.99 | 17.29 | 34.54 | 597 | 850 | 3.5 |
32 | EE16-10 | PC40 | 16.15 | 7.5 | 9.8 | 3.8 | 12 | 5.5 | 0.935 | 38.94 | 36.41 | 1418 | 1800 | 7.5 |
33 | EE16-6-10 EF15 | PC40 | 16 | 5.75 | 10 | 3.9 | 12.5 | 3.75 | 0.778 | 37.96 | 29.56 | 1122 | 1750 | 5.8 |
