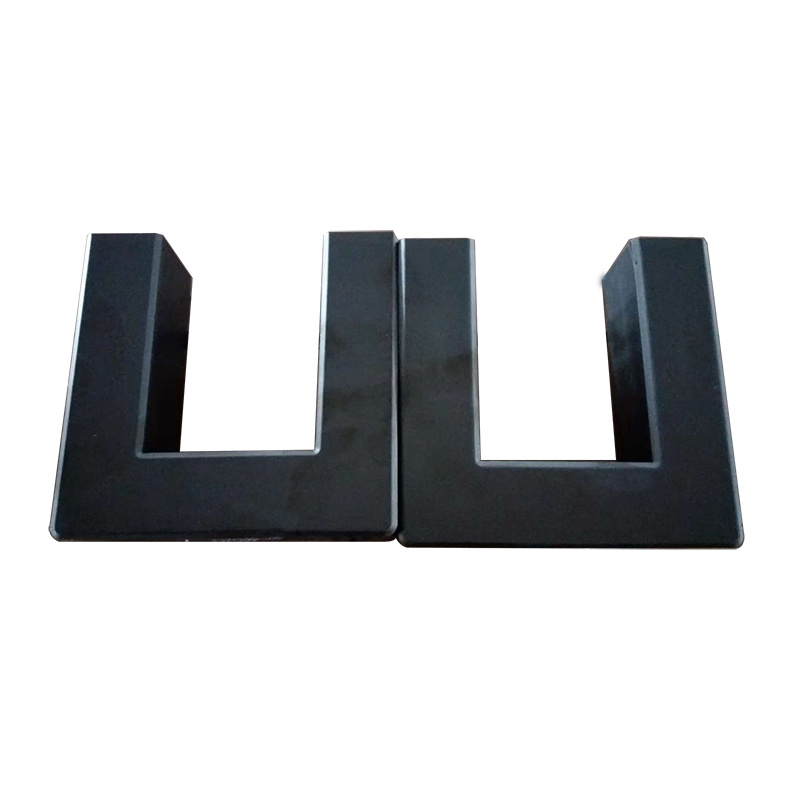

Hot Sale Ferrite Core for Transformer (UF 120-117)

Quantity:
  • UF 120-117
  • 85051190


Hot Sale Ferrite Core for Transformer (UF 120-117)
Hot Sale Ferrite Core for Transformer (UF 120-117)
Hot Sale Ferrite Core for Transformer (UF 120-117)

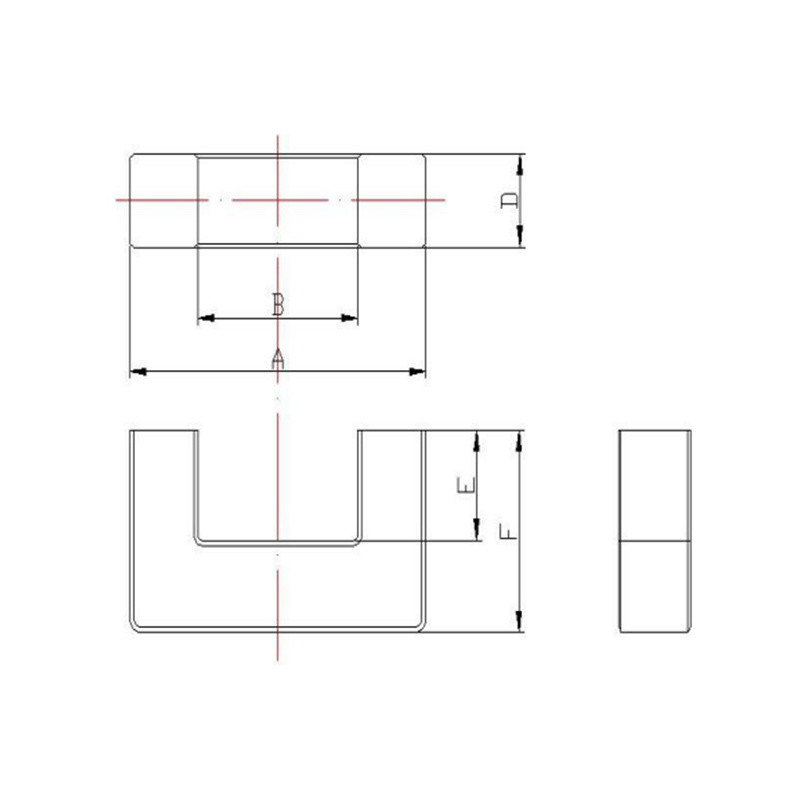

A=120.0±2.5mm
B=58.0mm
D=40.0±1.0mm
E=87.0+0.4/-1.0mm
F=117.0+0.4/-1.0mm

PARAMETETS
Core Factor C1 0.47 mm-1
Effective Length Le 560 mm
Effective Cross Area Ae 1184 mm2
Effective Volume Ve 663000 mm3
Apporx .Weight 3150 g/set


1, The high quality materials be used to make our products more stable.
2, According to customer's request, adjust the product size to make the product more convenient to install, improve the customer's production efficiency.
3, We have a wealth of product models, you can make it easier for you to buy.
