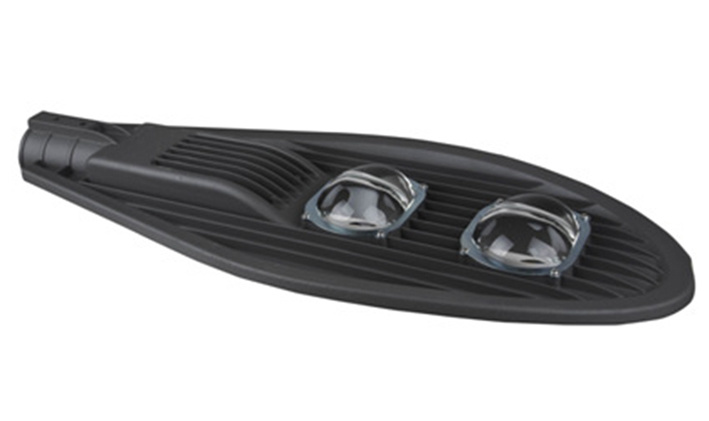

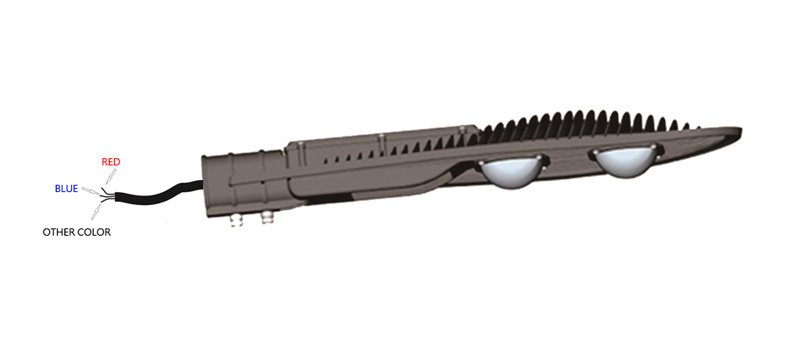

70% Energy Saving LED Street Light (90W)

Quantity:



Inquire Add to Basket

Model NO.:
90w led street light
Input Voltage:
110V-220V
With Light Source:
With Light Source
Specification:
4.7KGS/PC
Origin:
China

Product Description

LED COB Specification
1,With reasonable structure, beautiful appearance, resistance to heat and humidity, good sealing performance.
2,Light source efficiency exceeds 120lm/W, the luminous efficiency is high, the vision is vivid, flicker free, no glare.
3,Excellent heat dissipation design,with high thermal conductivity material, light source can be used continuously for 50000 hours, the use of life for more than 10 years, no need to change the light source.
4,All power supply with high quality components, the efficiency can be up to 90%, save energy as high as 70%.
5,The lamp is convenient to install and is stable and reliable.
6,Environmental protection and energy saving without pollution, high stability. Realize the true meaning of the green environmental protection lighting.
Electric performance parameters

NO.	ITEM	UNIT	DATA
1	Input voltage	V	AC220V
2	Frequency range	Hz	50-60
3	Rated power	W	90W +/- 5%
4	Power factor		≥0.95
5
6
7

Optical performance parameters

NO.	ITEM	UNIT	DATA
1	COB Luminous efficiency	lm/W	120(6000K~6200K)
2	The whole lamp rated luminous flux	lm	9500(6000K~6200K)
3	Illumination	lux
4	Color temperature	K	6000K~6200K
5	Color rendering index	RA	≥70
6	Light distribution curve		Non symmetric(Bat wing)
7	Whole street lamp light effect	Lm/W	105(6000K~6200K)

Other performance index

NO.	ITEM	UNIT	DATA
1	COBChip junction temperature(Tj)	ºC	60ºC±10%(Ta=25ºC)
2	Working temperature	ºC	-30ºC~ 50ºC
3	Working humidity	%	10-90
4	Storage temperature	ºC	-10ºC~85ºC
5	Service life (theoretical data)	Hrs	50,000Hrs
6	Protection level	IP	67
7	SIZE	mm	71528080mm
8	Weight (net weight)	Kg	4.7
9	Hole size	mm	/
10	COB QUANTITY	pcs	2
