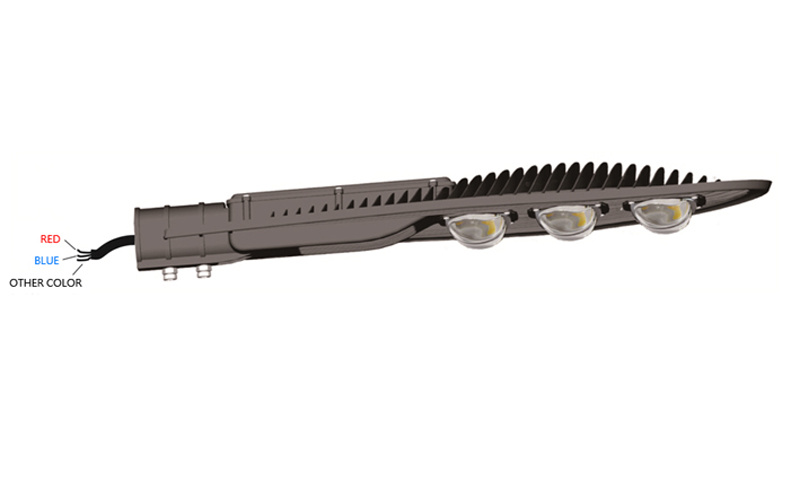

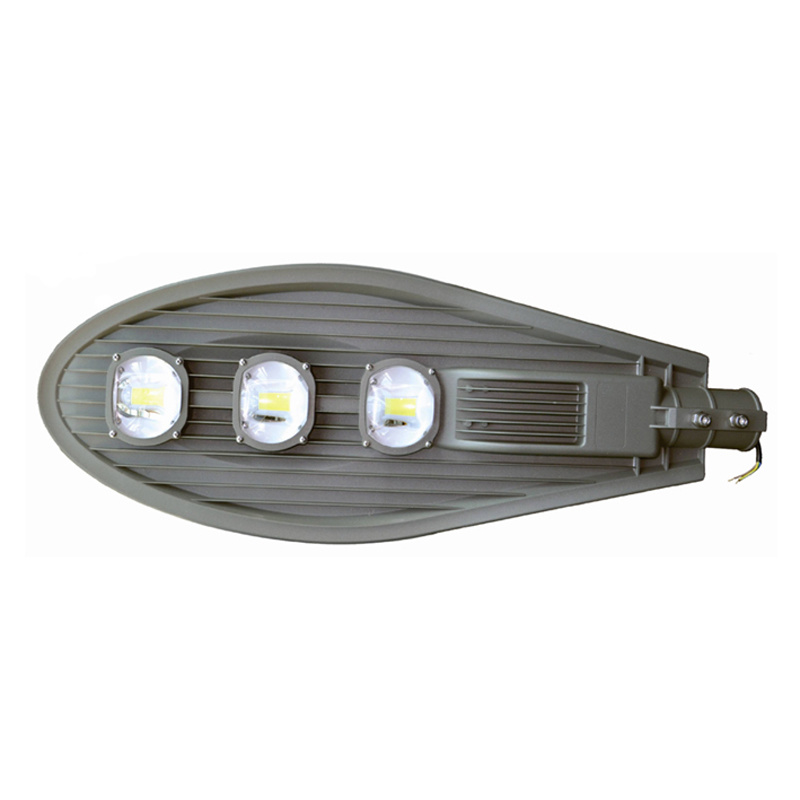

LED COB Specification
1, With reasonable structure, beautiful appearance, resistance to heat and humidity, good sealing performance.
2,Light source efficiency exceeds 120lm/W, the luminous efficiency is high, the vision is vivid, flicker free, no glare.
3,Excellent heat dissipation design,with high thermal conductivity material, light source can be used continuously for 50000 hours, the use of life for more than 10 years, no need to change the light source.
4,All power supply with high quality components, the efficiency can be up to 90%, save energy as high as 70%.
5,The lamp is convenient to install and is stable and reliable.
6Environmental protection and energy saving without pollution, high stability. Realize the true meaning of the green environmental protection lighting.
Electric performance parameters
NO. | ITEM | UNIT | DATA |
1 | Input voltage | V | AC220V |
2 | Frequency range | Hz | 50-60 |
3 | Rated power | W | 180W +/- 5% |
4 | Power factor | | ≥0.95 |
5 | | | |
6 | | | |
7 | | | |
Optical performance parameters
NO. | ITEM | UNIT | DATA |
1 | COB Luminous efficiency | lm/W | 120(6000K~6200K) |
2 | The whole lamp rated luminous flux | lm | 18900(6000K~6200K) |
3 | Illumination | lux | |
4 | Color temperature | K | 6000K~6200K |
5 | Color rendering index | RA | ≥70 |
6 | Light distribution curve | | Non symmetric(Bat wing) |
7 | Whole street lamp light effect | Lm/W | 105(6000K~6200K) |
| | | |
Other performance index
NO. | ITEM | UNIT | DATA |
1 | COBChip junction temperature(Tj) | ºC | 60ºC±10%(Ta=25ºC) |
2 | Working temperature | ºC | -30ºC~ 50ºC |
3 | Working humidity | % | 10-90 |
4 | Storage temperature | ºC | -10ºC~85ºC |
5 | Service life (theoretical data) | Hrs | 50,000Hrs |
6 | Protection level | IP | 67 |
7 | SIZE | mm | 880*340*120mm |
8 | Weight (net weight) | Kg | 5.5 |
9 | Hole size | mm | / |
10 | COB QUANTITY | pcs | 3 |
