You are here: Home » Products » LED Light » 70% Energy Saving LED Street Light (150W)

Product Detail

Share to:

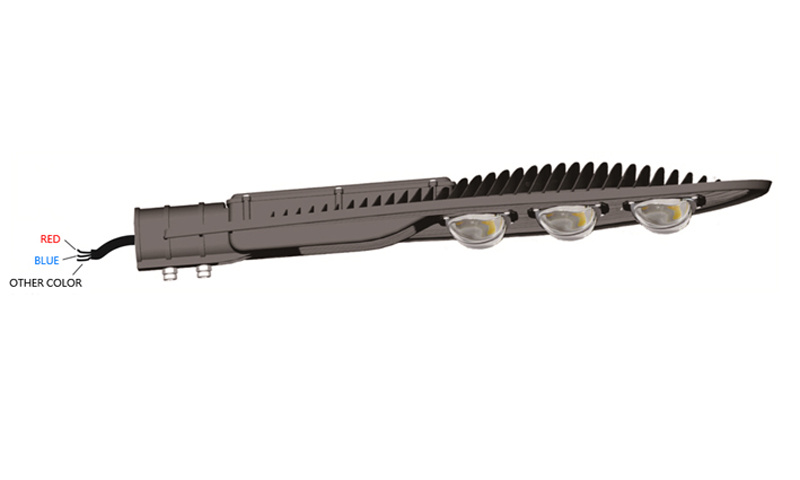

70% Energy Saving LED Street Light (150W)

Quantity:
  • 150w led street light
  • 220v
  • With Light Source
  • 5.5KGS/PC
  • China
70% Energy Saving LED Street Light (150W)
70% Energy Saving LED Street Light (150W)
LED COB Specification
l With reasonable structure, beautiful appearance, resistance to heat and humidity, good sealing performance.
l Light source efficiency exceeds 120lm/W, the luminous efficiency is high, the vision is vivid, flicker free, no glare.
l Excellent heat dissipation design,with high thermal conductivity material, light source can be used continuously for 50000 hours, the use of life for more than 10 years, no need to change the light source.
l All power supply with high quality components, the efficiency can be up to 90%, save energy as high as 70%.
l The lamp is convenient to install and is stable and reliable.
l Environmental protection and energy saving without pollution, high stability. Realize the true meaning of the green environmental protection lighting.
l ,Electric performance parameters
NO. ITEM UNIT DATA
1 Input voltage V AC220V
2 Frequency range Hz 50-60
3 Rated power W 150W +/- 5%
4 Power factor ≥0.95
5
6
7
l ,Optical performance parameters
NO. ITEM UNIT DATA
1 COB Luminous efficiency lm/W 120(6000K~6200K)
2 The whole lamp rated luminous flux lm 15800(6000K~6200K)
3 Illumination lux
4 Color temperature K 6000K~6200K
5 Color rendering index RA ≥70
6 Light distribution curve Non symmetric(Bat wing)
7 Whole street lamp light effect Lm/W 105(6000K~6200K)
l ,Other performance index
NO. ITEM UNIT DATA
1 COBChip junction temperature(Tj) ºC 60ºC±10%(Ta=25ºC)
2 Working temperature ºC -30ºC~ 50ºC
3 Working humidity % 10-90
4 Storage temperature ºC -10ºC~85ºC
5 Service life (theoretical data) Hrs 50,000Hrs
6 Protection level IP 67
7 SIZE mm 880*340*120mm
8 Weight (net weight) Kg 5.5
9 Hole size mm /
10 COB QUANTITY pcs 3
