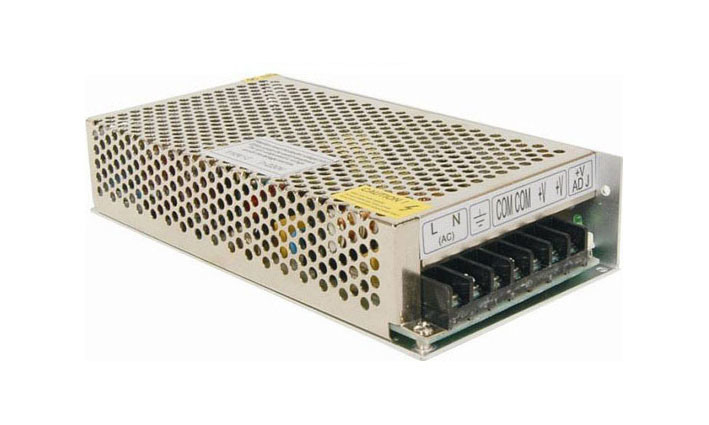

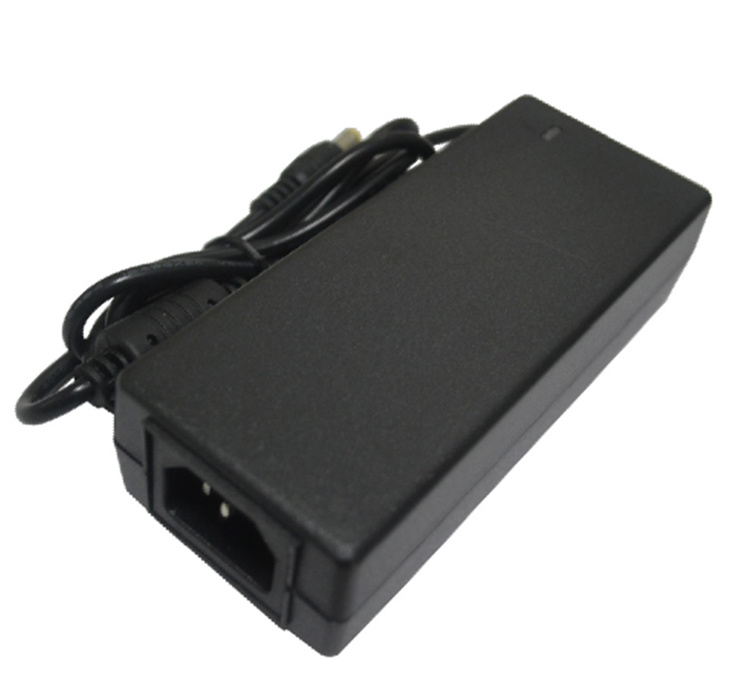

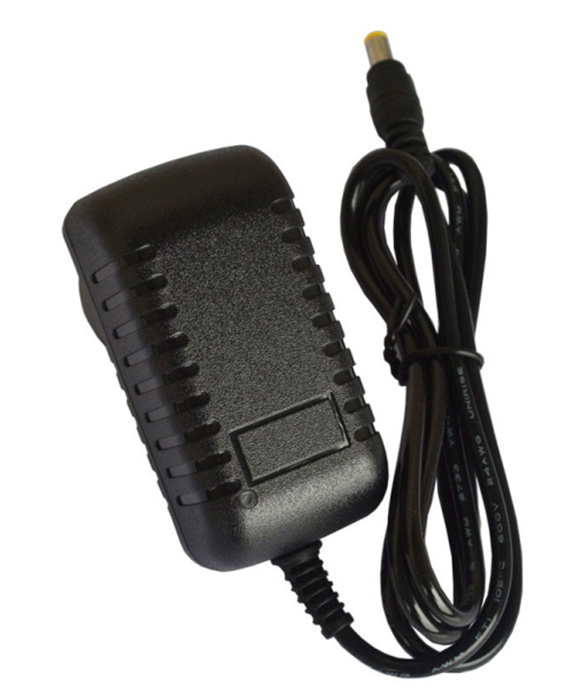

High Quality DC Power Supply for LED, Camera and Notebook

Quantity:

High Quality DC Power Supply for LED, Camera and Notebook
High Quality DC Power Supply for LED, Camera and Notebook
High Quality DC Power Supply for LED, Camera and Notebook
ADAPTER, SWITCH POWER
Output Power: 8-60W
Input Voltage: AC100-260V
Input Current: ≤ 300mA
Input Frequency (some): 60Hz
Output Voltage: 4V - 12V ± 2%
Output Current: 0-5A
Working Temperature: - 20oC--50oC -
Relative Humidity: ≤ 90%
Efficiency: ≥ 60%
Ripple & Noise: ≤ 1% (Vout * 1% MAX)
Instruction: This model have OVP, OCP, short circuit and over temperature protection etc.
Cerficates of CCC, CE, UL etc.
Our company is a professional manufactory of REMOTE CONTROL, UNIVERSAL REMOTE CONTROL, SATELLITE RECEIVER REMOTE CONTROL, DVD REMOTE CONTROL.

We have a professional supply team for Integrated Circuits (IC), FERRITE MAGNET(FERRITE CORE), TUNER(TV TUNER), SPEAKERS(CAR SPEAKERS), LASER LENS(PICK-UP LENS)...And other electronic partes.

We regardswe the quality as our company's life.

Our goal: To do everything perfect.

MODEL OUT STABILITY NOISE EFFICIENCY
15W S-15-5 5V, 0-3A ± 2% 50mV 65%
S-15-12 12V, 0-1.3A ± 1% 50mV 68%
S-15-25 24V, 0-0.7A ± 1% 100mV 72%





LS-15-5 5V, 0-3A ± 2% 50mV 76%






25W S-25-5 5V, 0-5A ± 2% 50mV 72%
S-25-12 12V, 0.2.1A ± 1% 100mV 76%
S-25-15 15V, 0-1.7A ± 1% 100mV 77%
S-25-24 24V, 0-1.1A ± 1% 100mV 80%





NES-25-5 5V, 0-5A ± 2% 80mV 77%
NES-25-12 12V, 0-2.1A ± 1% 120mV 81%
NES-25-15 15V, 0-1.7A ± 1% 150mV 83%
NES-25-24 24V, 0-1.1A ± 1% 200mV 85%
NES-25-48 48V, 0-0.57A ± 1% 240mV 86%






35W S-35-5 5V, 0-7A ± 2% 75mV 70%
S-35-12 12V, 0-3A ± 1% 100mV 76%
S-35-15 15V, 0-2.4A ± 1% 100mV 78%
S-35-24 24V, 0-1.5A ± 1% 100mV 78%





NES-35-5 5V, 0-7A ± 2% 80mV 77%
NES-35-12 12V, 0-3A ± 1% 120mV 81%
NES-35-15 15V, 0-2.4A ± 1% 150mV 83%
NES-35-24 24V, 0-1.5A ± 1% 200mV 85%
NES-35-48 48V, 0-0.8A ± 1% 240mV 86%






50W S-50-5 5V, 0-10A ± 2% 75mV 71%
S-50-12 12V, 0-4.2A ± 1% 100mV 78%
S-50-15 15V, 0-3.4A ± 1% 100mV 78%
S-50-24 24V, 0-2.1A ± 1% 100mV 82%






55W S-55-5 5V, 0-11A ± 2% 80mV 72%
S-55-12 12V, 0-4.6A ± 1% 100mV 77%
S-55-15 15V, 0-3.7A ± 1% 100mV 79%
S-55-24 24V, 0-2.3A ± 1% 100mV 80%
S-55-48 48V, 0-1.2A ± 1% 150mV 81%






60W S-60-5 5V, 0-12A ± 2% 120mV 73%
S-60-12 12V, 0-5A ± 1% 120mV 76%
S-60-15 15V, 0-4A ± 1% 150mV 77%
S-60-24 24V, 0-2.5A ± 1% 150mV 79%






75W S-75-5 5V, 0-15A ± 2% 80mV 77%
S-75-12 12V, 0-6.2A ± 1% 120mV 82%
S-75-15 15V, 0-5A ± 1% 150mV 83%
S-75-24 24V, 0-3.2A ± 1% 200mV 86%
S-75-48 48V, 0-1.6A ± 1% 240mV 87%






100W S-100-5 5V, 0-20A ± 2% 100mV 78%
S-100-12 12V, 0-8.5A ± 1% 100mV 81%
S-100-15 15V, 0-4.5A ± 1% 100mV 84%
S-100-24 24V, 0-2.0A ± 1% 100mV 84%





S-100F-5 5V, 0-20A ± 2% 100mV 76%
S-100F-7.5 7.5V, 0-13.5A ± 1% 125mV 78%
S-100F-12 12V, 0-8.5A ± 1% 125mV 80%
S-100F-15 15V, 0-6.7A ± 1% 125mV 81%
S-100F-24 24V, 0-4.5A ± 1% 150mV 83%
S-100F-48 48V, 0-2.2A ± 1% 150mV 84%






120W S-120-5 5V, 0-20A ± 2% 75mV 78%
S-120-12 12V, 0-9A ± 1% 75mV 82%
S-120-15 15V, 0-7A ± 1% 100mV 82%
S-120-24 24V, 0-5A ± 1% 100mV 83%
S-120-48 48V, 0-2.2A ± 1% 150mV 84%






145W S-145-5 5V, 0-25A ± 2% 100mV 78%
S-145-7.5 7.5V, 0-18A ± 1% 120mV 80%
S-145-12 12V, 0-12A ± 1% 120mV 80%
S-145-15 15V, 0-9.6A ± 1% 120mV 81%
S-145-24 24V, 0-6A ± 1% 150mV 83%
S-145-48 48V, 0-3A ± 1% 240mV 83.5%






150W S-150-5 5V, 0-30A ± 2% 150mV 78%
S-150-7.5 7.5V, 0-20A ± 1% 150mV 80%
S-150-9 9V, 0-16.7A ± 1% 180mV 80%
S-150-12 12V, 0-12.5A ± 1% 180mV 82%
S-150-13.5 13.5V, 0-11.2A ± 1% 180mV 83%
S-150-15 15V, 0-10A ± 1% 180mV 84.0%
S-150-24 24V, 0-6.5A ± 1% 240mV 85.0%
S-150-27 27V, 0-5.6A ± 1% 240mV 86.0%
S-150-48 48V, 0-3.2A ± 1% 240mV 87.0%







AD-155B 27.6V, 0-5.5A ± 1% 150mV 84%

27.1V, 0-0.5A






200W S-200-5 5V, 0-40A ± 0.5% 150mV 78%
S-200-12 12V, 0-16.7A ± 0.5% 150mV 80%
S-200-24 24V, 0-8.3A ± 0.5% 120mV 83%
S-200-48 48V, 0-4.2A ± 0.5% 100mV 86%






201W S-201-5 5V, 0-40A ± 2% 150mV 74%
S-201-7.5 7.5V, 0-26.5A ± 2% 150mV 79%
S-201-12 12V, 0-16.5A ± 1% 150mV 80%
S-201-13.5 13.5V, 0-14.7A ± 1% 150mV 80%
S-201-15 15V, 0-13A ± 1% 150mV 81%
S-201-24 24V, 0-8.3A ± 1% 150mV 83.0%
S-201-27 27V, 0-7.4A ± 1% 200mV 83.0%
S-201-48 48V, 0-4.2A ± 1% 200mV 84.0%






240W S-240-5 5V, 0-40A ± 2% 150mV 78%
S-240-7.5 7.5V, 0-30A ± 2% 200mV 80%
S-240-12 12V, 0-18A ± 1% 150mV 82%
S-240-15 15V, 0-15A ± 1% 150mV 83%
S-240-24 24V, 0-10A ± 1% 180mV 84%
S-240-30 30V, 0-8A ± 1% 180mV 85%
S-240-48 48V, 0-5A ± 1% 240mV 87%






250W S-250-5 5V, 0-40A ± 0.5% 100mV 78%
S-250-7.5 7.5V, 0-26.5A ± 0.5% 100mV 79%
S-250-9 9V, 0-22A ± 0.5% 100mV 80%
S-250-12 12V, 0-16.7A ± 0.5% 100mV 82%
S-250-24 24V, 0-10A ± 0.5% 120mV 83%
S-250-48 48V, 0-5A ± 0.5% 150mV 86%






300W S-300-5 5V, 0-60A ± 0.5% 100mV 76%
S-300-12 12V, 0-25A ± 0.5% 120mV 83%
S-300-24 24V, 0-12.5A ± 0.5% 120mV 85%
S-300-48 48V, 0-6.3A ± 0.5% 150mV 86%






320W S-320-5 5V, 0-50A ± 2% 150mV 77%
S-320-7.5 7.5V, 0-36A ± 2% 150mV 80%
S-320-12 12V, 0-25A ± 1% 150mV 82%
S-320-13.5 13.5V, 0-22A ± 1% 150mV 83%
S-320-15 15V, 0-20A ± 1% 150mV 84%
S-320-24 24V, 0-12.5A ± 1% 150mV 86%
S-320-27 27V, 0-11A ± 1% 200mV 86%
S-320-48 48V, 0-6.5A ± 1% 240mV 87%






320W S-320-5 5V, 0-60A ± 2% 150mV 79%
S-320-7.5 7.5V, 0-40A ± 2% 150mV 83%
S-320-12 12V, 0-25A ± 1% 150mV 86%
S-320-13.5 13.5V, 0-22A ± 1% 150mV 86%
S-320-15 15V, 0-20A ± 1% 150mV 86%
S-320-24 24V, 0-13.5A ± 1% 150mV 87%
S-320-27 27V, 0-11.7A ± 1% 200mV 88%
S-320-48 48V, 0-6.7A ± 1% 240mV 89%






350W S-350-5 5V, 0-50A ± 2% 150mV 73%
S-350-7.5 7.5V, 0-40A ± 2% 150mV 76%
S-350-12 12V, 0-29A ± 1% 150mV 74%
S-350-13.5 13.5V, 0-25.8A ± 1% 150mV 79%
S-350-15 15V, 0-23.2A ± 1% 150mV 78%
S-350-24 24V, 0-14.6A ± 1% 150mV 81%
S-350-27 27V, 0-13A ± 1% 200mV 82%
S-350-48 48V, 0-7.3A ± 1% 240mV 83%






500W S-500-12 5V, 0-40A ± 1% 240mV 84%
S-500-13.5 7.5V, 0-36A ± 1% 240mV 84%
S-500-15 9V, 0-32A ± 1% 240mV 83%
S-500-24 12V, 0-20A ± 1% 240mV 86%
S-500-27 24V, 0-18A ± 1% 240mV 87%
S-500-48 48V, 0-10A ± 1% 240mV 87%
